Problem Chart (M/T)

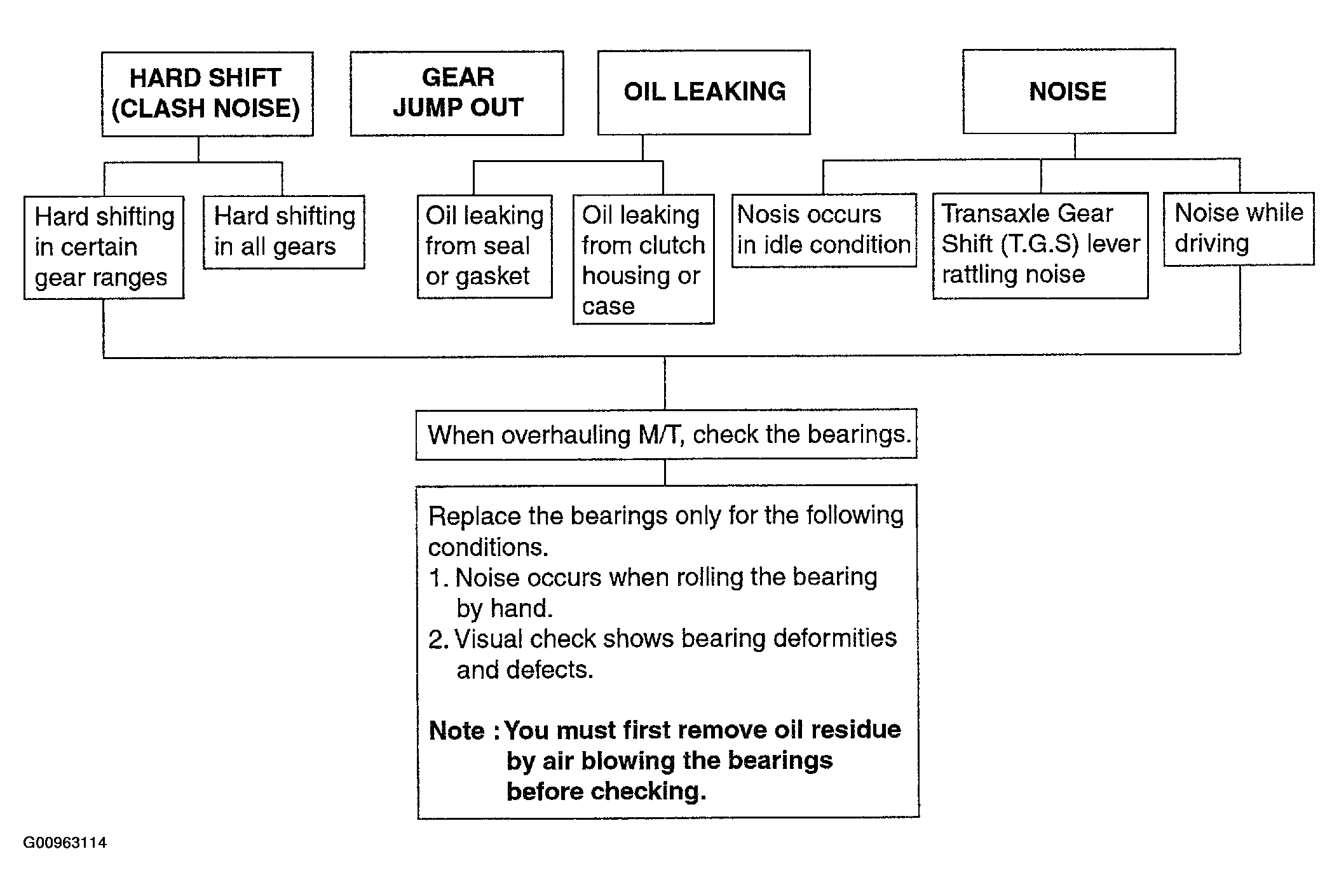

Fig 1: Symptom Overview Flow Chart
G00963114Courtesy of HYUNDAI MOTOR CO.

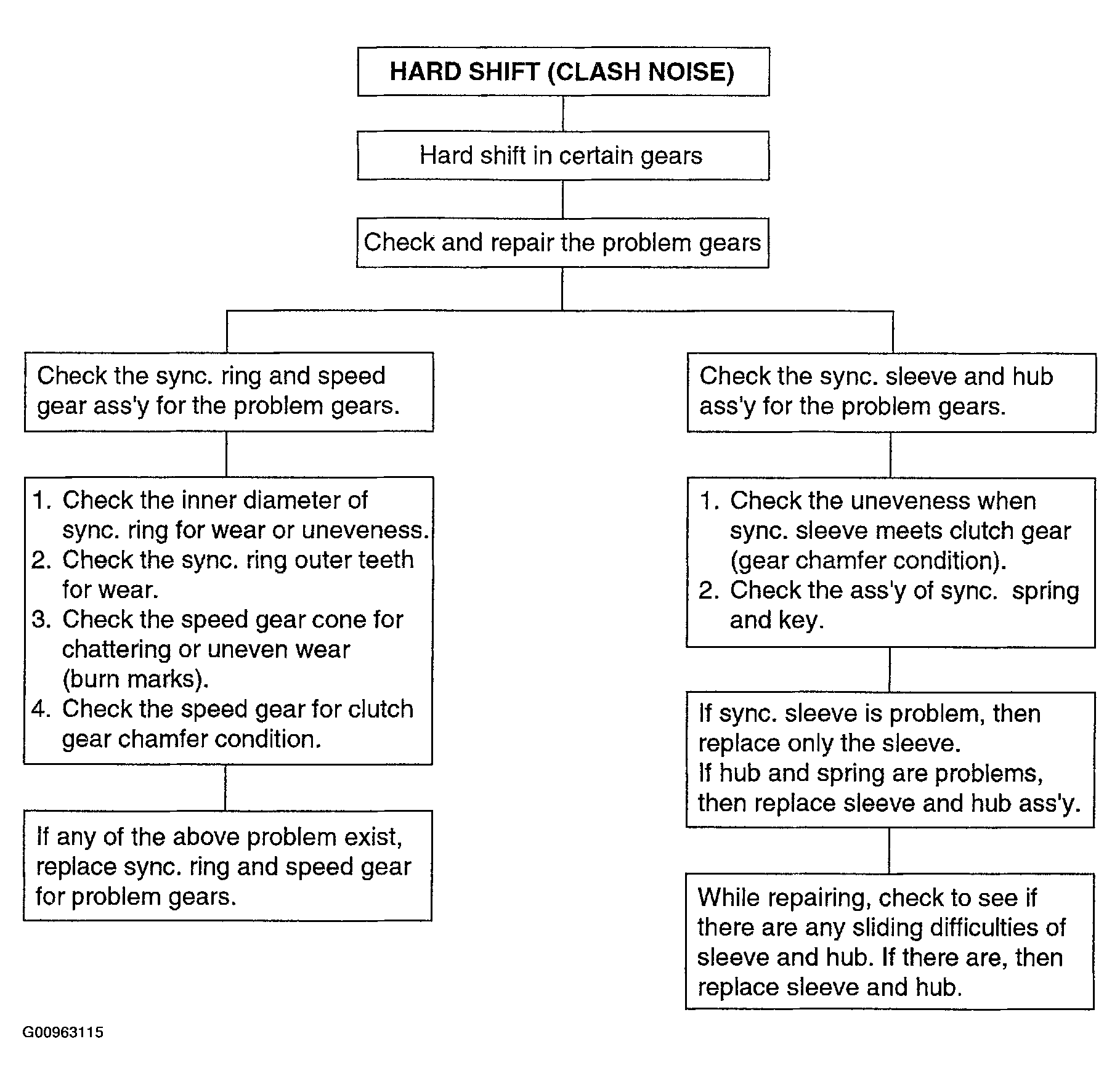

Fig 2: Hard Shift (Clash Noise) Flow Chart
G00963115Courtesy of HYUNDAI MOTOR CO.

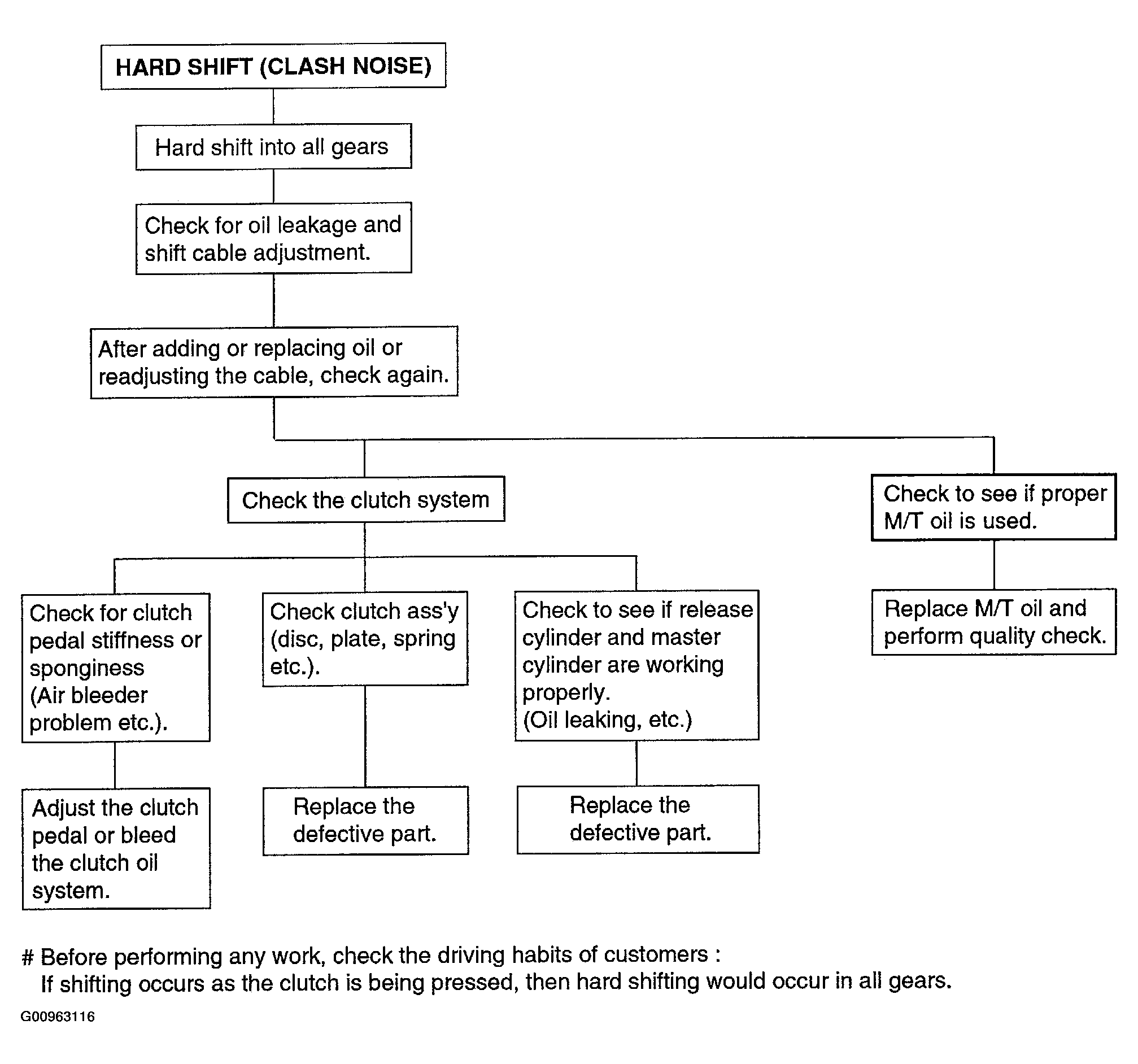

Fig 3: Hard Shift (Clash Noise) Flow Chart
G00963116Courtesy of HYUNDAI MOTOR CO.

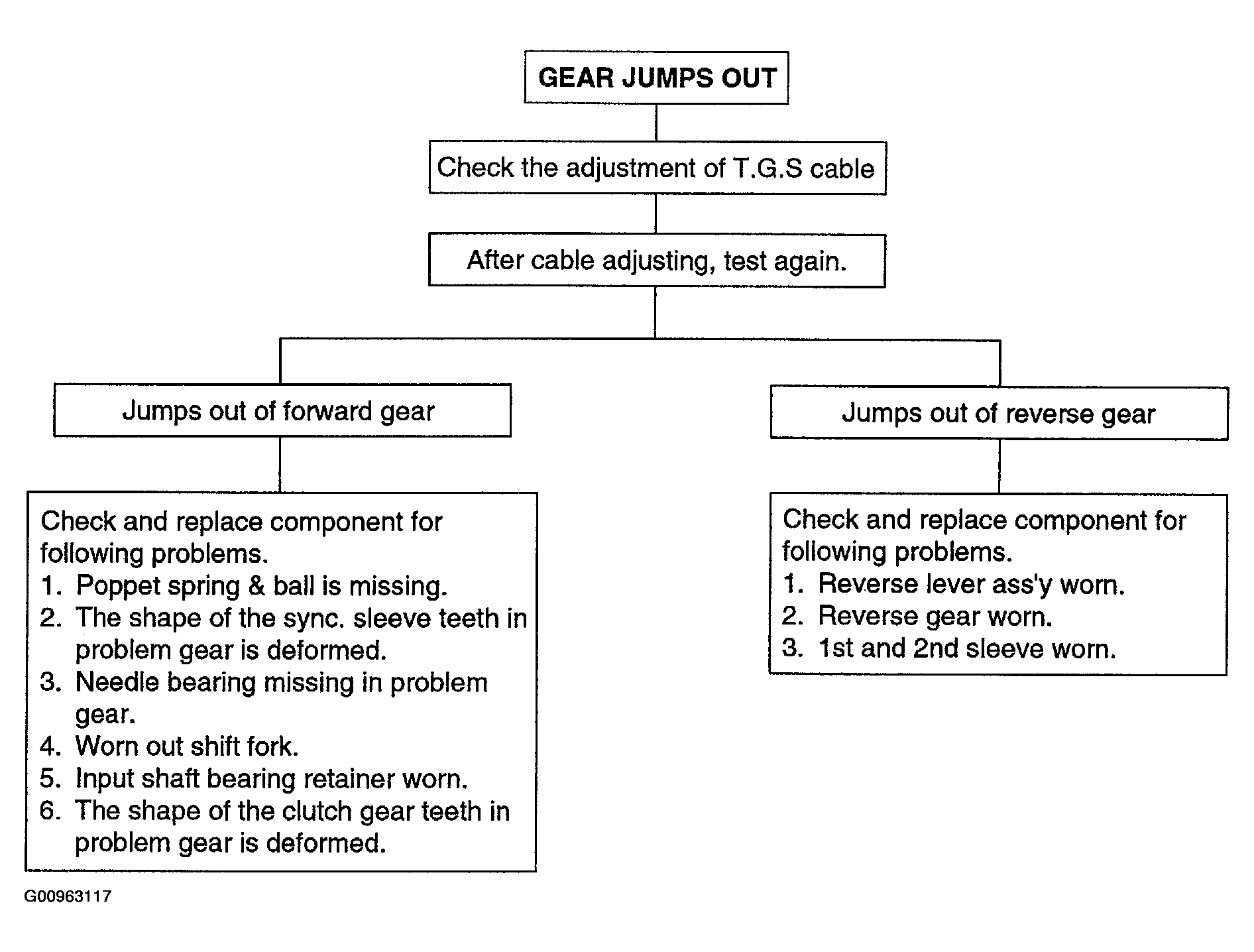

Fig 4: Jumps Out Of Gear Flow Chart
G00963117Courtesy of HYUNDAI MOTOR CO.

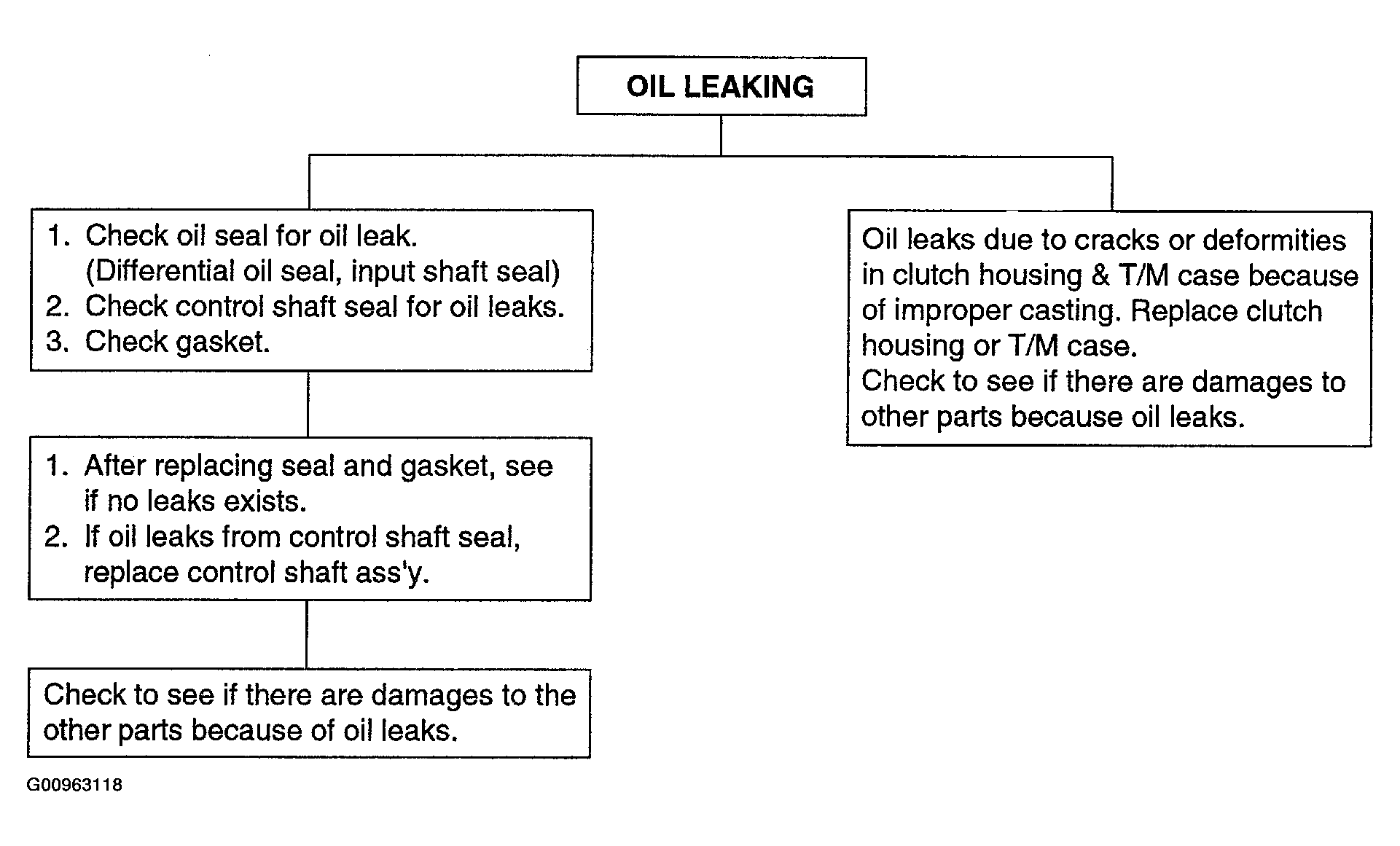

Fig 5: Oil Leaking Flow Chart
G00963118Courtesy of HYUNDAI MOTOR CO.

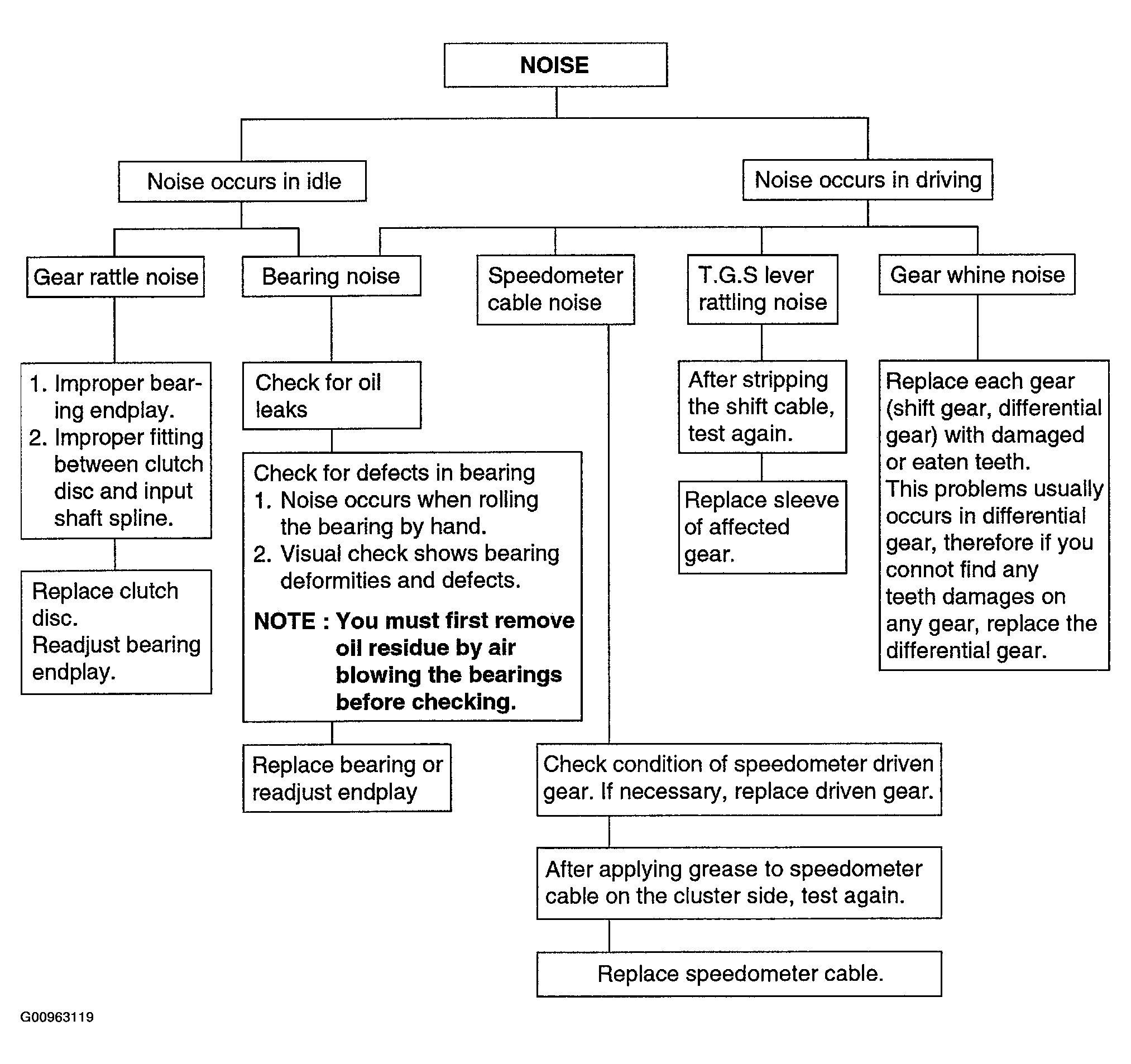

Fig 6: Noise Flow Chart
G00963119Courtesy of HYUNDAI MOTOR CO.
