Key Lock Assembly

  1. If it is necessary to remove the key lock assembly, use a punch to make a groove on the head of the special bolt, and then use a screwdriver to remove the key lock assembly mounting bracket.

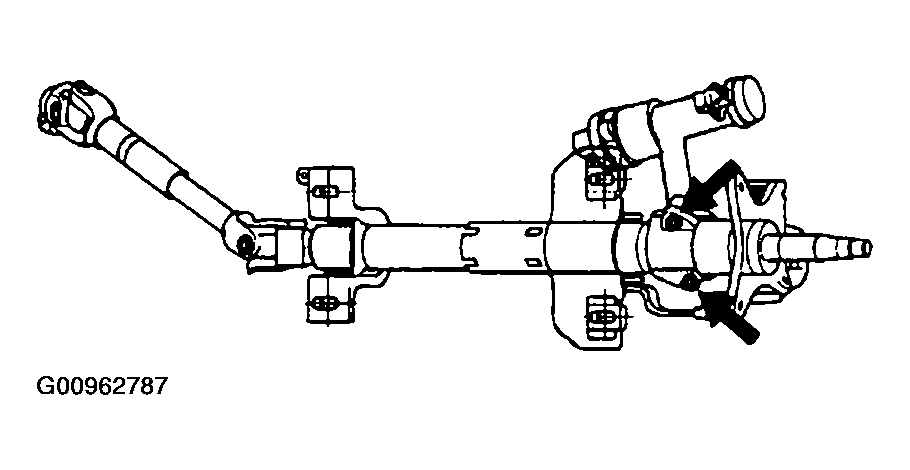

    Fig 1: Identifying Key Lock Assembly Mounting Bracket Bolts
    G00962787Courtesy of HYUNDAI MOTOR CO.
  2. Disassemble the key lock assembly from the steering column and shaft assembly.

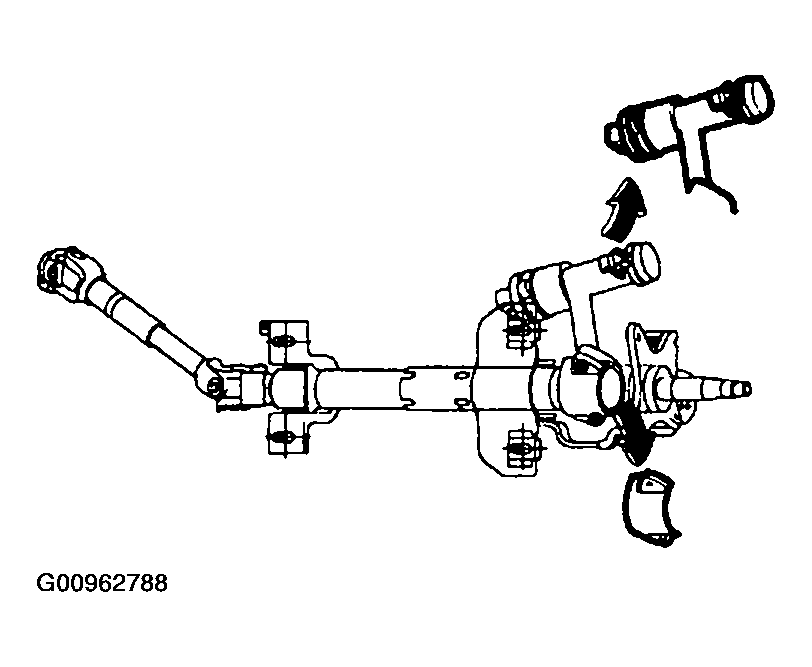

    Fig 2: Removing Key Lock Assembly
    G00962788Courtesy of HYUNDAI MOTOR CO.
  3. Reassembly is the reverse of disassembly.
