Power Steering Gear Box: Installation

  1. Push in the power steering gear box assembly on the right side of the vehicle.
  2. Install the dust cover mounting plate.
  3. Connect the dust cover to its mounting plate with a new strap.
  4. Connect the steering gear box assembly to the steering column and shaft assembly.

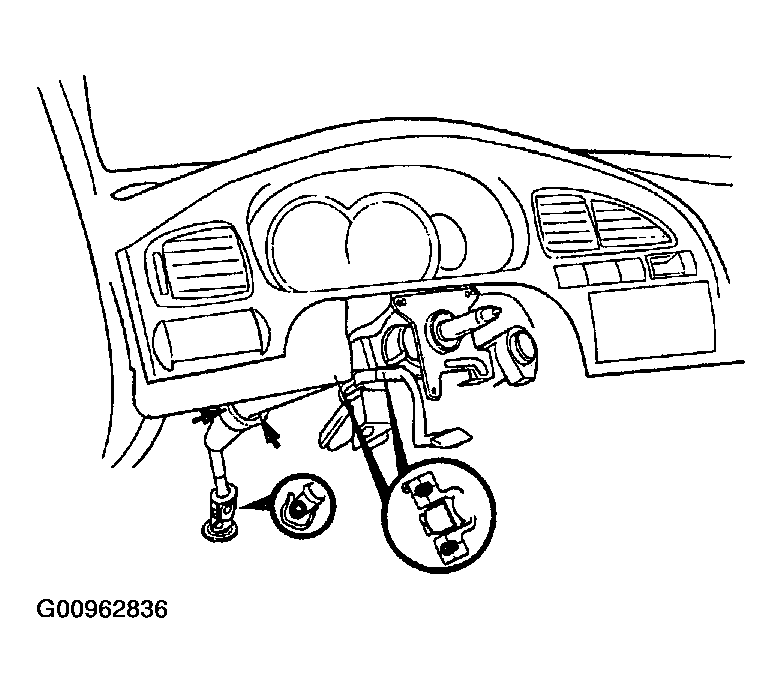

    Fig 1: Connecting Steering Gear Box To Column Shaft
    G00962836Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. After installation, air bleed the system.
