Inspection Procedure 14

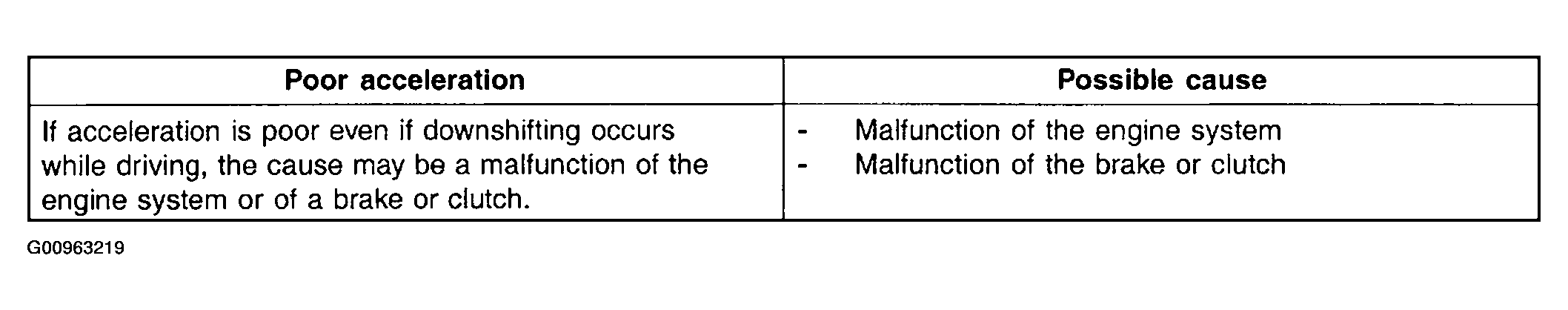

Fig 1: Poor Acceleration Possible Causes Table

G00963219

Courtesy of HYUNDAI MOTOR CO.

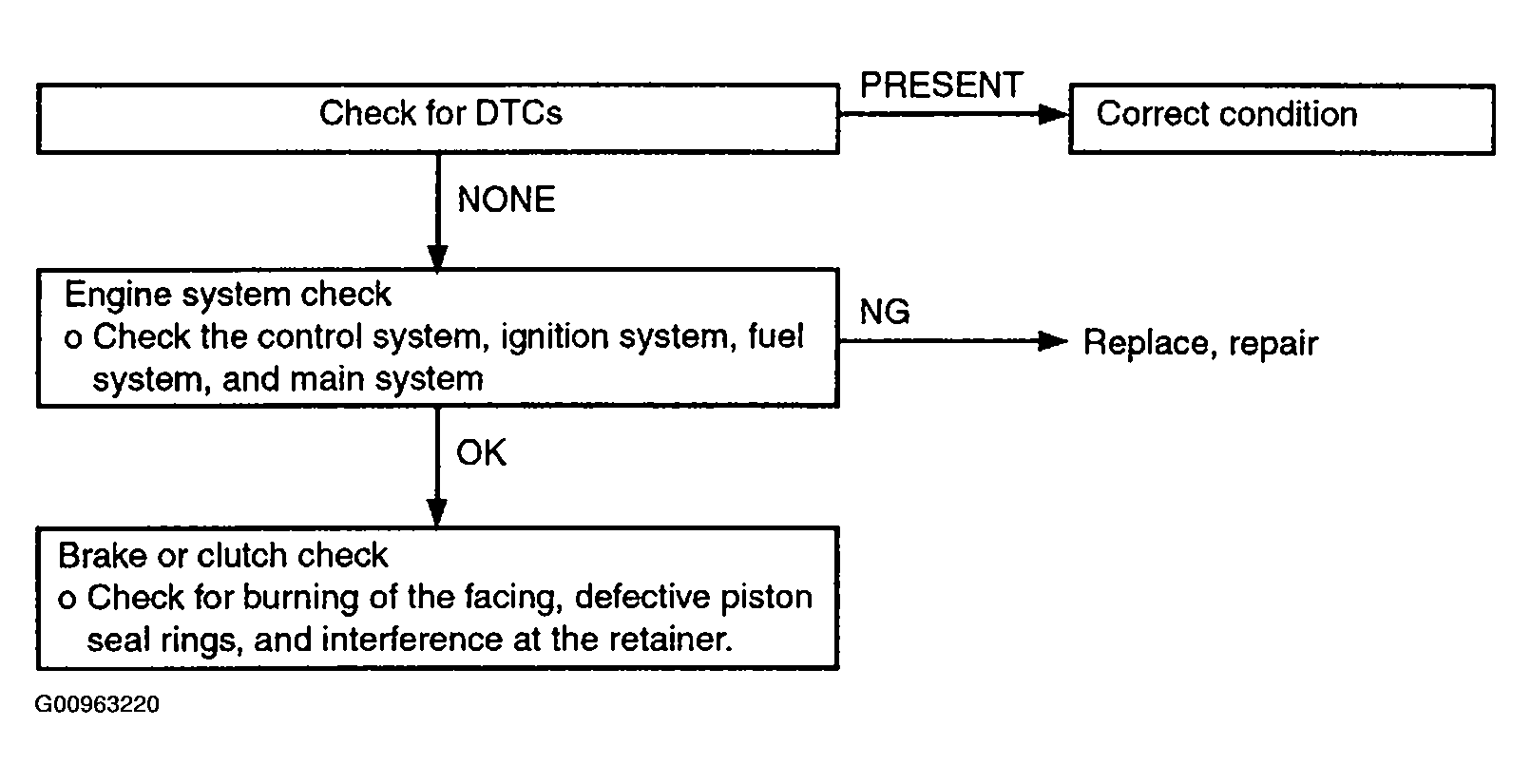

Fig 2: Poor Acceleration Diagnostic Flow Chart

G00963220

Courtesy of HYUNDAI MOTOR CO.
