Component Inspection

  1. Ignition "OFF".
  2. Disconnect OTS connector.
  3. Measure resistance between terminals 1 and 2 of OTS connector (Component side).

    Specification

    RESISTANCE REFERENCE CHART

    Temp. (°C) Temp. (°F) OTS Resistance (kΩ)
    20 68 2.16~2.78
    40 104 0.99~1.21
    80 176 0.26~0.32

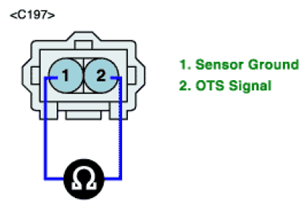

    Fig 1: Measuring Resistance Between Terminals 1 And 2 Of OTS Connector (Component Side)
    G07331092
  4. Is sensor switching properly?

    YES

    • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check OTS for contamination, deterioration, or damage. Substitute with a known-good OTS and check for proper operation. If the problem is corrected, replace OTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
