Wiper/Washer Switch Connector End View (Front)

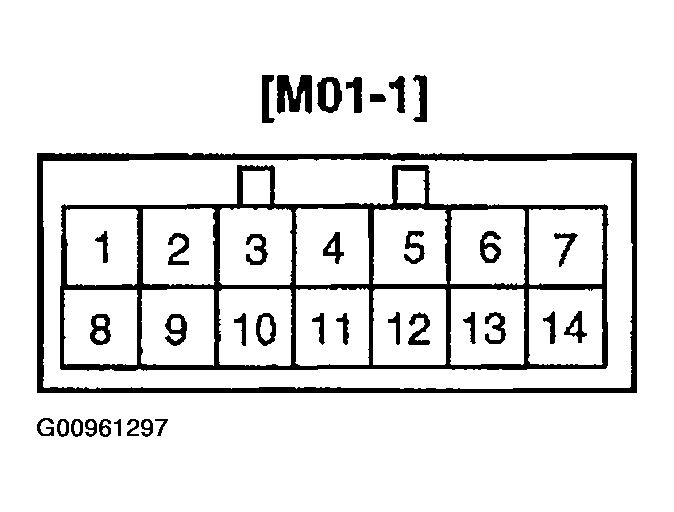

Fig 1: Wiper/Washer Switch Connector End View (Front)

G00961297

Courtesy of HYUNDAI MOTOR AMERICA
