A/C-Heater Control Unit End Views (Manual)

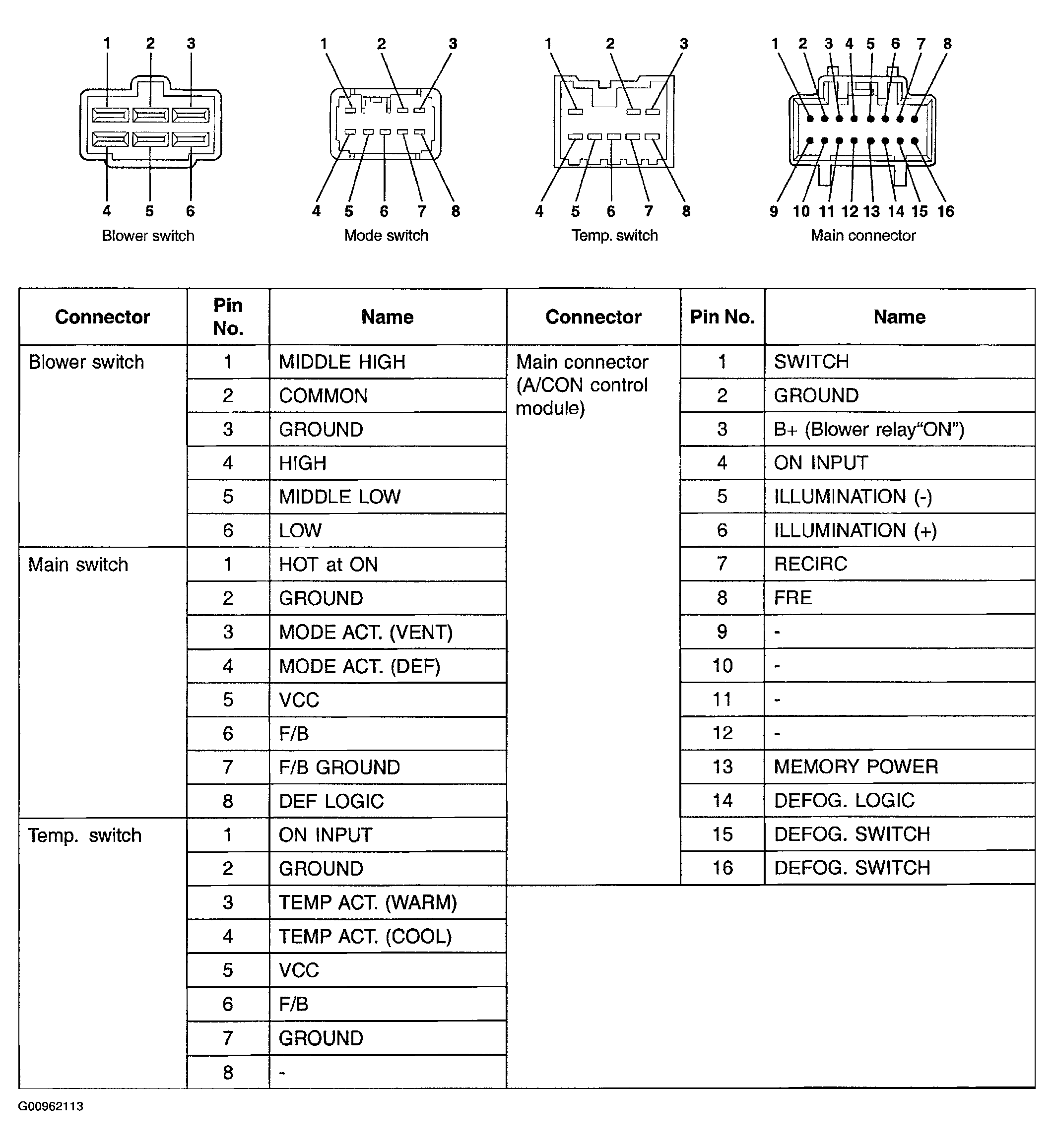

Fig 1: A/C-Heater Control Unit End Views (Manual)

G00962113

Courtesy of HYUNDAI MOTOR AMERICA
