A/C-Heater Control Unit End Views (Automatic)

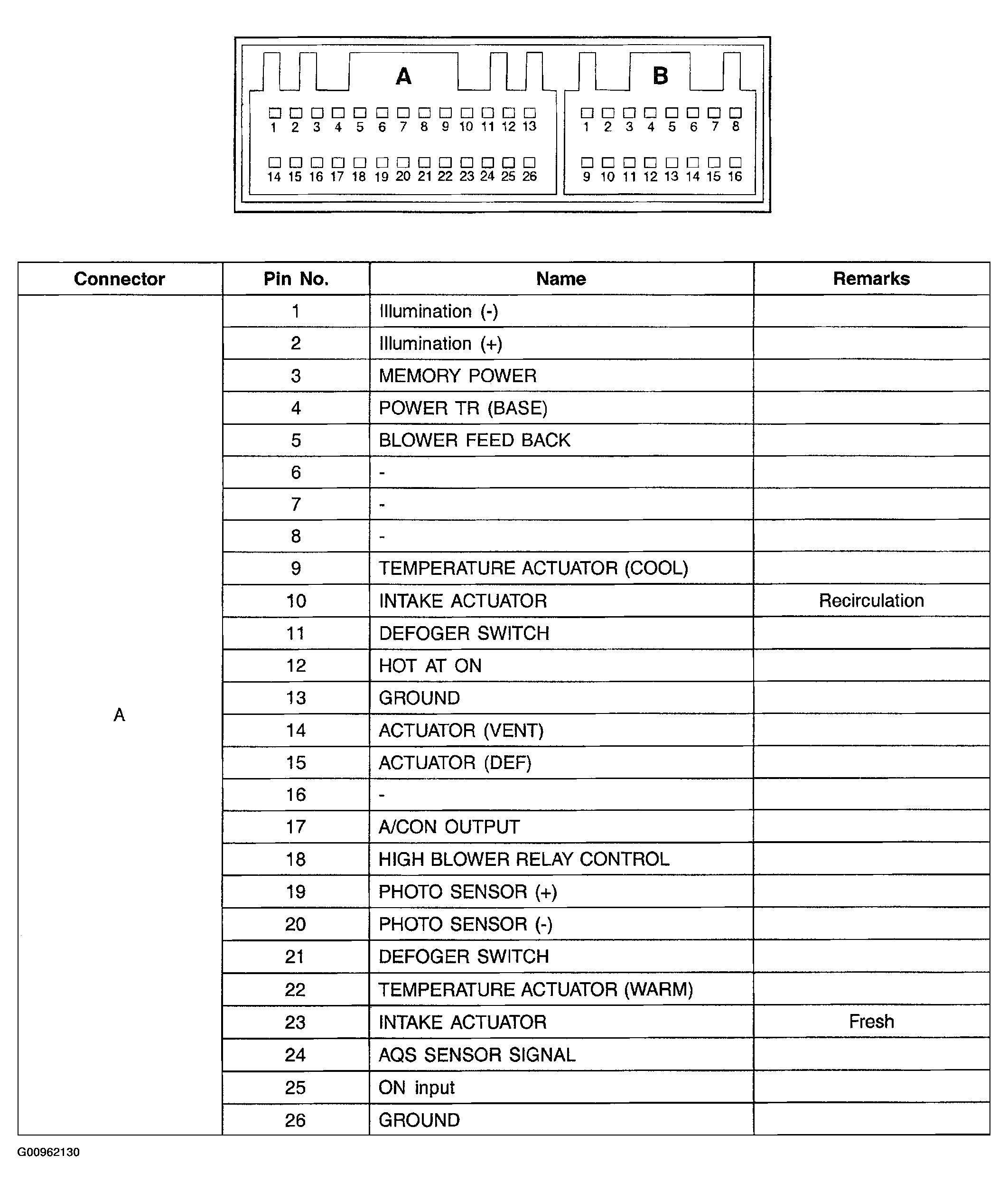

Fig 1: A/C-Heater Control Unit End Views (Automatic)

G00962130

Courtesy of HYUNDAI MOTOR AMERICA
