DTC P0725: Crankshaft Position Sensor System

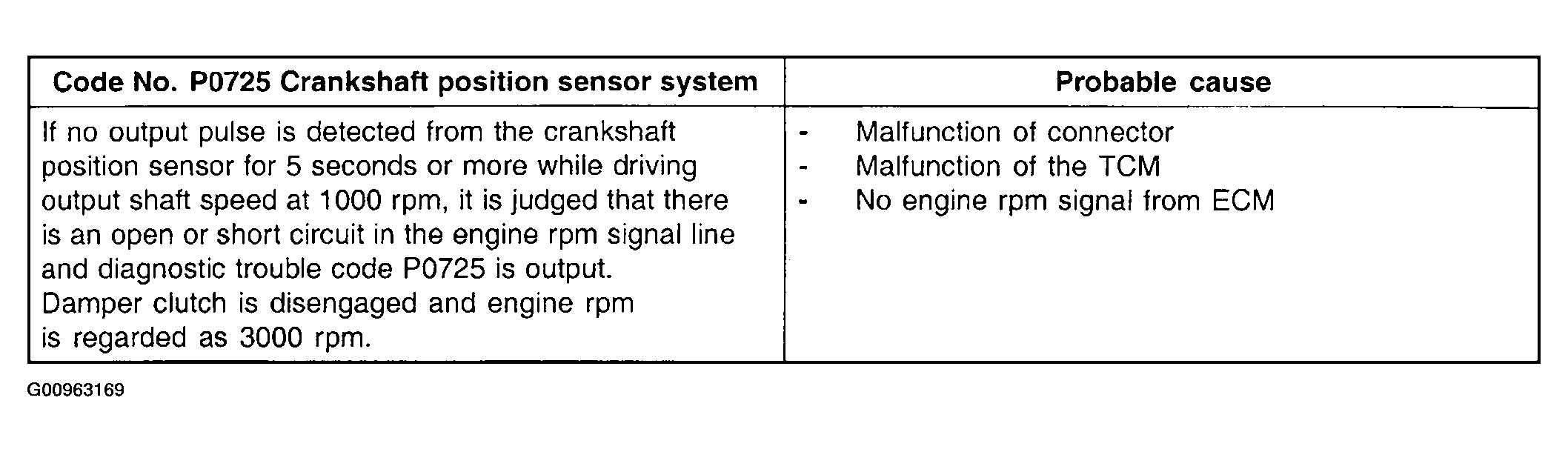

Fig 1: DTC P0725 Detecting Conditions & Probable Causes

G00963169

Courtesy of HYUNDAI MOTOR CO.

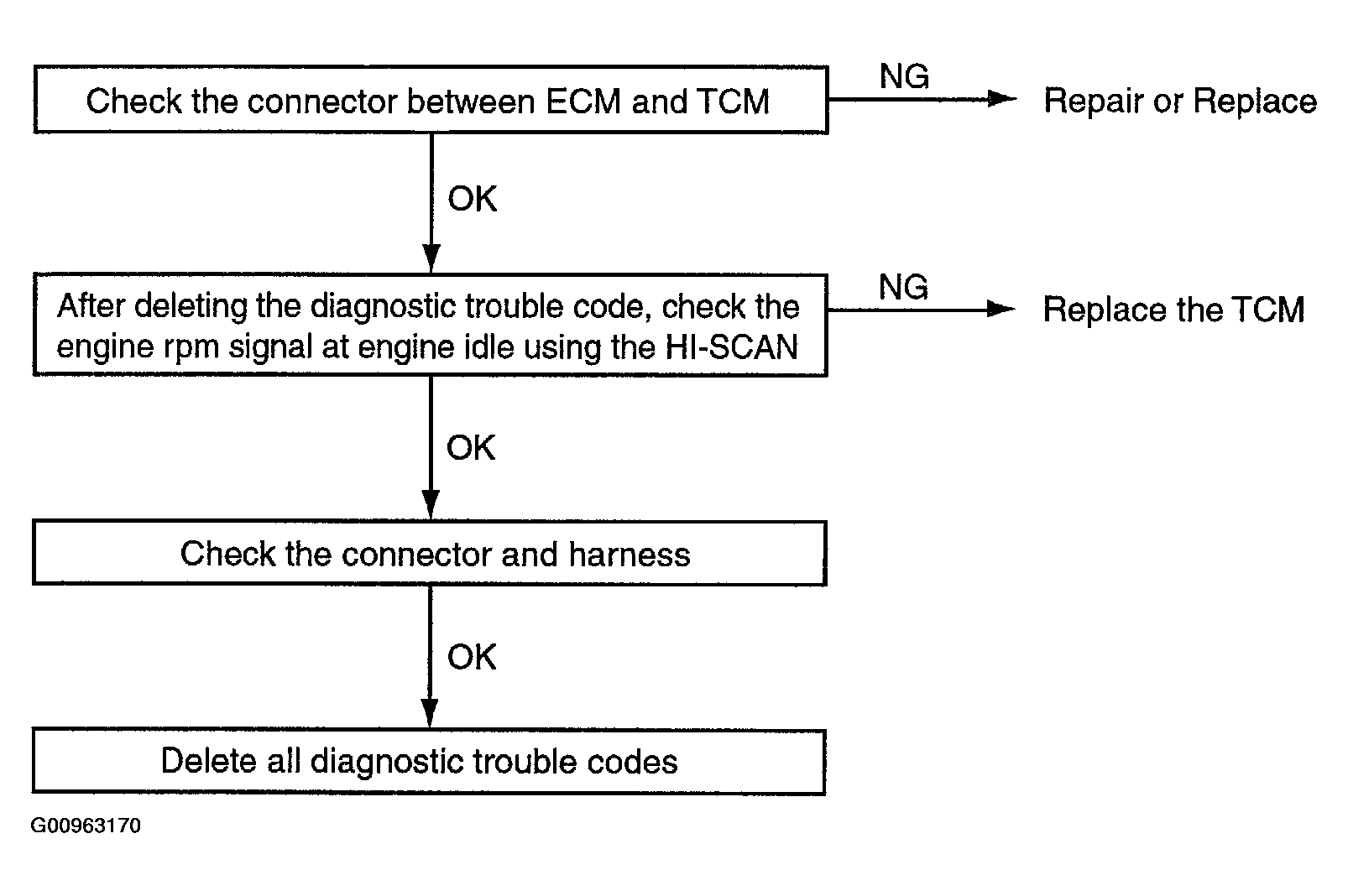

Fig 2: DTC P0725 Diagnostic Flow Chart

G00963170

Courtesy of HYUNDAI MOTOR CO.
