Automatic Transaxle Hydraulic Circuit: Reverse

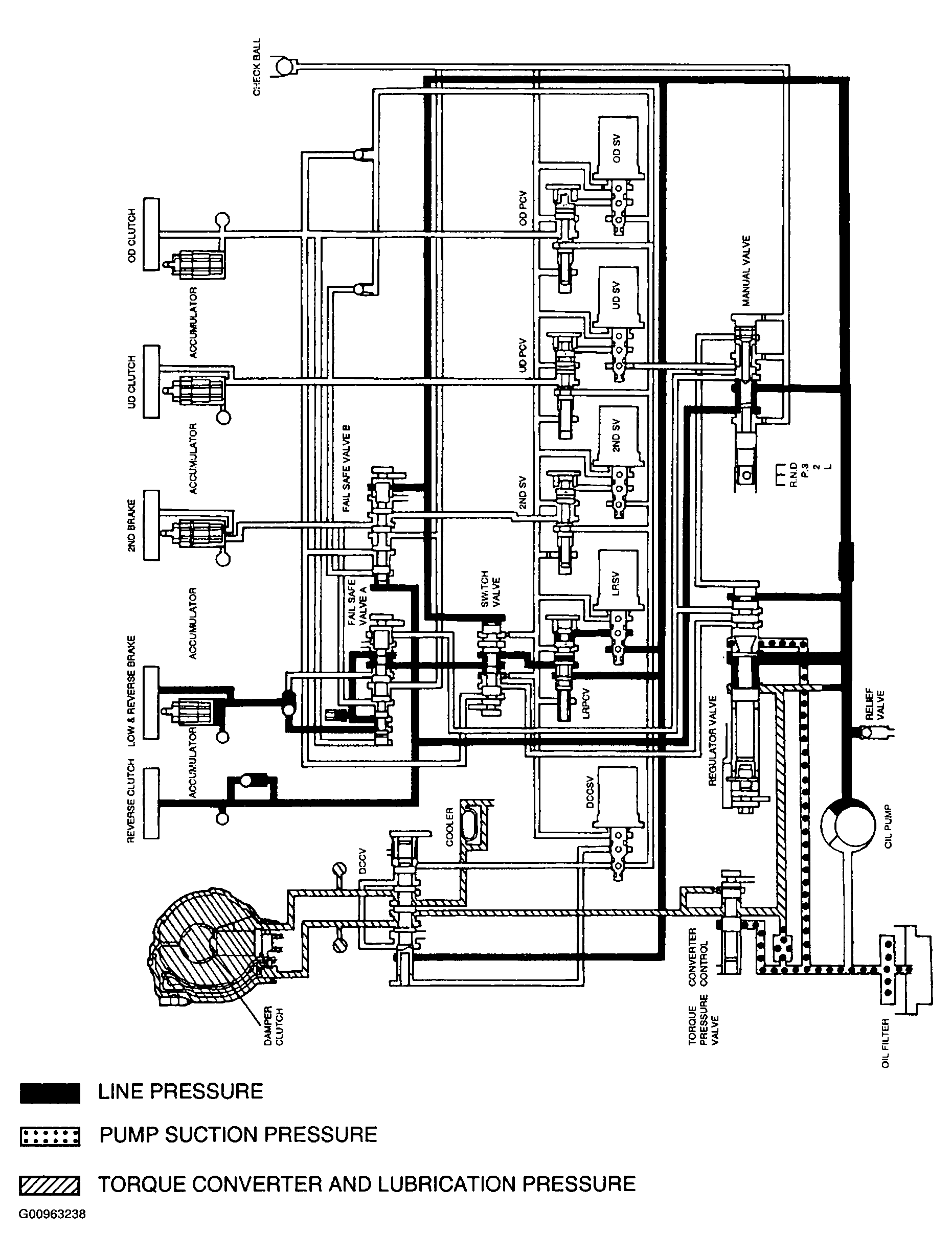

Fig 1: Identifying Hydraulic Circuit In Reverse Gear

G00963238

Courtesy of HYUNDAI MOTOR CO.
