Front Suspension System: General: Troubleshooting

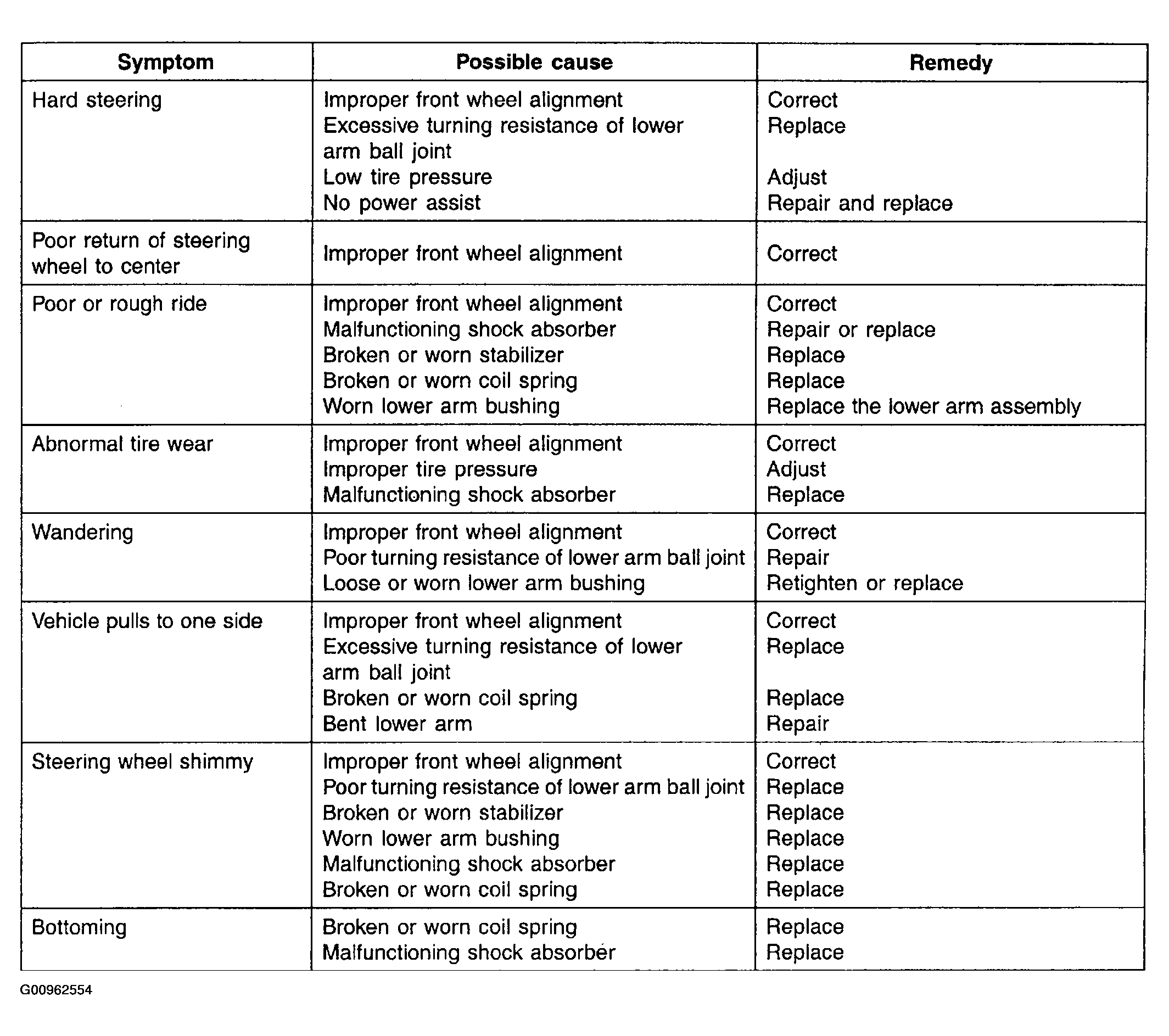

Fig 1: Troubleshooting Symptom & Possible Cause Table

Courtesy of HYUNDAI MOTOR CO.

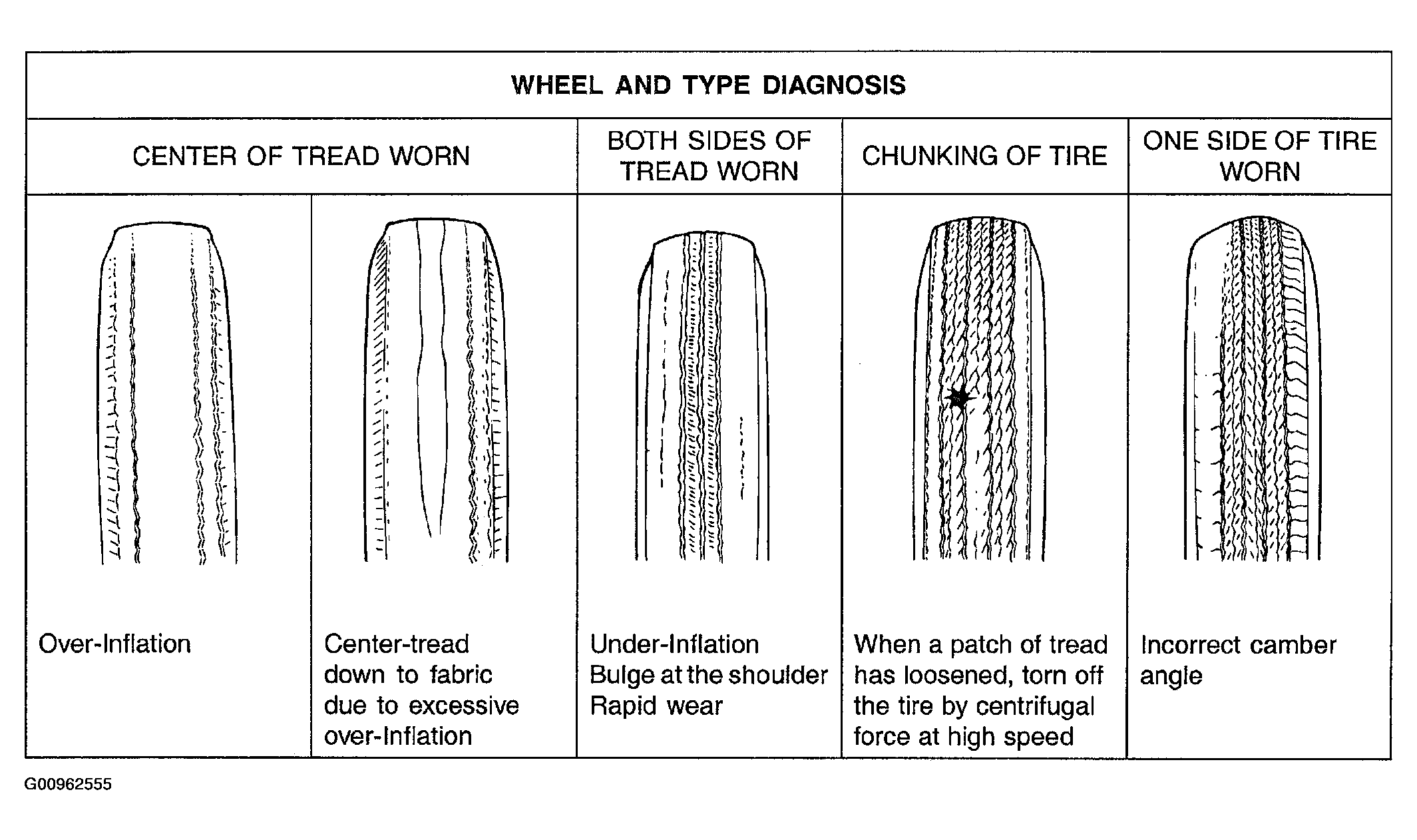

Fig 2: Tire Wear Pattern Diagnosis Table (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

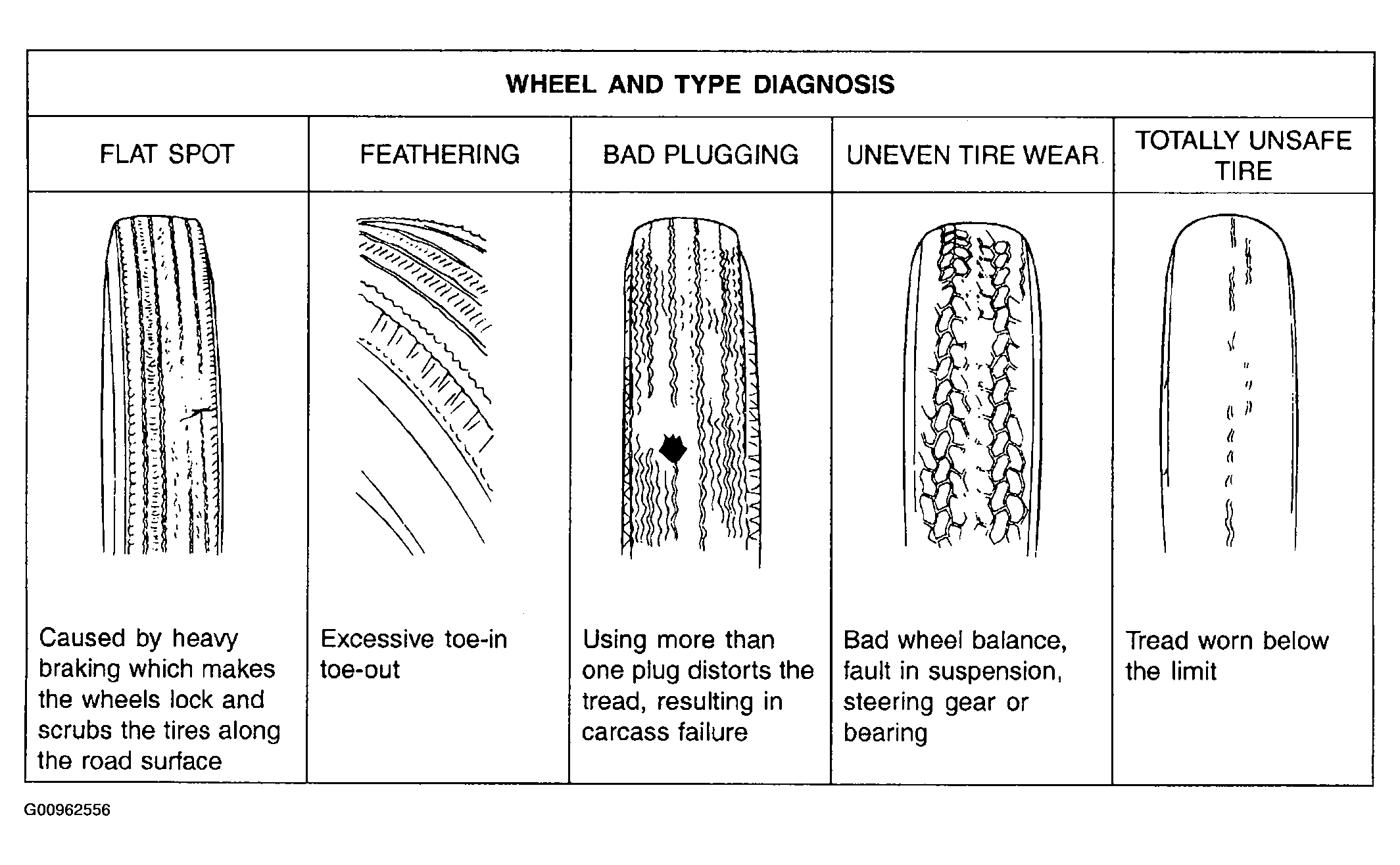

Fig 3: Tire Wear Pattern Diagnosis Table (1 Of 2

Courtesy of HYUNDAI MOTOR CO.
