Security System Keyless Adapter Cable (03-90-020)

Publication date: 2003-10-01
Reference number: 03-90-020

SECURITY SYSTEM KEYLESS ADAPTER CABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-90-020, Date of Issue: October, 2003

HYUNDAI:	2001-04 Elantra; ,2001-04 Santa Fe, XG300/350; 2002-04 Sonata; 2003-04 Tiburon
GROUP:	90 - Electrical

Superceded Bulletin(s): 02-90-001

NOTE: This bulletin supercedes TSB# 02-90-001.

DESCRIPTION

The security system keyless adapter cable (SPX/Kent-Moore P/N 09900-21300) is a special service tool (SST) that is used for programming new keyless entry remote transmitters to the factory security systems. The keyless adapter is used in conjunction with the Hi-Scan Pro (with Hi-Scan SOL Pro Software Version 09-29-03 or newer) and Data Link Connector (DLC) Cable.

SERVICE INFORMATION

The keyless adapter cable (Fig 1 ) can be used on the following vehicles:

2001 - 2004 MY Elantra
2001 - 2004 MY Santa Fe
2002 - 2004 MY Sonata
2001 - 2004 MY XG300/350

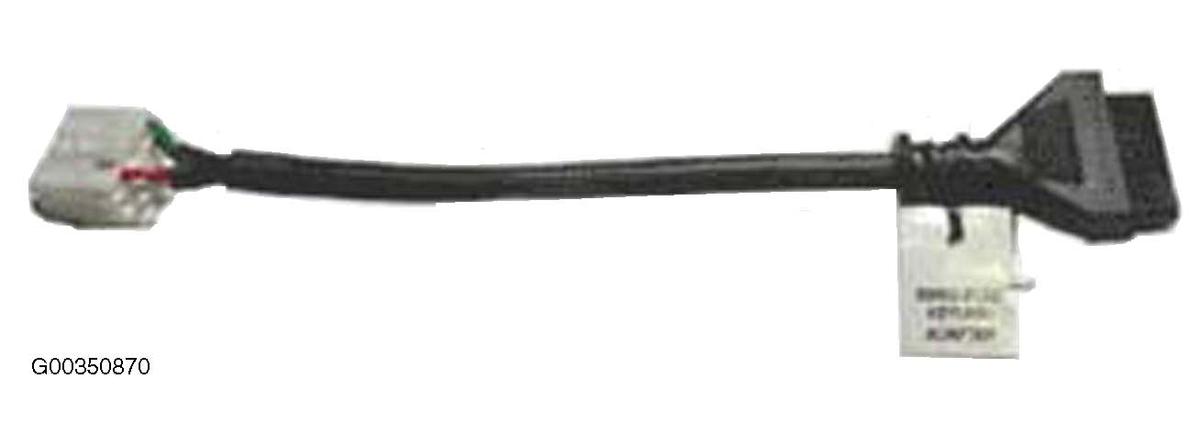

Fig 1: Keyless Adapter Cable

NOTE:

The 2003 - 2004 MY Tiburon does not need the Keyless Adapter Cable to add keyless entry remotes to the factory security system. Instead, the Hi-Scan Pro connects to the vehicle using only the DLC cable. See page BE-60 in the 2004 MY Tiburon Shop Manual for the latest instructions.
The most current Keyless Adapter Cable Instructions are available in the following shop manuals:

SHOP MANUAL REFERENCES

Shop Manual	Pages
2004 MY Elantra	BE-73 - BE-74
2004 MY Santa Fe	BE-43 - BE-44
2004 MY Sonata	BE-40 - BE-41
2004 MY XG350	BE-46 - BE-47

KEYLESS ADAPTER CABLE INSTRUCTIONS

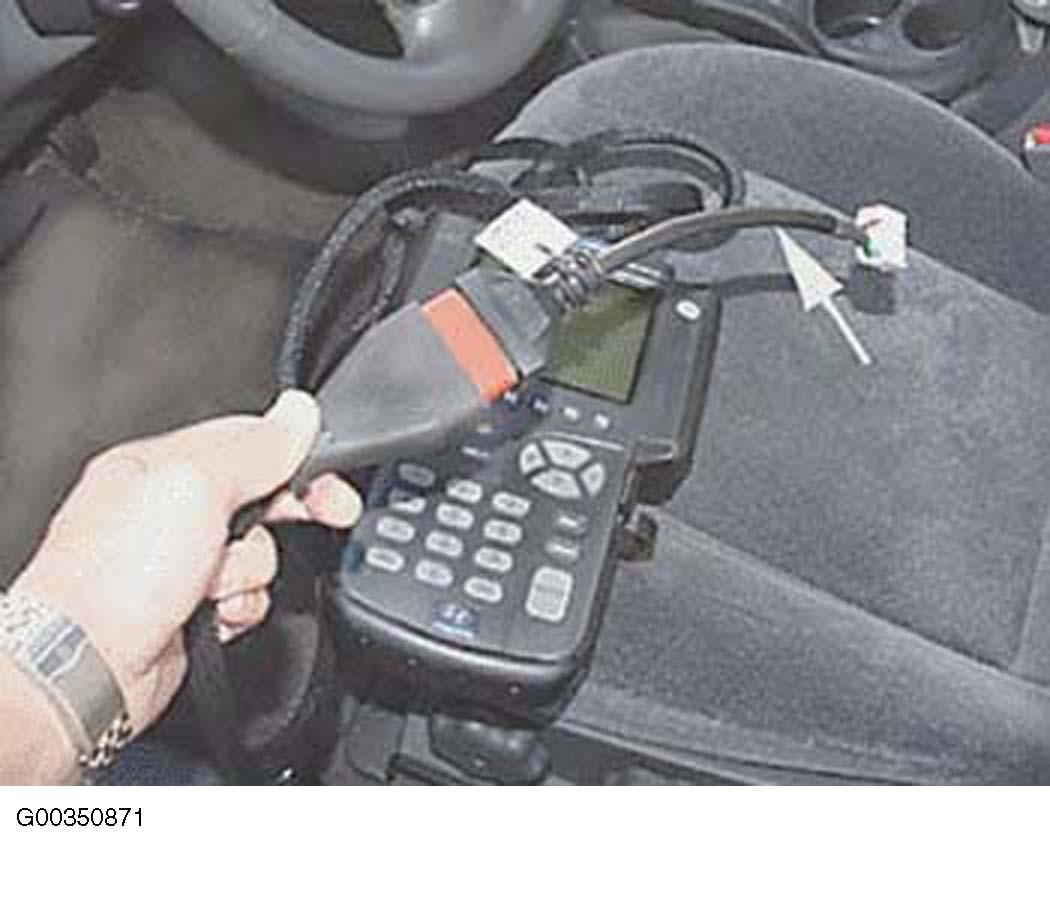

Connect the keyless adapter cable to the Hi-Scan Pro DLC cable. (Fig 2 )

Fig 2: Keyless Adapter and Hi-Scan Pro

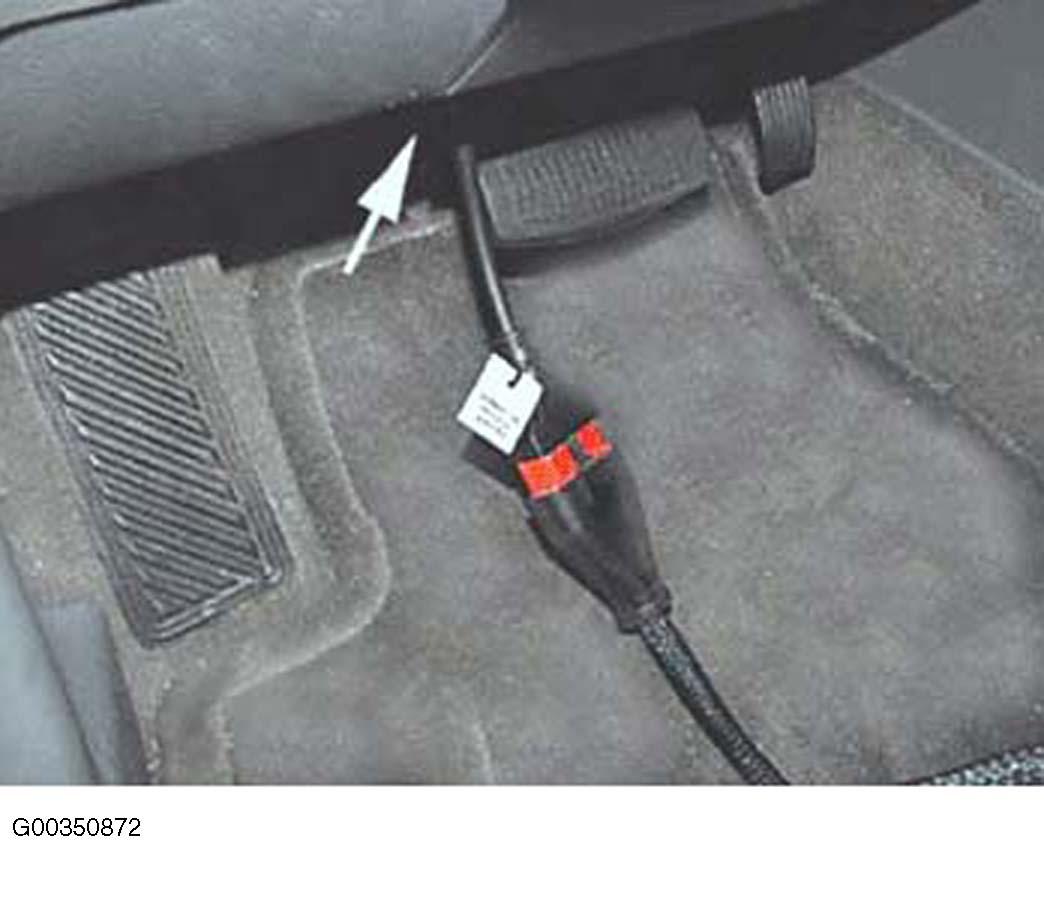

Plug the keyless adapter into the vehicle's 10-pin multi-purpose connector (Fig 3 ) located behind the driver's side lower instrument panel (next to the DLC).
NOTE: Sample vehicle shown is the Santa Fe.

Fig 3: Multi-purpose Connector Location

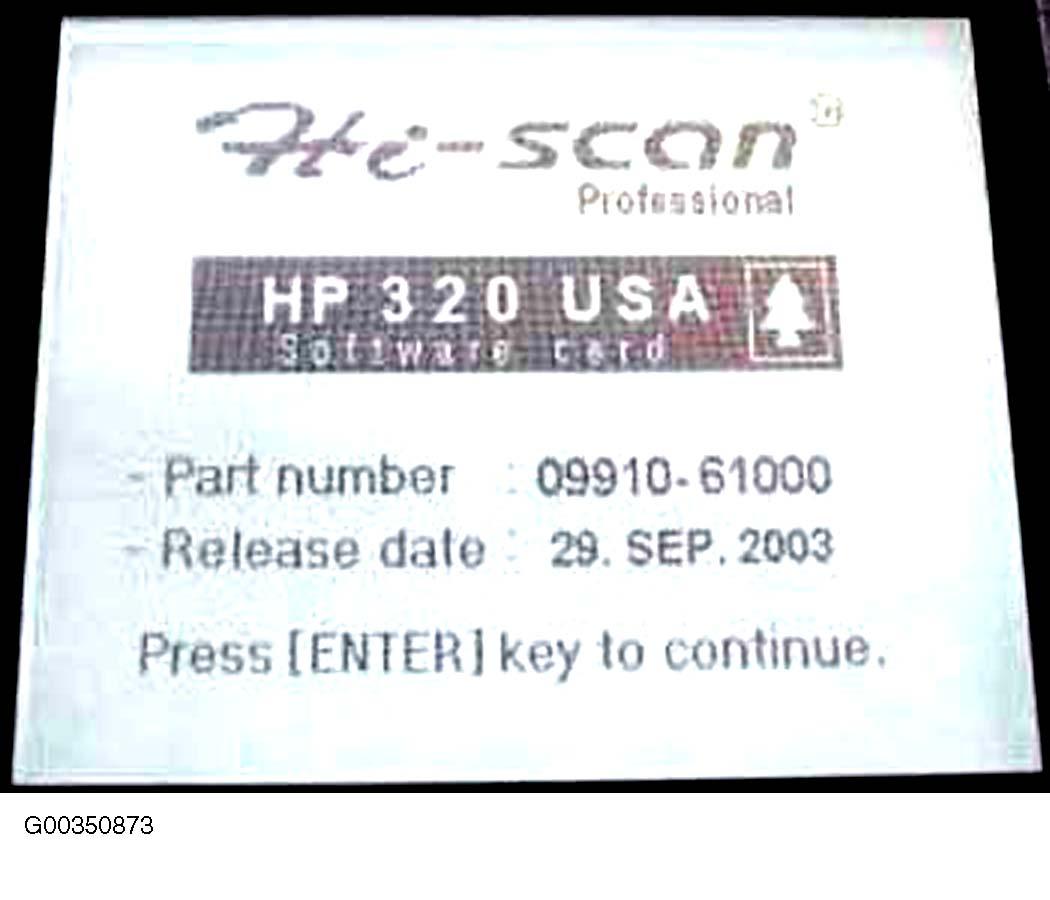

Turn the Hi-Scan Pro ON and press ENTER. (Fig 4 )

Fig 4: Press Enter

NOTE: "Release date 29. Sep. 2003" OR LATER must appear on this screen. To update your SOL card with the latest software go to www.hmaservice.com and refer to TSB 00-00-001 , HI-SCAN PRO SOFTWARE UPDATE PROCEDURE.

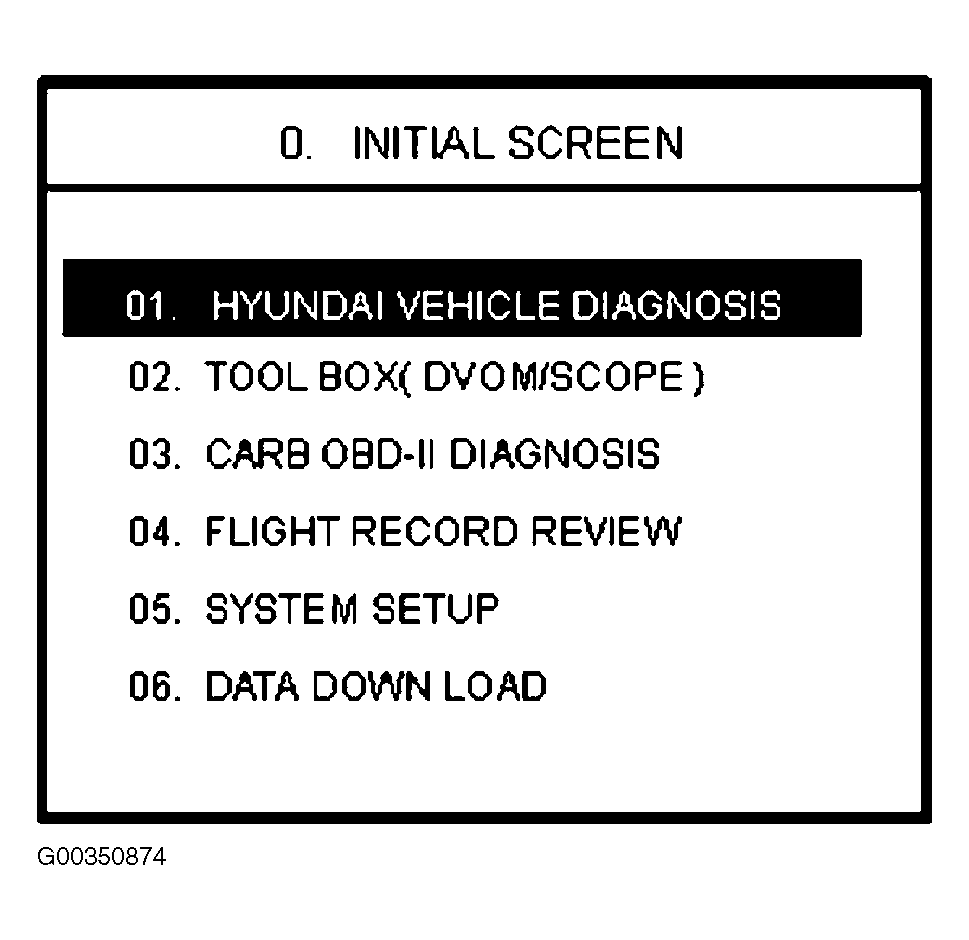

Select option "HYUNDAI VEHICLE DIAGNOSIS" and press ENTER. (Fig 5 )

Fig 5: Select Option 01

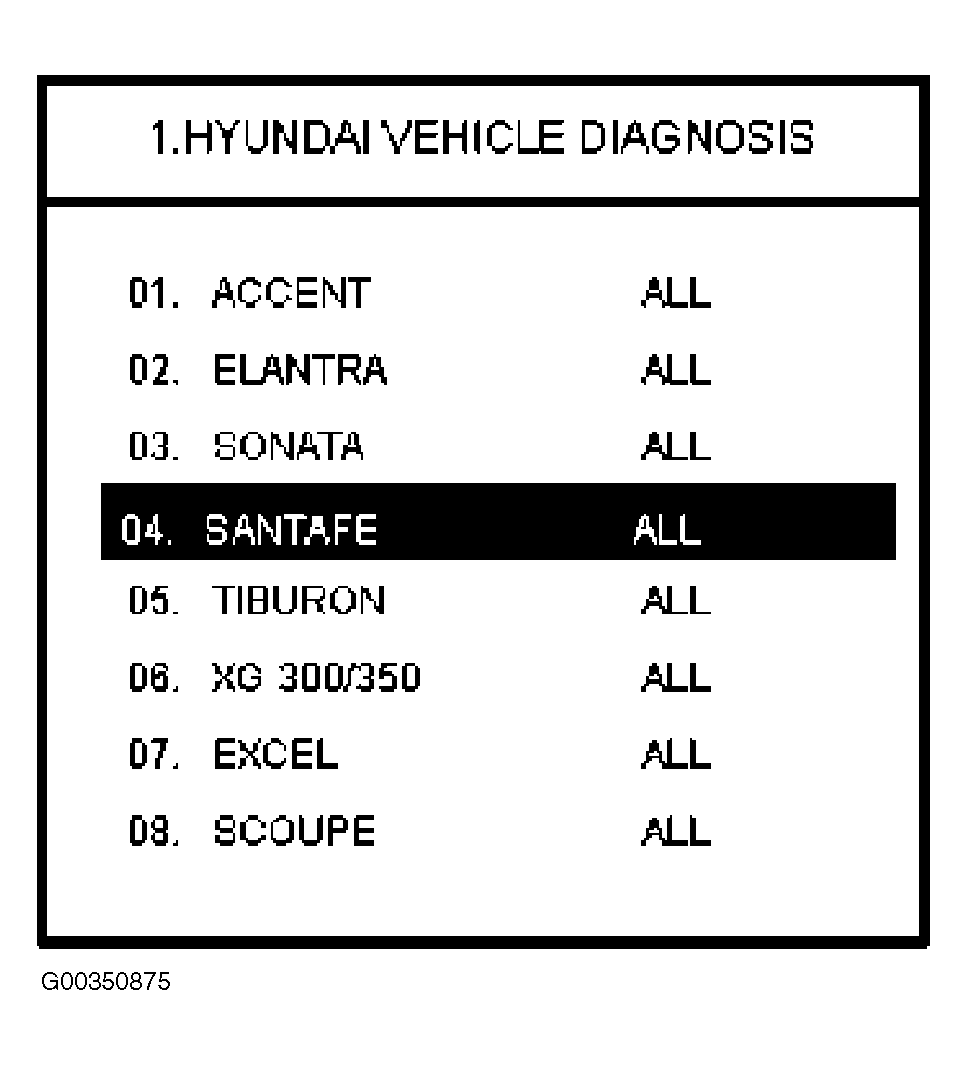

Select vehicle model and press ENTER. (Fig 6 )

Fig 6: Select Appropriate Model

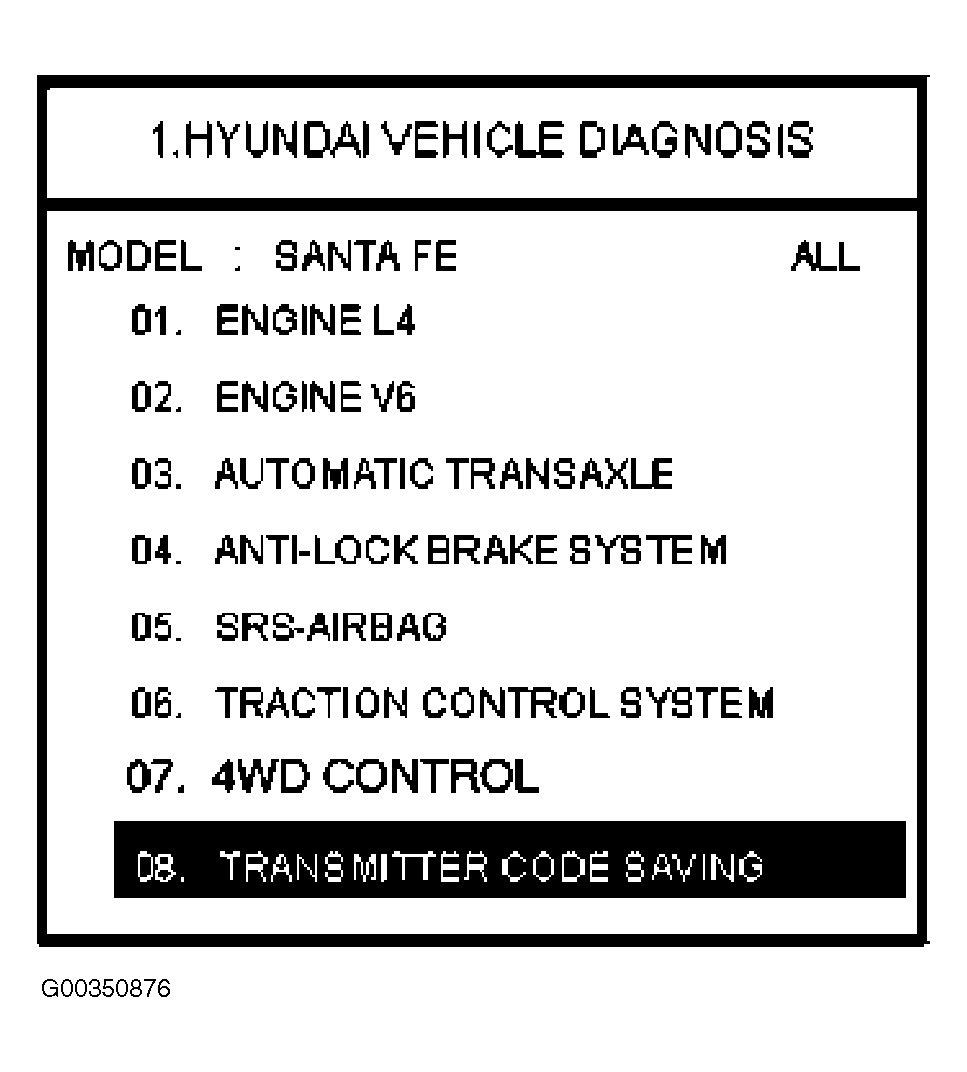

Select option "TRANSMITTER CODE SAVING" and press ENTER. (Fig 7 )

Fig 7: Select Option 08

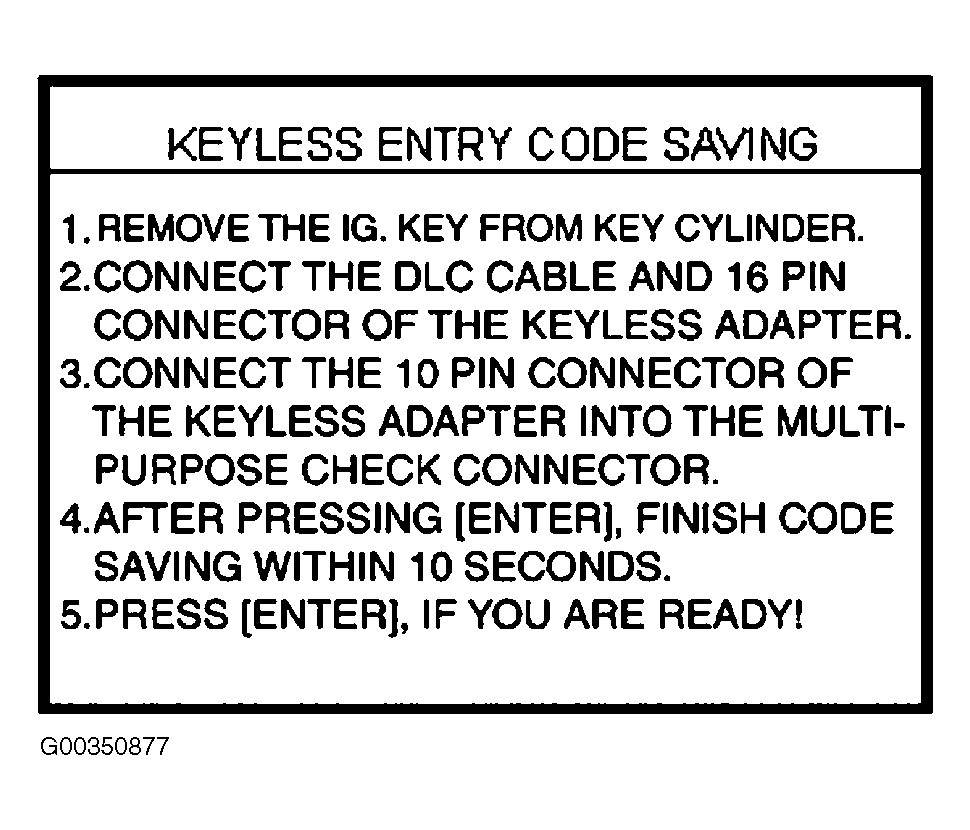

Ensure that the key has been removed from the ignition cylinder before proceeding. (Fig 8 )

Fig 8: Preparation Directions

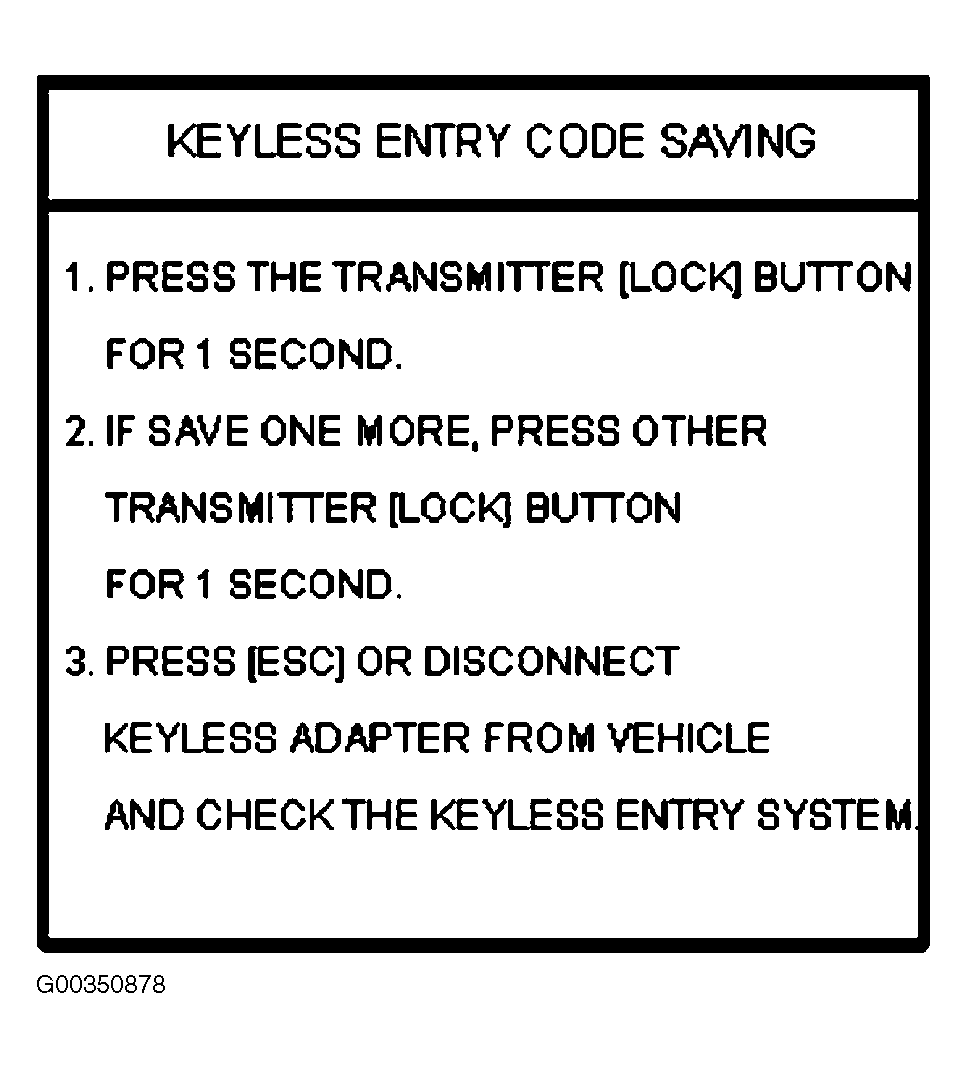

Follow the steps noted on the Hi-Scan Pro screen to program the remote(s). (Fig 9 )
NOTE: The factory security system can only be programmed to accept two remote transmitters and MUST be programmed for both remote transmitters at the same time.

Fig 9: Keyless Entry Code Saving
Press ESC on the Hi-Scan Pro and verify that the remote(s) are functioning properly.
Turn the Hi-Scan Pro OFF and disconnect the adapter cable from the multi-purpose connector.

PARTS INFORMATION

Part Name: Security System Keyless Adapter Cable

Part Number: 09900-21300 (SPX/Kent-Moore)

NOTE: The Adapter Cable tool (P/N 09900-21300) can be purchased through SPX/Kent-Moore at 1-800-345-2233. Each dealership was supplied one tool in January 2002.
