Cam Shaft: Installation: Notes

  1. Remove any sealant material on the cylinder head and cover.
  2. Apply sealant (Loctite No. 5999) to the cylinder head cover.

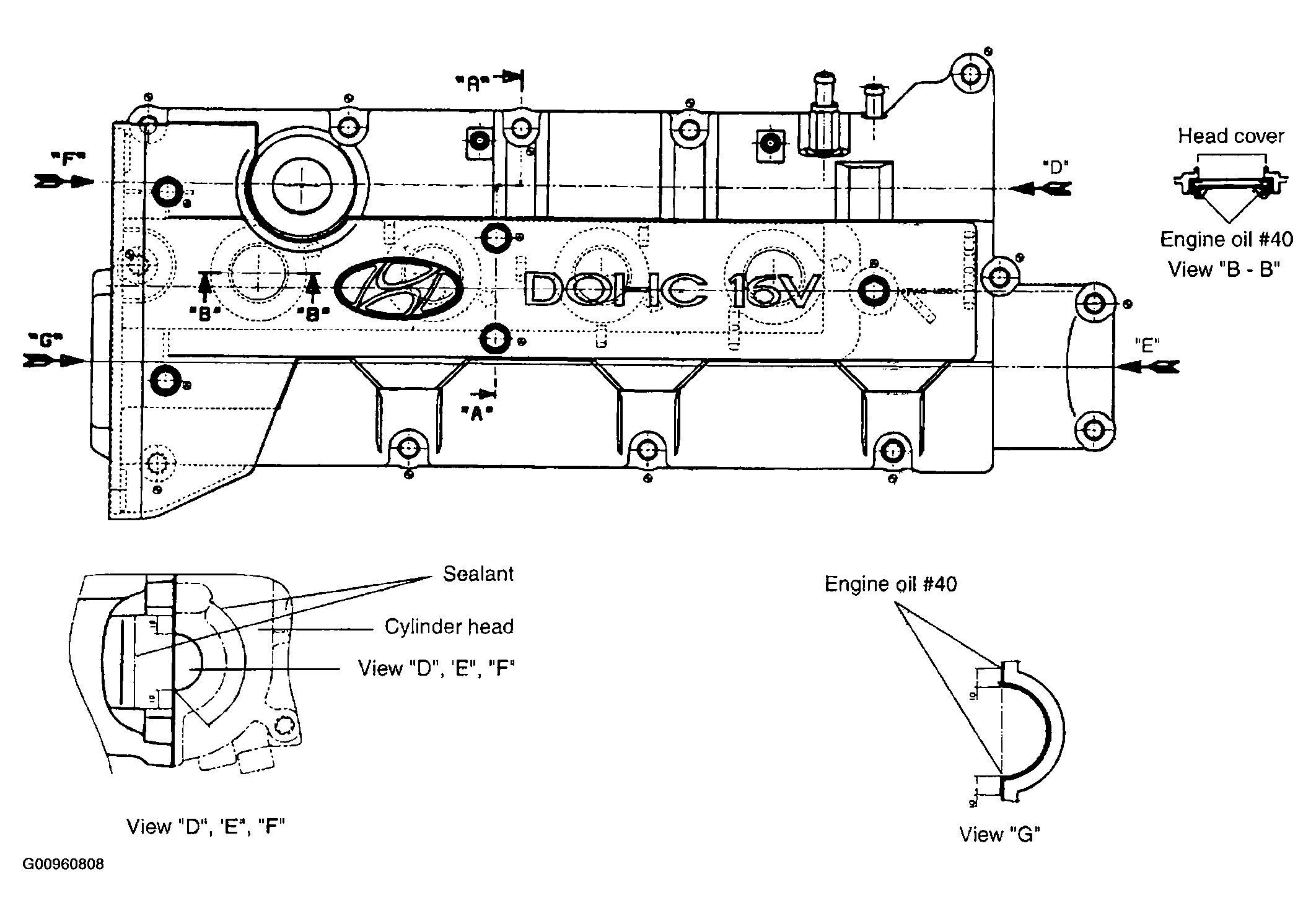

    Fig 1: Installing Cylinder Head Cover
    G00960808Courtesy of HYUNDAI MOTOR CO.
  3. Install the cylinder head cover.
    1. Cylinder head cover: 8-10 Nm (80 - 100 kg.cm, 6-7 lb.ft)
  4. Connect the accelerator cable.
  5. Connect the PCV hose and the breather hose to the cylinder head cover.
  6. Connect the spark plug cables to the spark plugs.
  7. Install the upper timing belt cover with the four bolts.

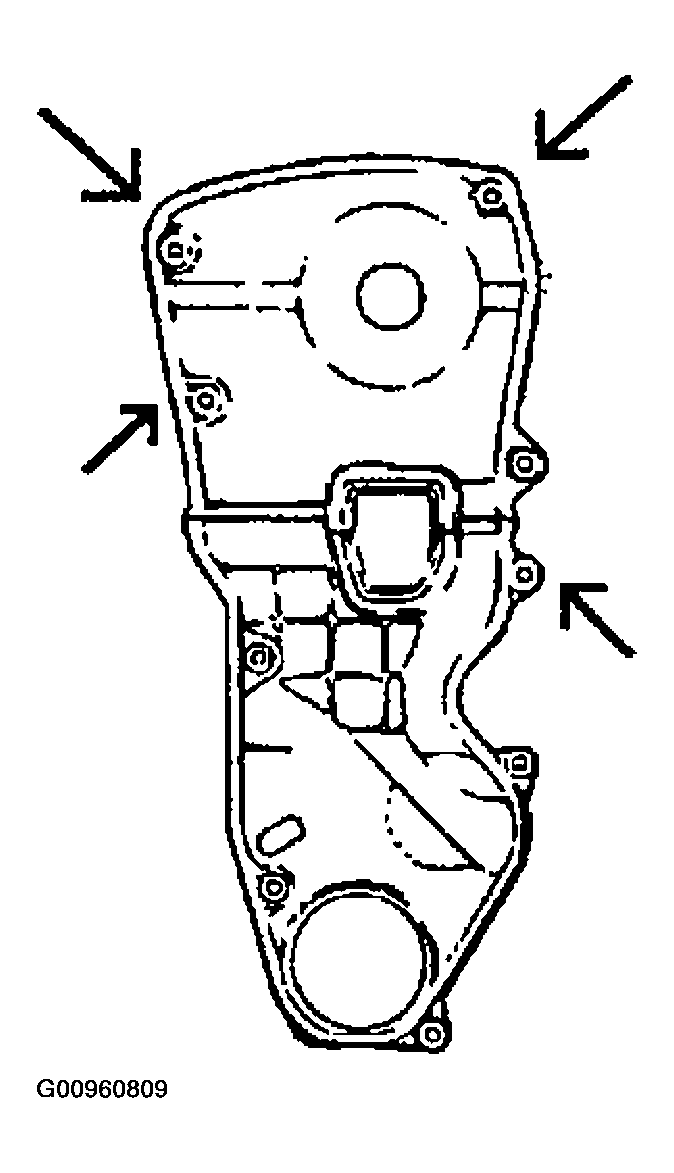

    Fig 2: Identifying Upper Timing Belt Cover
    G00960809Courtesy of HYUNDAI MOTOR CO.
  8. Install the center cover with the five bolts.
    1. Center cover: 2.5-3.5 Nm (25 - 35 kg.cm, 2-3 lb.ft)
  9. Install the oil filler cap.

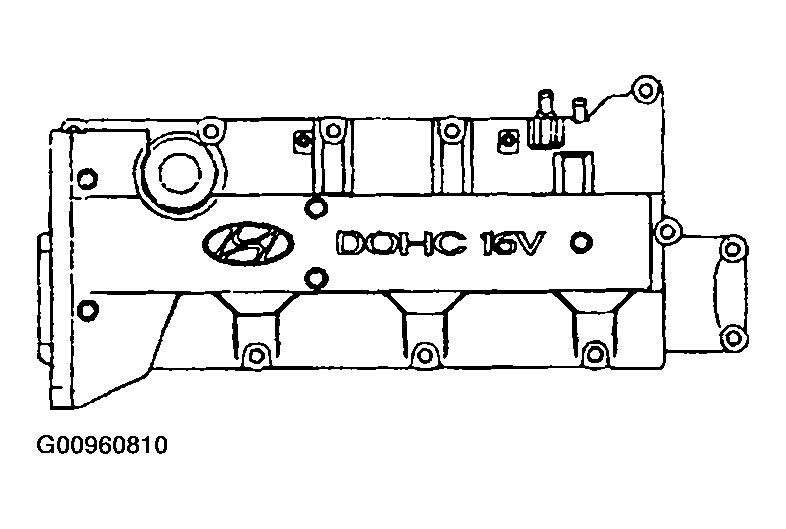

    Fig 3: Identifying Cylinder Head Cover
    G00960810Courtesy of HYUNDAI MOTOR CO.
  10. Install the engine cover.
