Home >> Hyundai >> 2003 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.0L 4-Cylinder Engine >> Intake & Exhaust System >> Muffler >> Components

Intake & Exhaust System: Muffler: Components

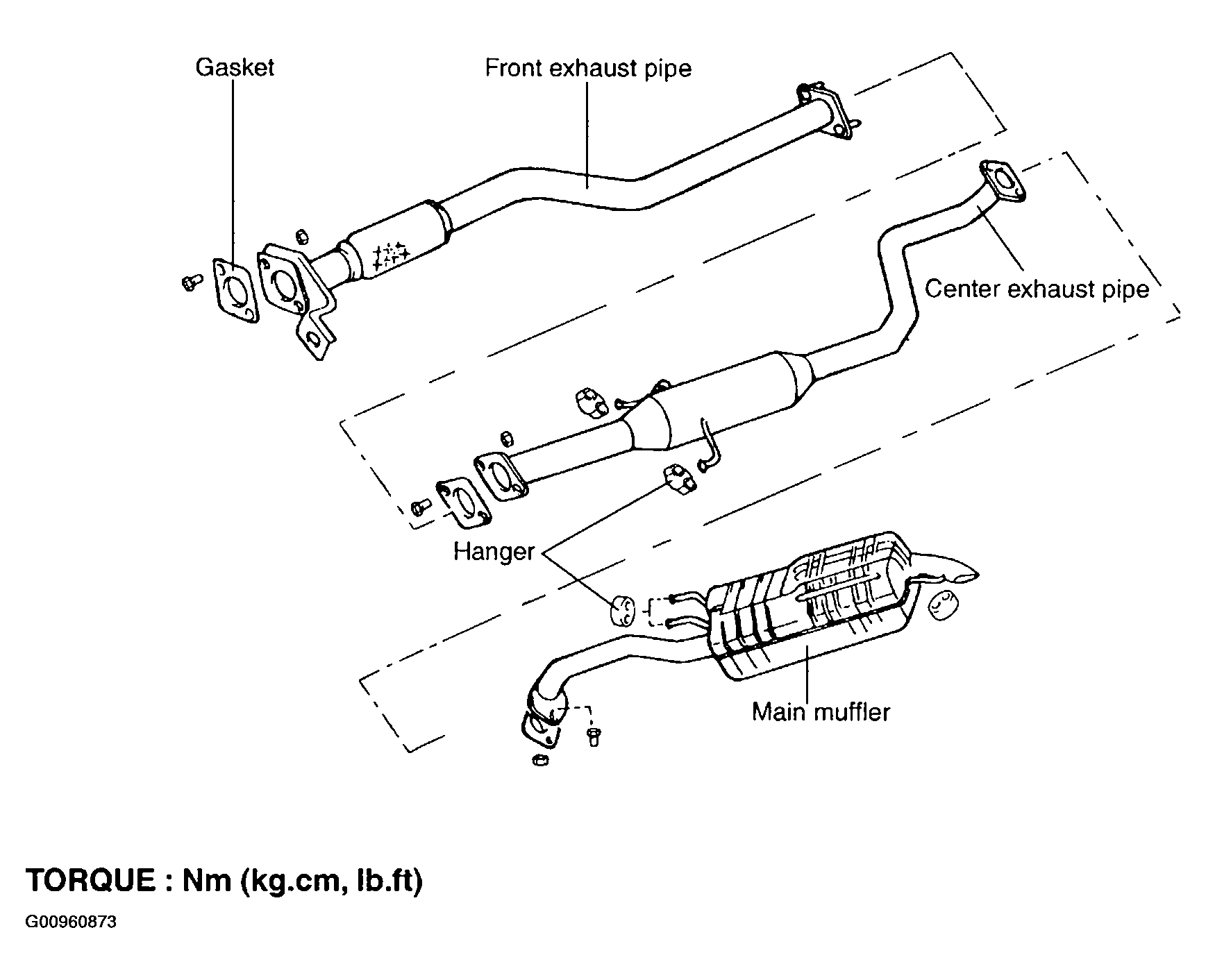

Fig 1: Muffler Components

G00960873

Courtesy of HYUNDAI MOTOR CO.
