Intake Manifold: Components

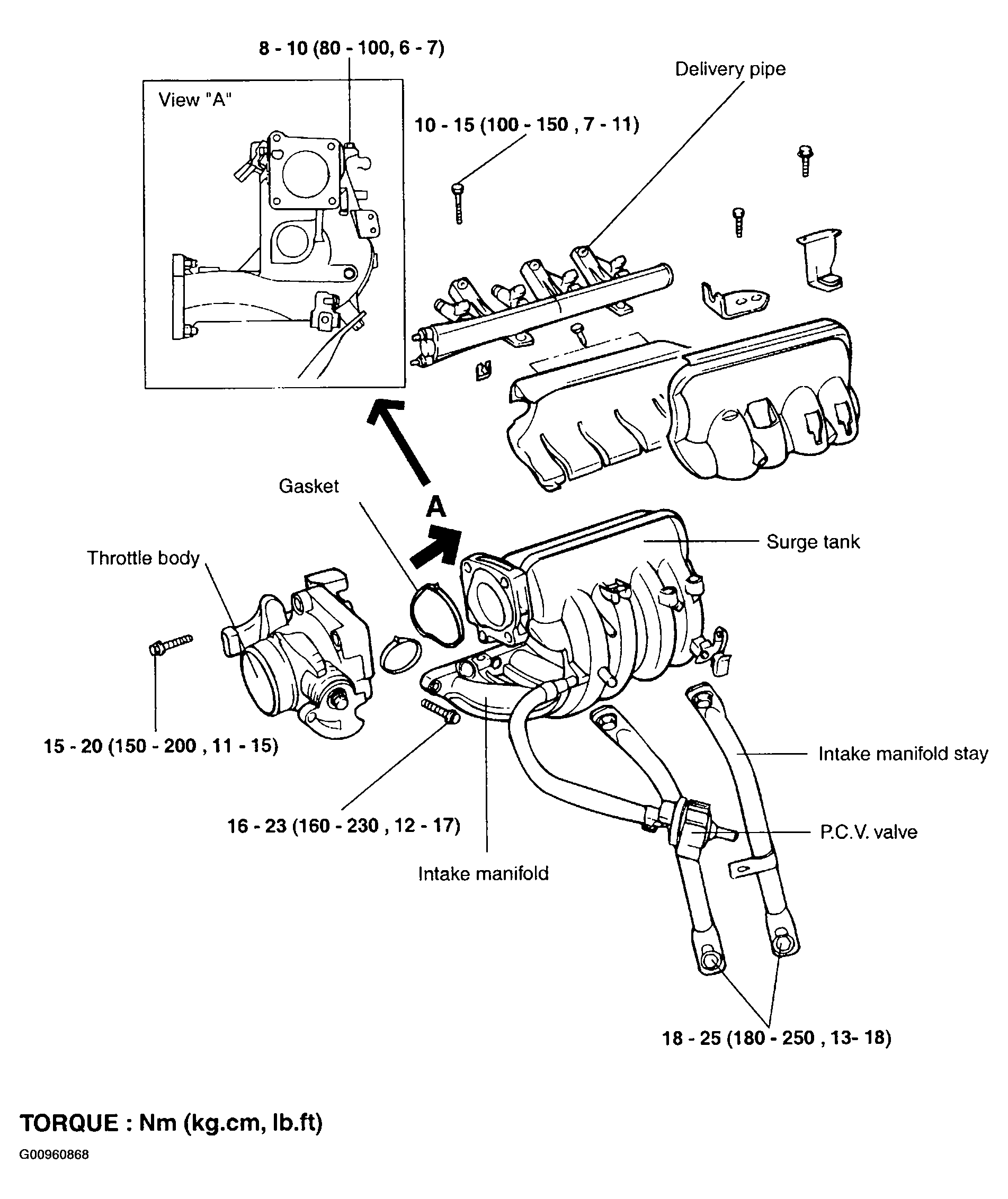

Fig 1: Intake Manifold Components
G00960868Courtesy of HYUNDAI MOTOR CO.
