2.0L 4-Cylinder Engine: General: Troubleshooting

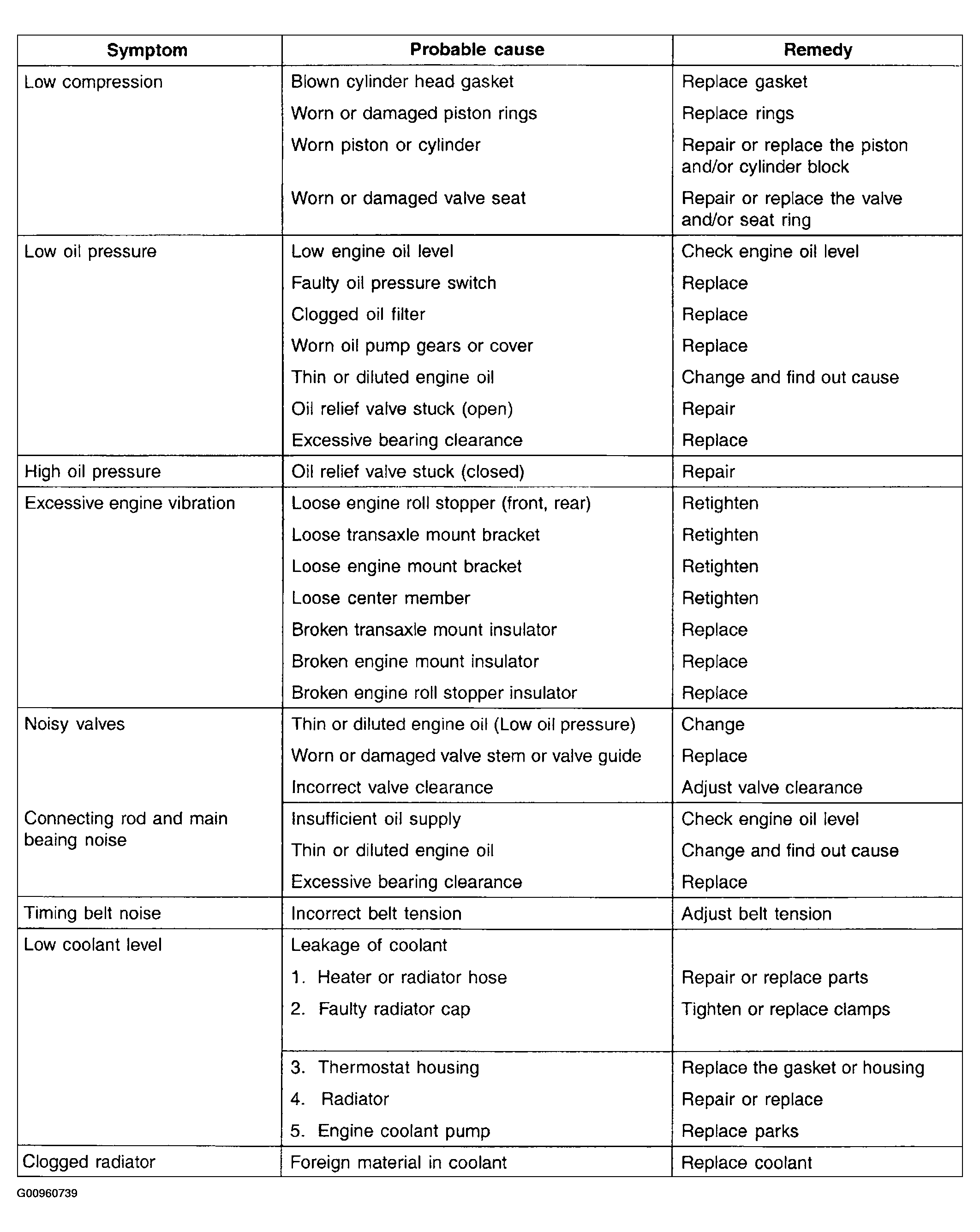

Fig 1: Troubleshooting Symptom Chart (1 Of 2)

G00960739

Courtesy of HYUNDAI MOTOR CO.

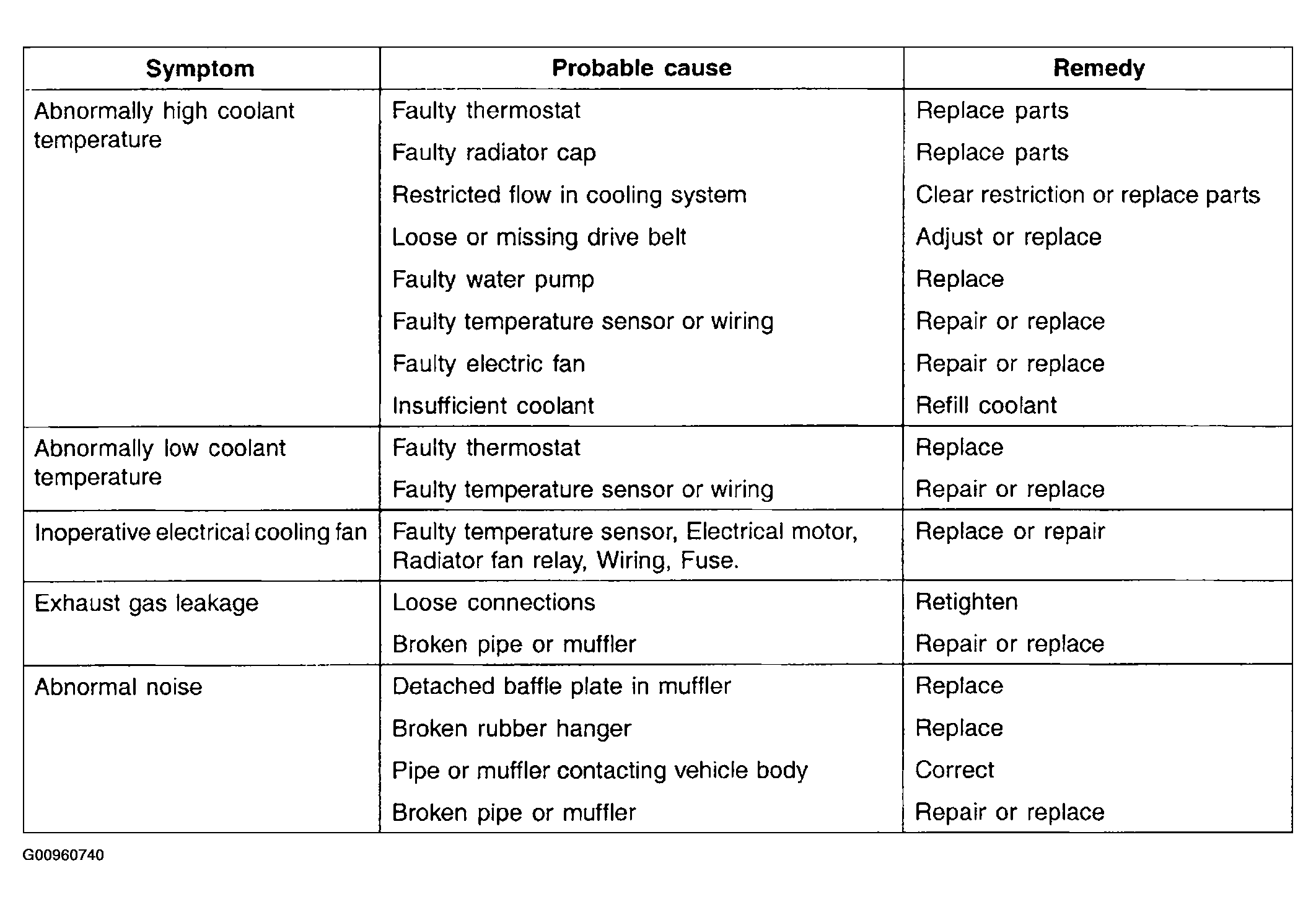

Fig 2: Troubleshooting Symptom Chart (2 Of 2)

G00960740

Courtesy of HYUNDAI MOTOR CO.
