Rear Roll Stopper

  1. Install the insulator in the correct angle.
    1. A/T : 33 +/- 3°
    2. M/T : 20 +/- 3°

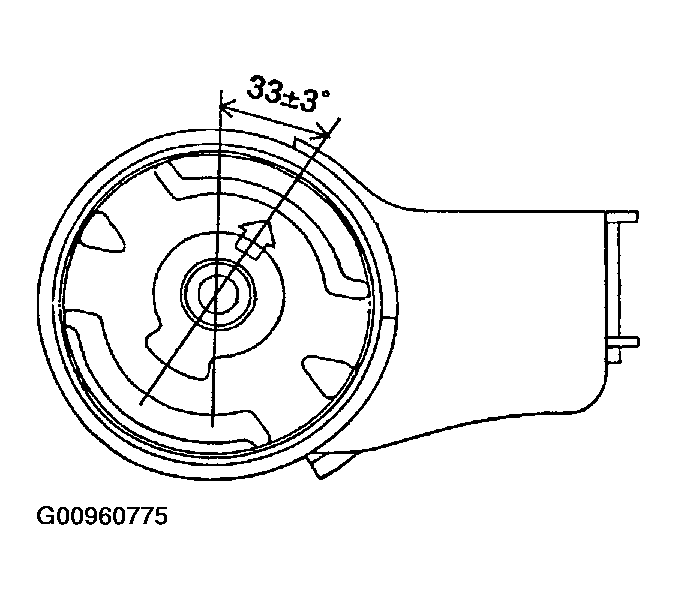

Fig 1: Identifying Proper Rear Roll Stopper Installation
G00960775Courtesy of HYUNDAI MOTOR CO.
