Front Roll Stopper

  1. Install the insulator in the correct angle.
    1. A/T : 30 +/- 3°
    2. M/T : 14 +/- 3°

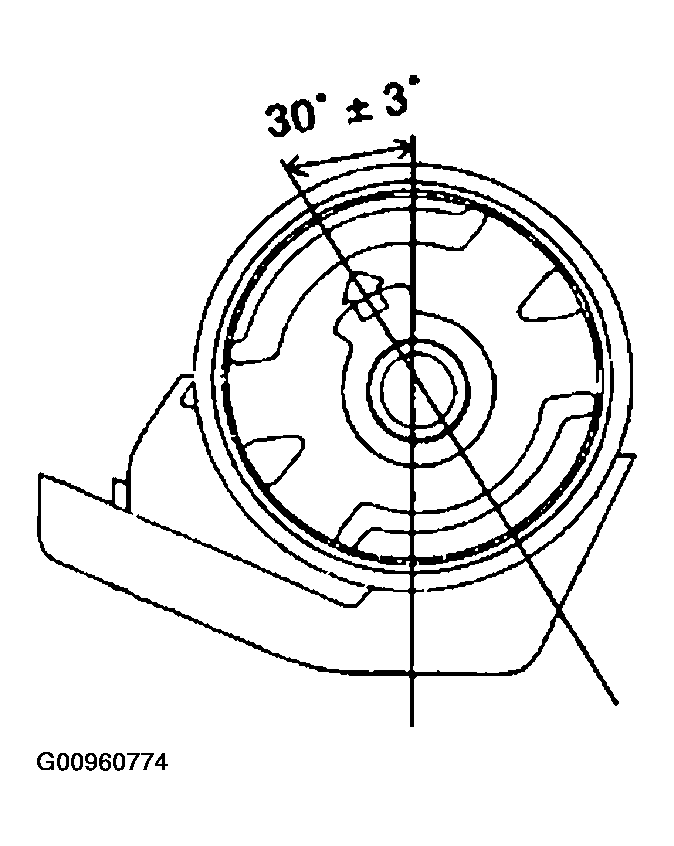

Fig 1: Identifying Proper Front Roll Stopper Installation
G00960774Courtesy of HYUNDAI MOTOR CO.
