Engine Block: Disassembly

  1. Remove the cylinder head, timing belt, front case, flywheel, pistons and crankshaft.
  2. Remove the oil pressure switch.

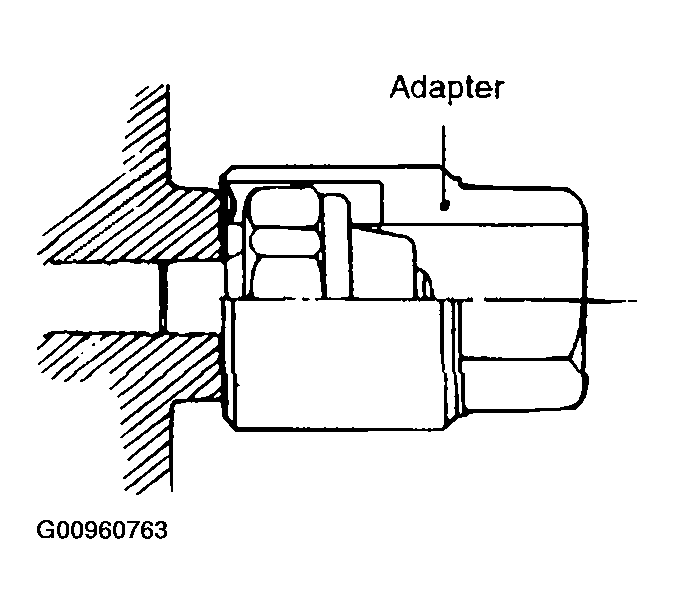

    Fig 1: Removing Oil Pressure Switch
    G00960763Courtesy of HYUNDAI MOTOR CO.
