Cylinder Head Assembly: Valves: Components

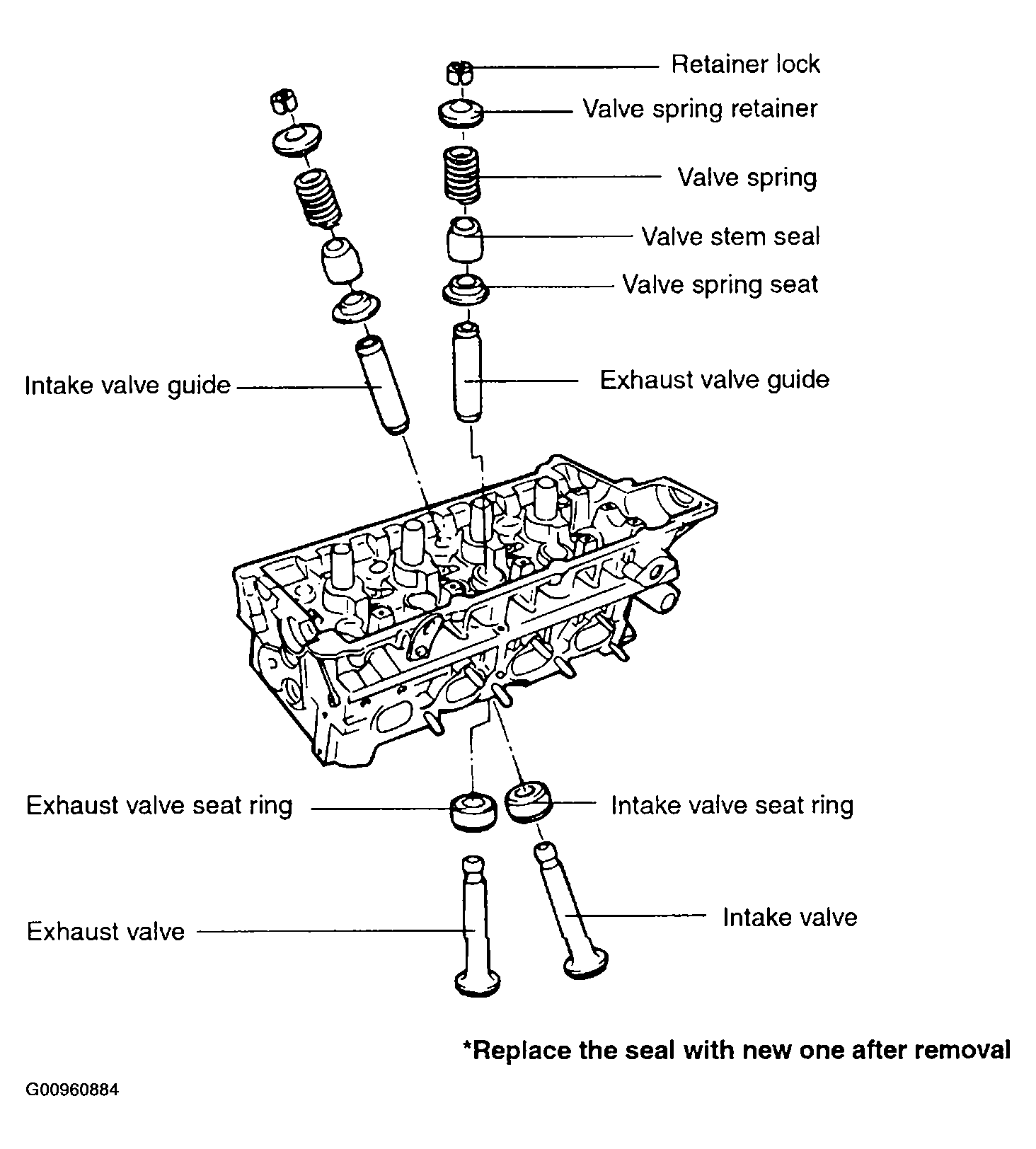

Fig 1: Valves Components

G00960884

Courtesy of HYUNDAI MOTOR CO.
