Manual Transaxle
>>
Components
Manual Transaxle: Components

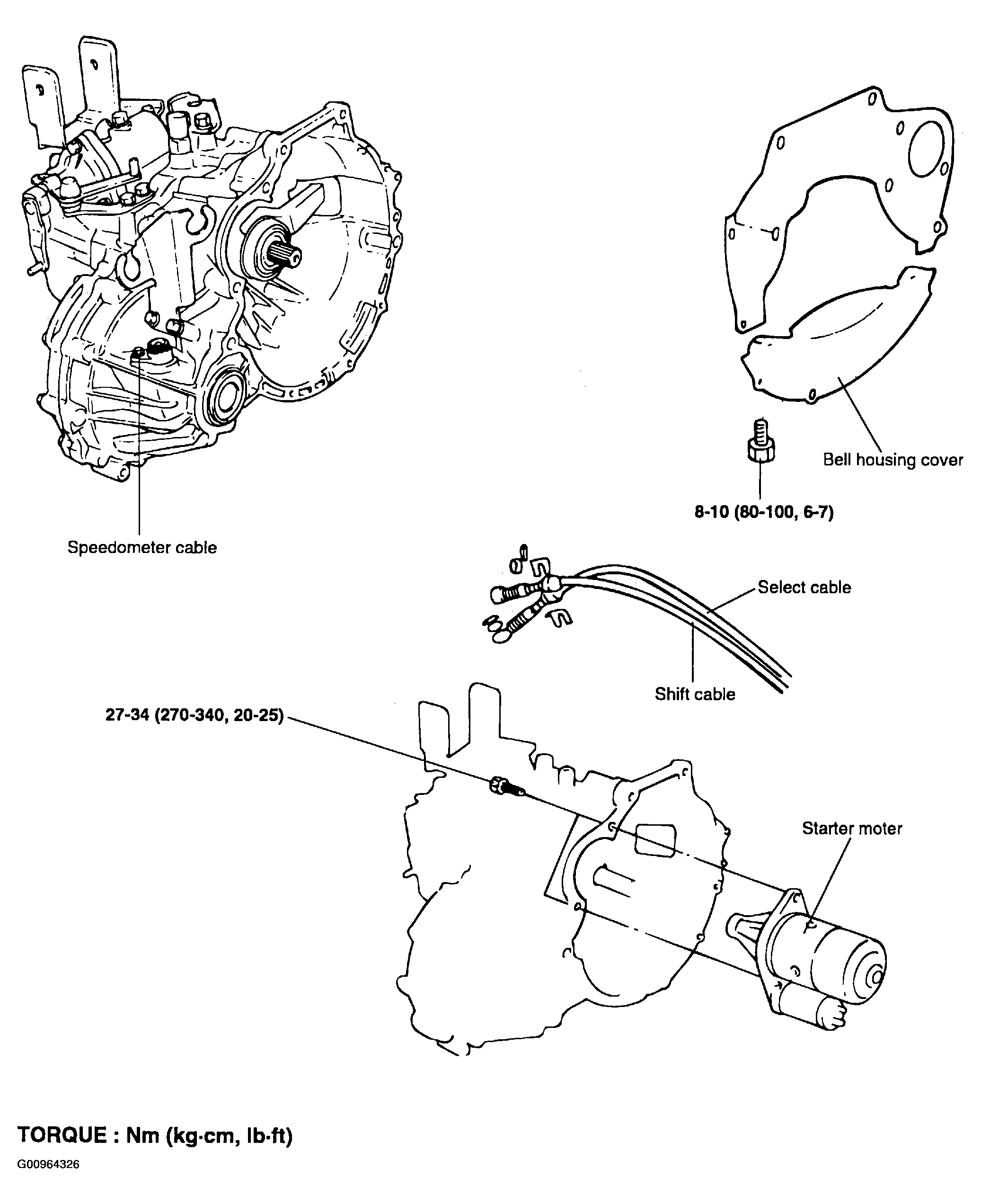

Fig 1: Manual Transaxle Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

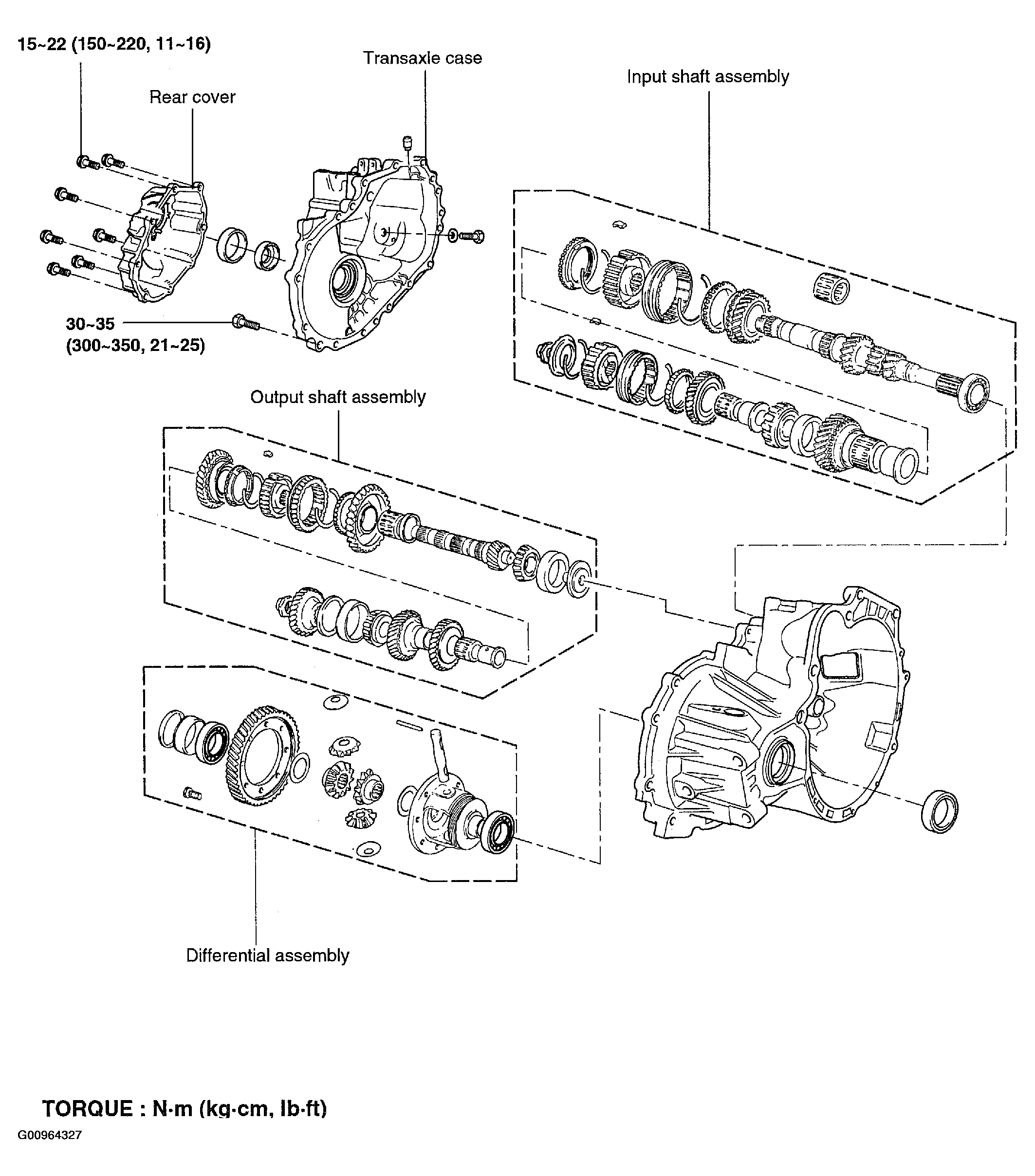

Fig 2: Manual Transaxle Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
