Home >> Hyundai >> 2003 >> Accent GL, 2D Hatchback, Standard >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Suspension System >> Front Stabilizer Bar >> Components

Front Stabilizer Bar: Components

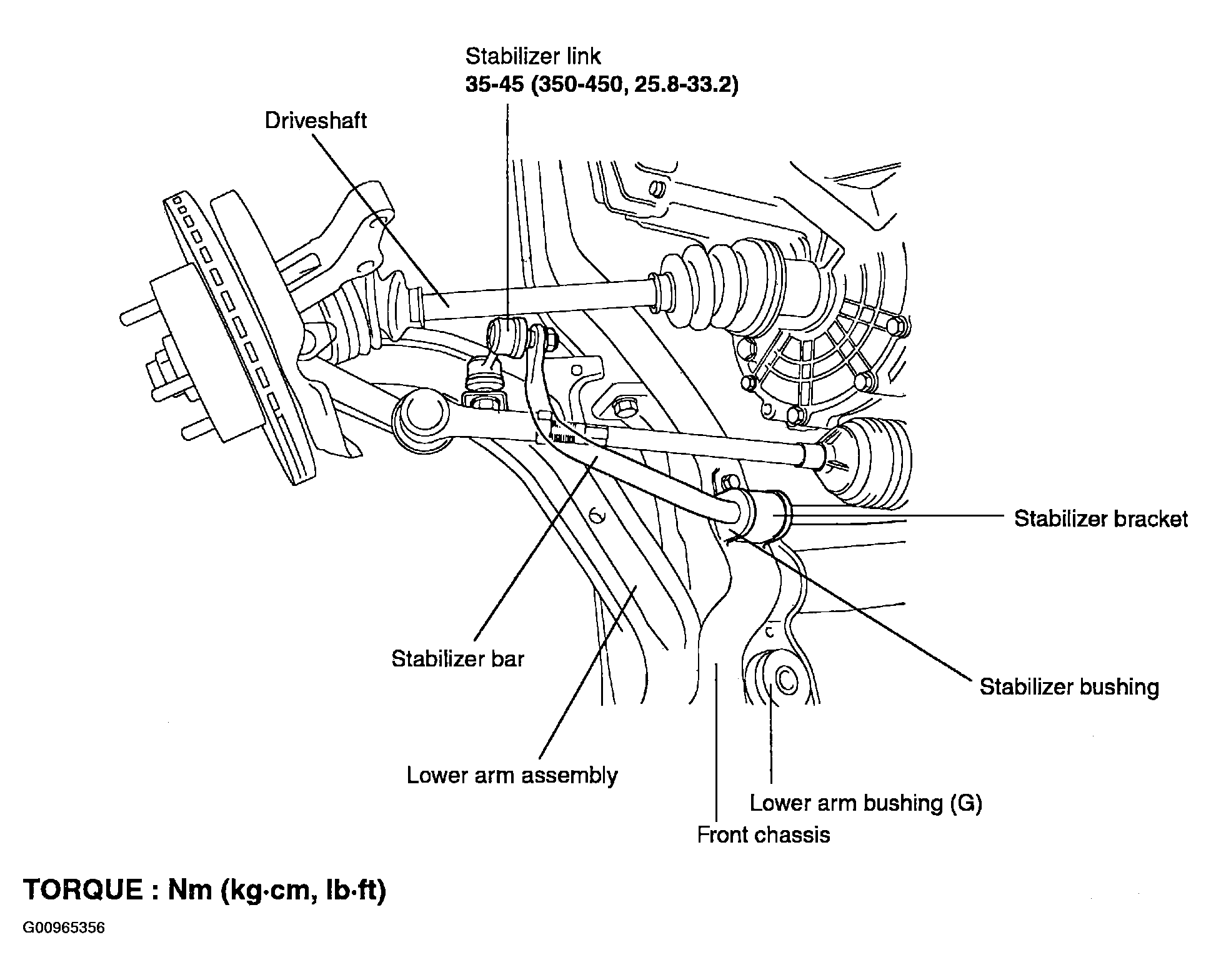

Fig 1: Front Stabilizer Bar Components

G00965356

Courtesy of HYUNDAI MOTOR CO.
