Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.
    1. Standard value
    2. Wheel angle (Unladen state)
    3. Inner wheel : °3737' +/- 1°30'
    4. Outer wheel : 31°51'

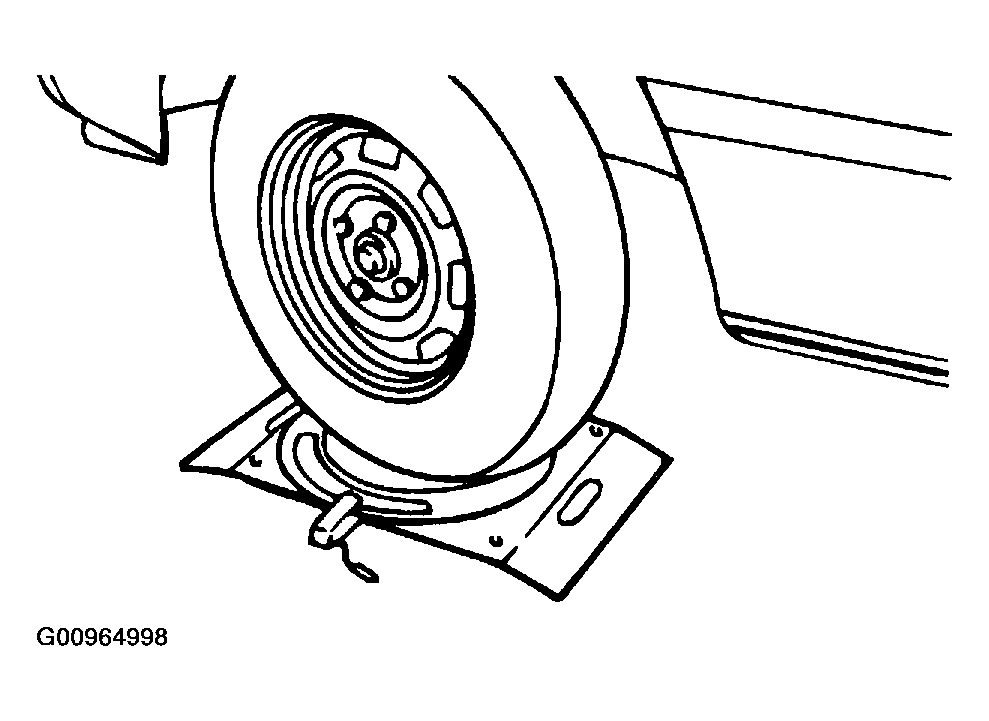

    Fig 1: Checking Steering Angle
    G00964998Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value, adjust the toe and inspect again.
