Steering Column/Shaft: Removal

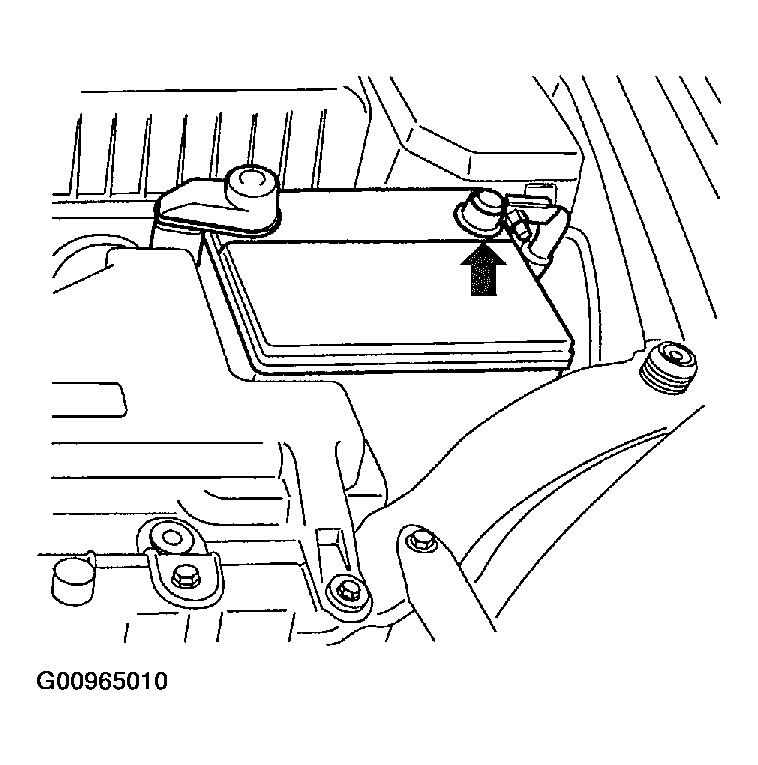

Disconnect the (-) negative terminal from the battery.

Fig 1: Disconnecting Battery
Courtesy of HYUNDAI MOTOR CO.

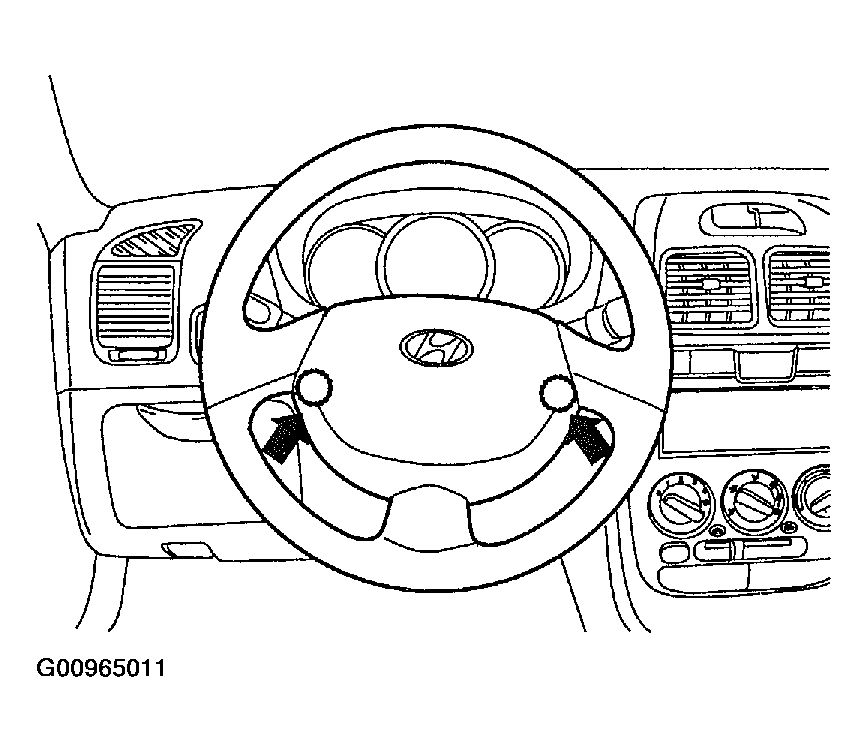

After removing the bolts in the illustration, remove the driver's airbag module.
NOTE: For the vehicles not equipped with SRS airbag, remove the horn cover assembly.

Fig 2: Identifying Drivers Airbag Module Bolts
Courtesy of HYUNDAI MOTOR CO.

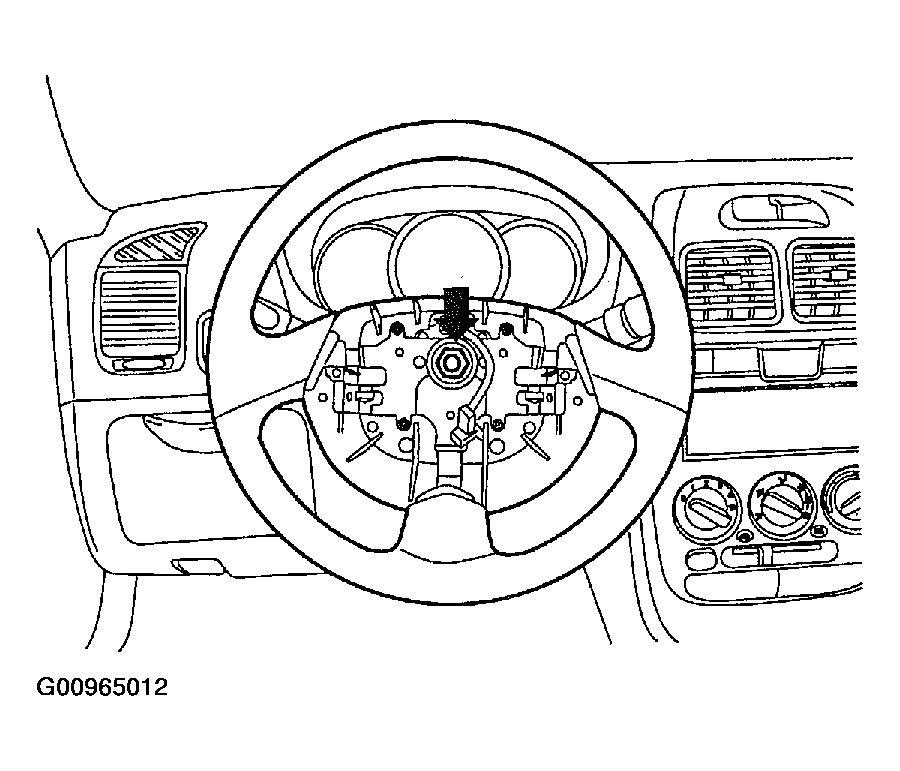

Remove the steering wheel lock nut.

Fig 3: Identifying Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.

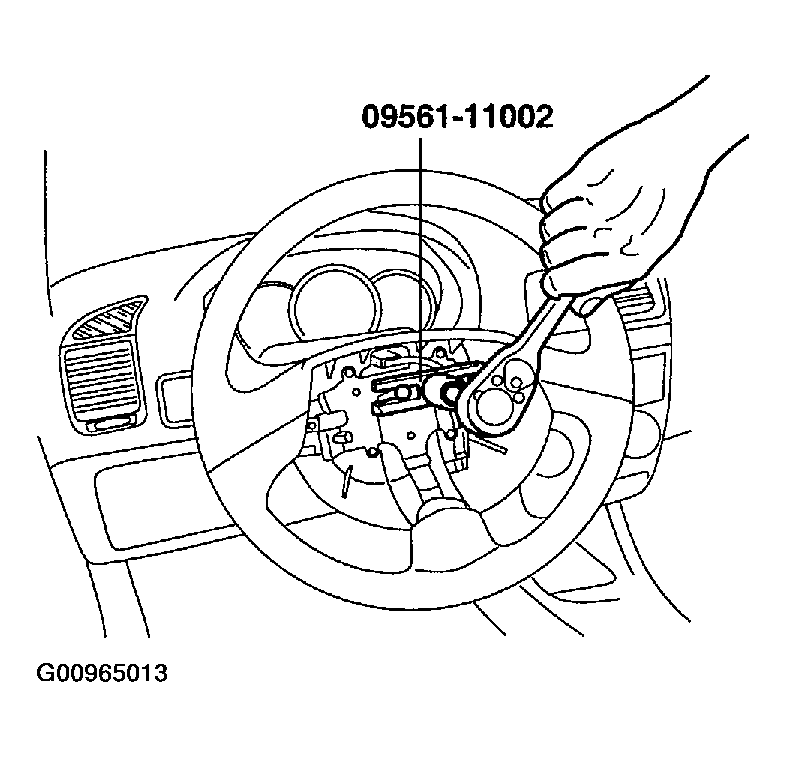

After aligning the marks on the steering shaft and wheel, remove the steering wheel using the special tool.
NOTE: Do not hammer on the steering wheel to remove it, doing so may damage the steering column.

Fig 4: Removing Steering Wheel
Courtesy of HYUNDAI MOTOR CO.

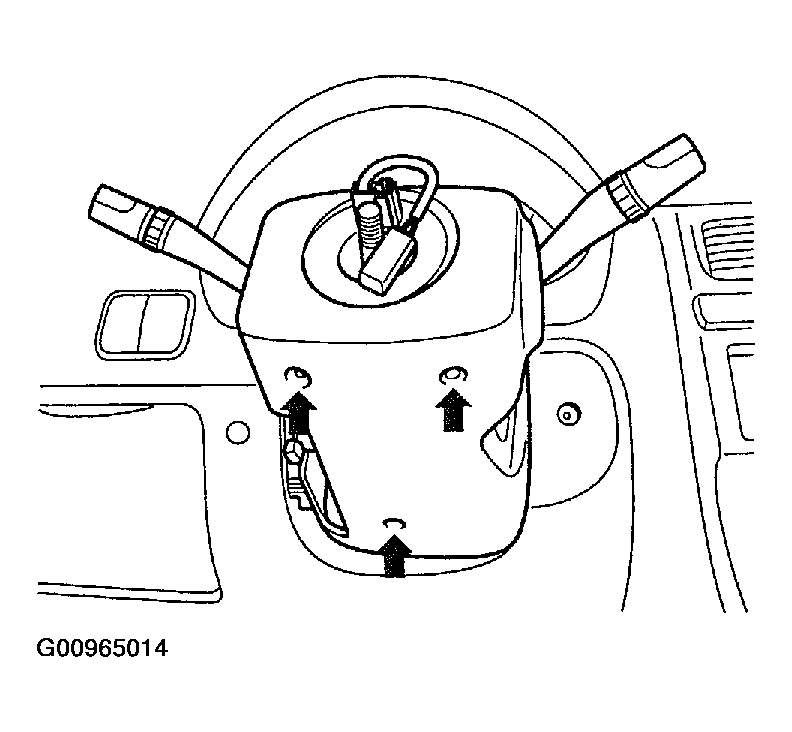

After removing the 3 bolts in the illustration, remove the steering column shroud.

Fig 5: Identifying Steering Column Shroud
Courtesy of HYUNDAI MOTOR CO.

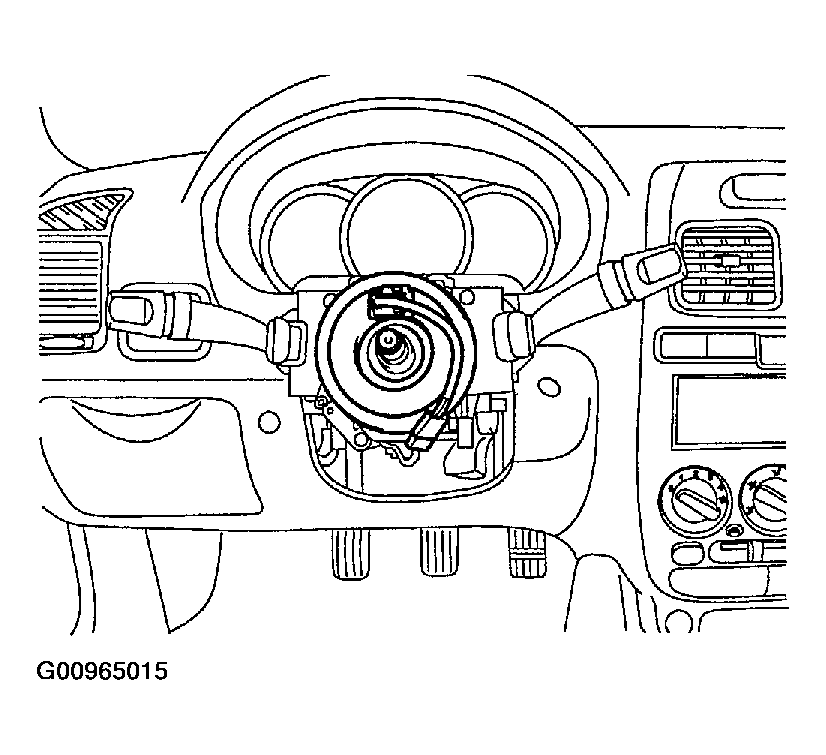

Remove the connectors of the airbag clock spring and the multifunction switch.

Fig 6: Identifying Clock Spring & Multifunction Switch Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the multifunction switch assembly from the steering shaft.

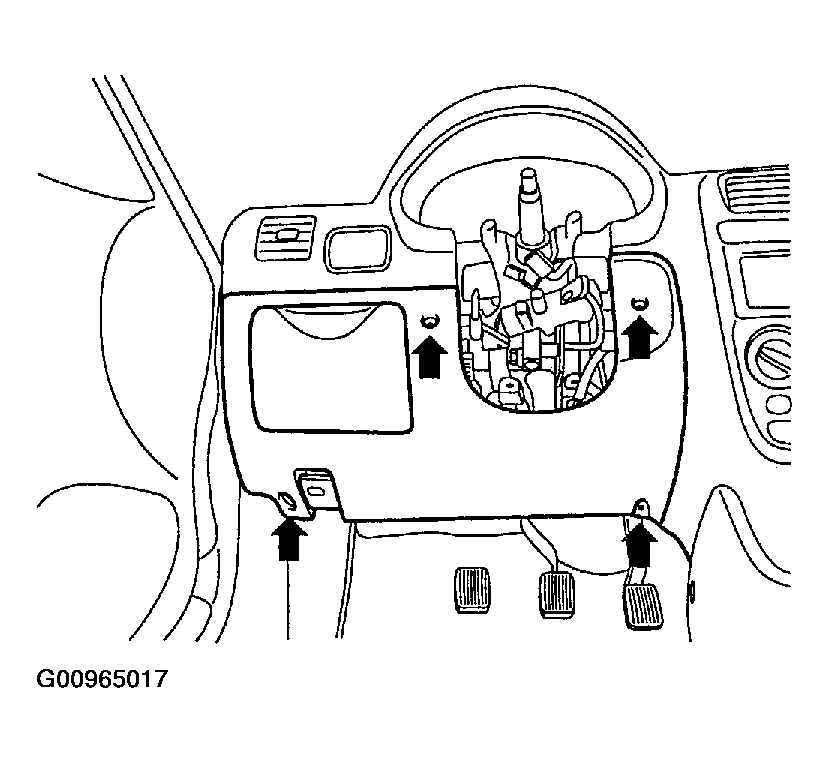

After removing 4 connecting bolts, remove the lower crash pad.

Fig 7: Removing Lower Crash Pad
Courtesy of HYUNDAI MOTOR CO.

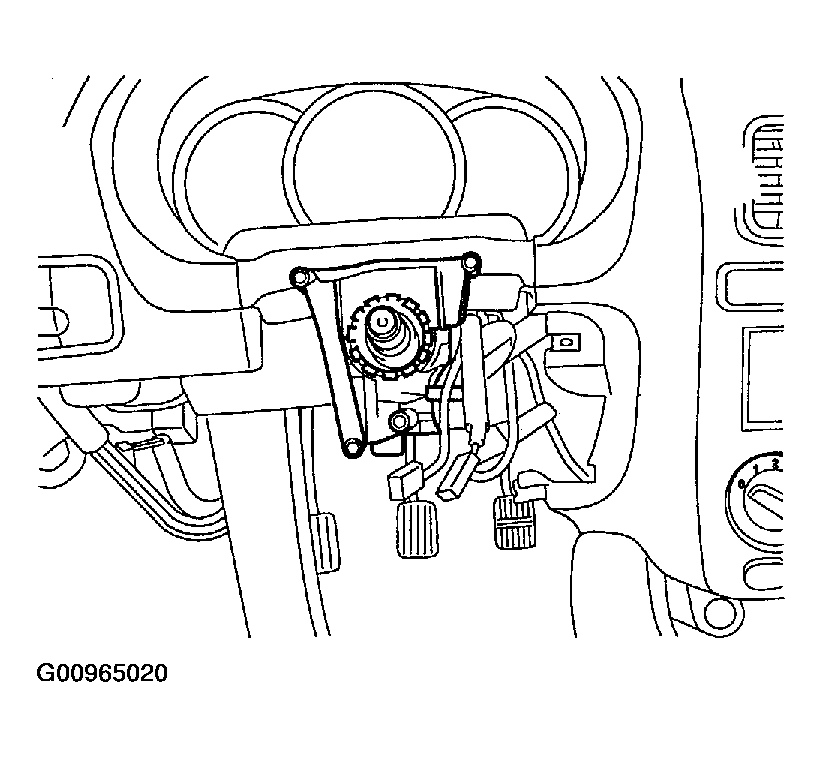

Remove the 4 bolts fixing the steering column shaft.

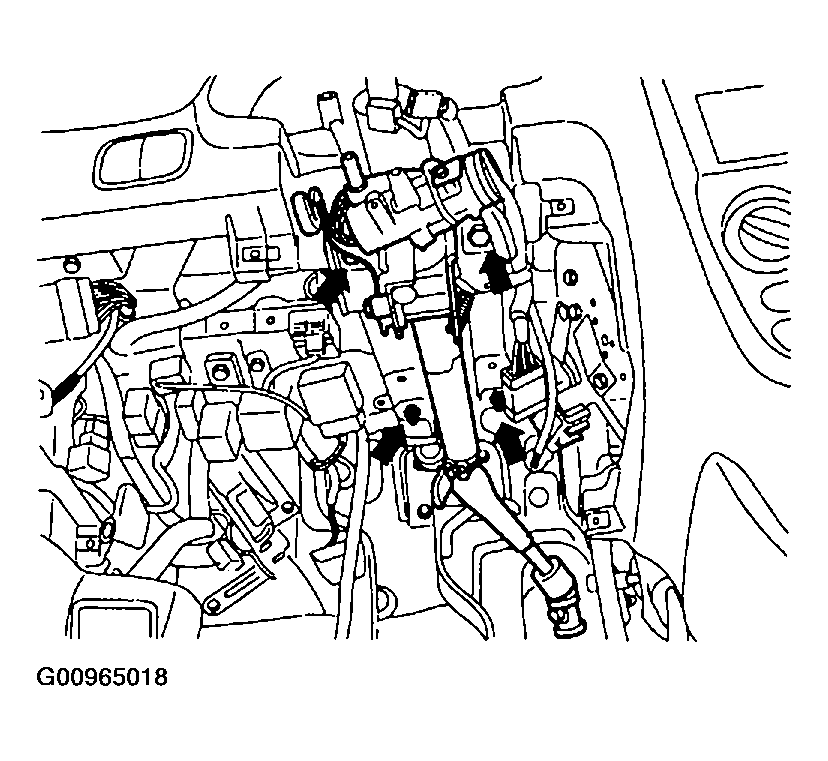

Fig 8: Identifying Steering Column Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt from the universal joint and gear box connecting portion.

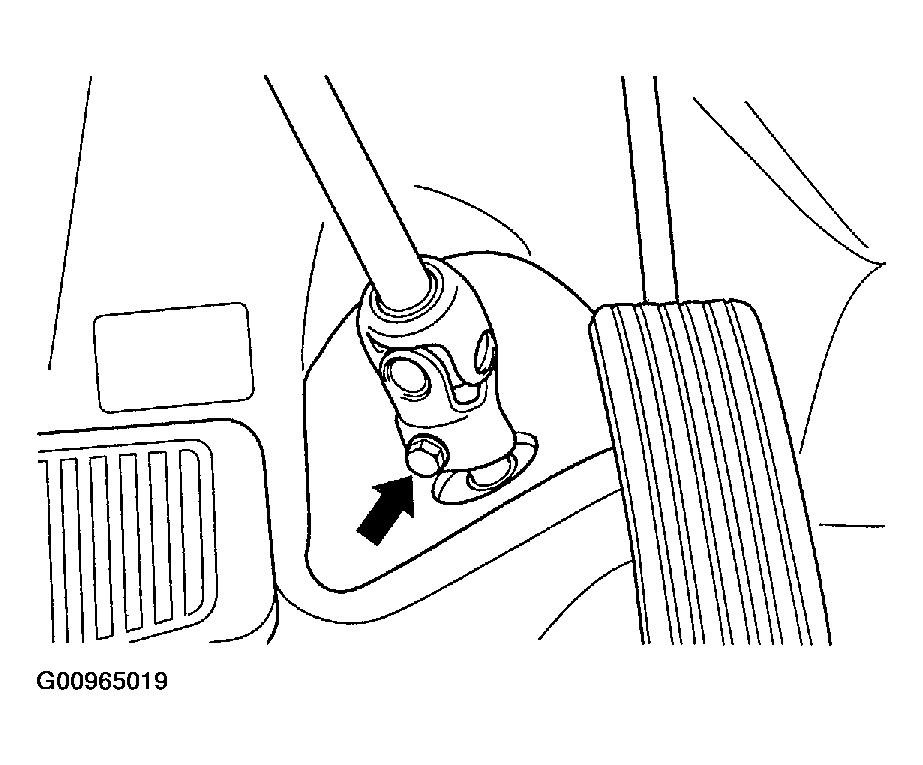

Fig 9: Identifying Universal Joint Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shaft assembly.

Fig 10: View Of Steering Column Shaft Assembly

Courtesy of HYUNDAI MOTOR CO.
