Wheel Alignment Specifications (03-50-002)

Publication date: 2003-07-01
Reference number: 03-50-002

WHEEL ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-50-002, Date of Issue: July, 2003

HYUNDAI:	2003-2004 All
GROUP:	50 - Chassis

This bulletin provides 2004 and 2003 model year vehicle wheel alignment specifications.

Specifications provided in these charts supersede any that have been previously published.

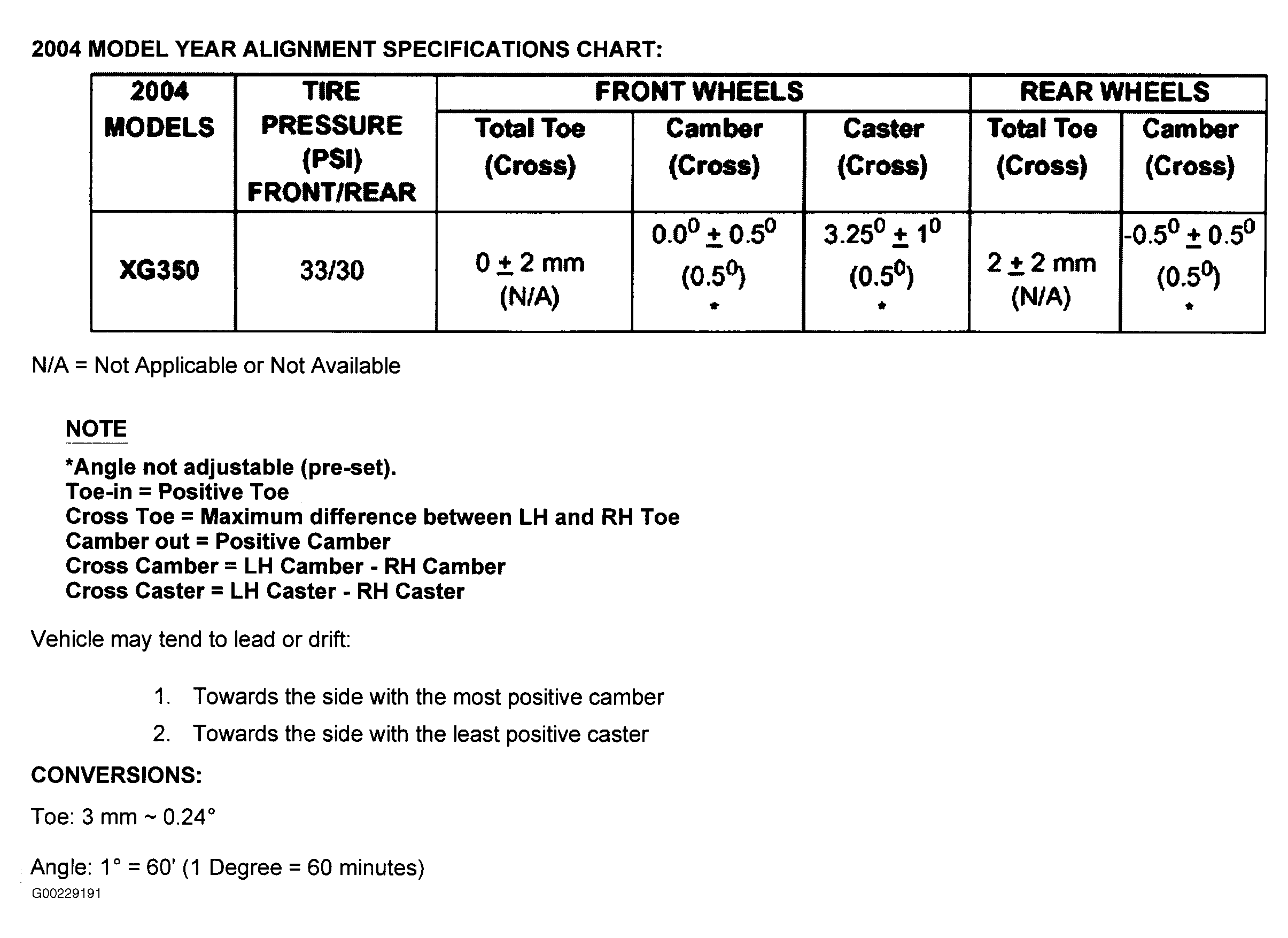

Fig 1: 2004 Model Year Alignment Specifications Chart

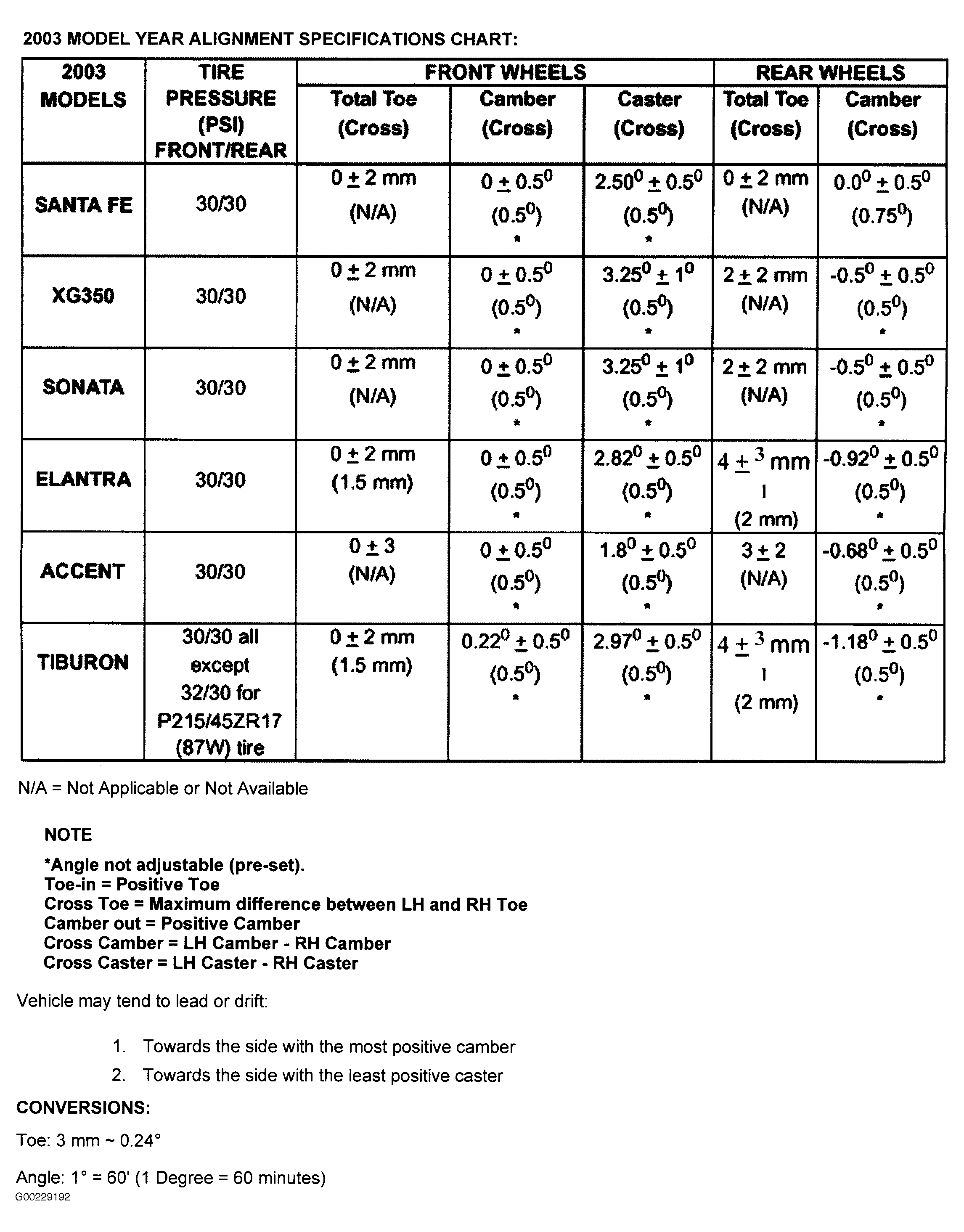

Fig 2: 2003 Model Year Alignment Specifications Chart
