Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Standard Oil Pressure Table
Standard Oil Pressure Table
WARNING:
This page is about a different variant/trim than selected.

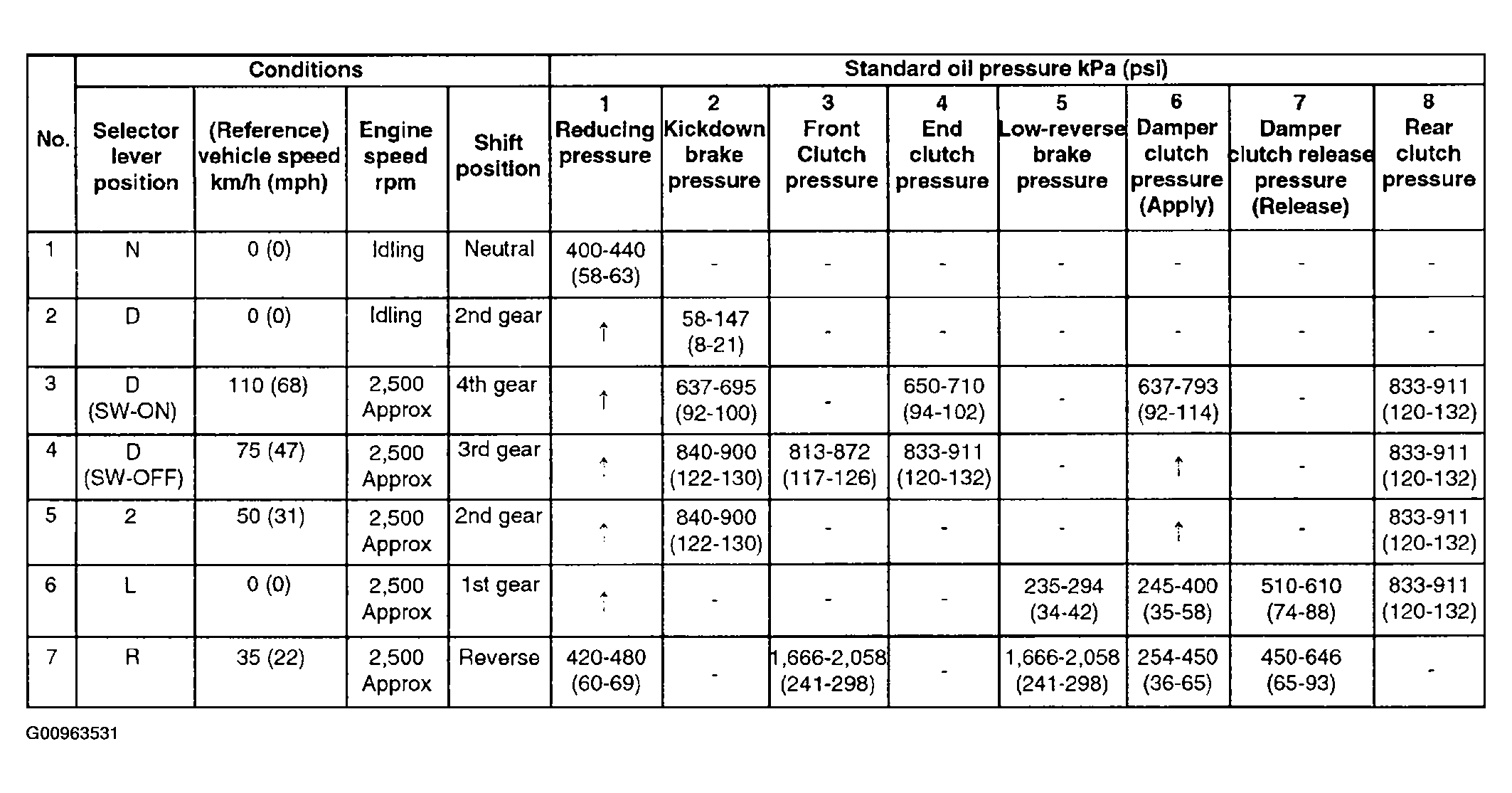

Fig 1: Standard Oil Pressure Table
Courtesy of HYUNDAI MOTOR CO.
