Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Notes
Inspection Chart For Trouble Symptoms: Notes
WARNING:
This page is about a different variant/trim than selected.

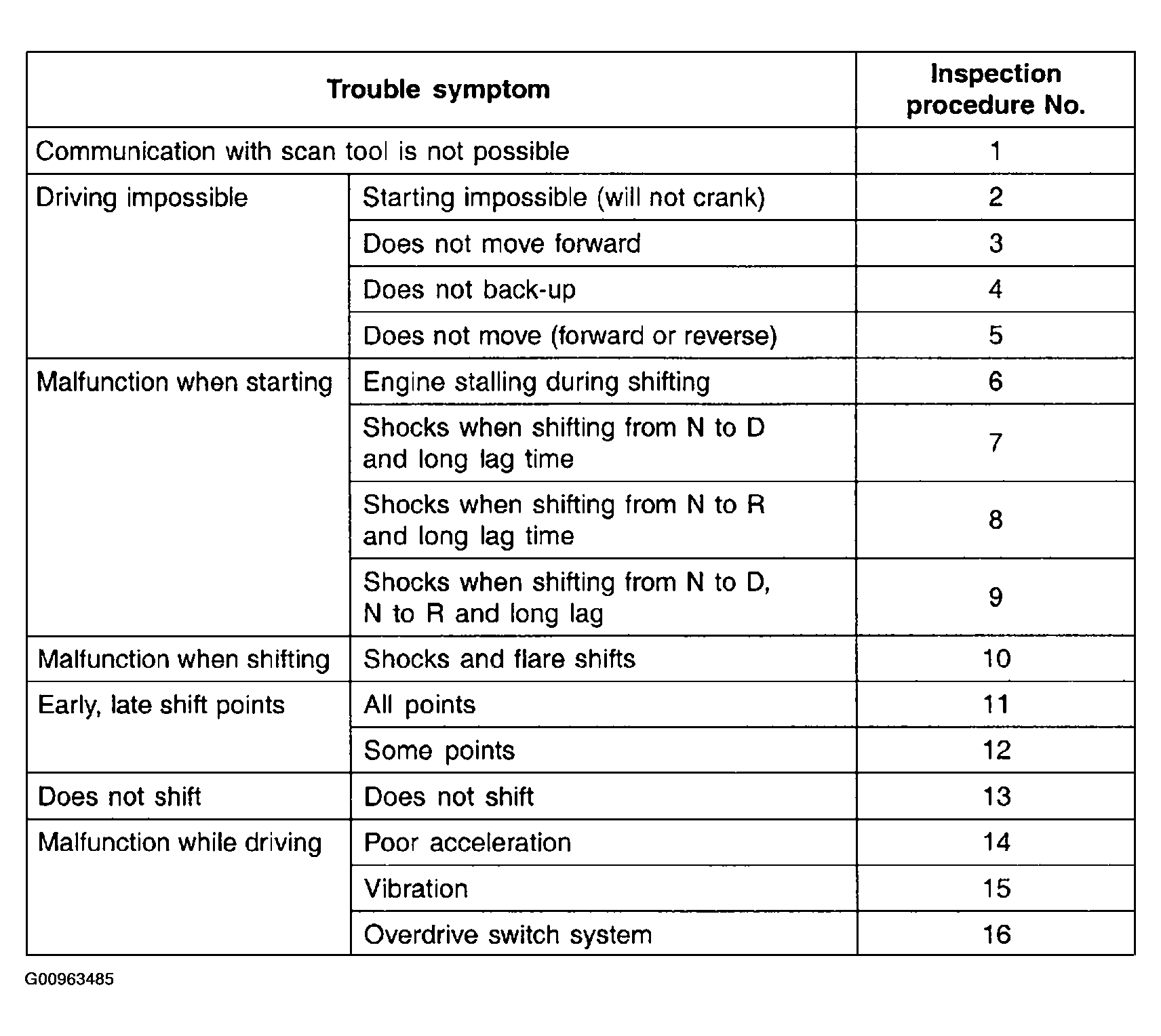

Fig 1: Trouble Symptom & Inspection Procedure Table
Courtesy of HYUNDAI MOTOR CO.
