Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 9
Inspection Procedure 9
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Shocks When Shifting From N To D, N To R & Long Lag Time Probable Cause Table
Courtesy of HYUNDAI MOTOR CO.

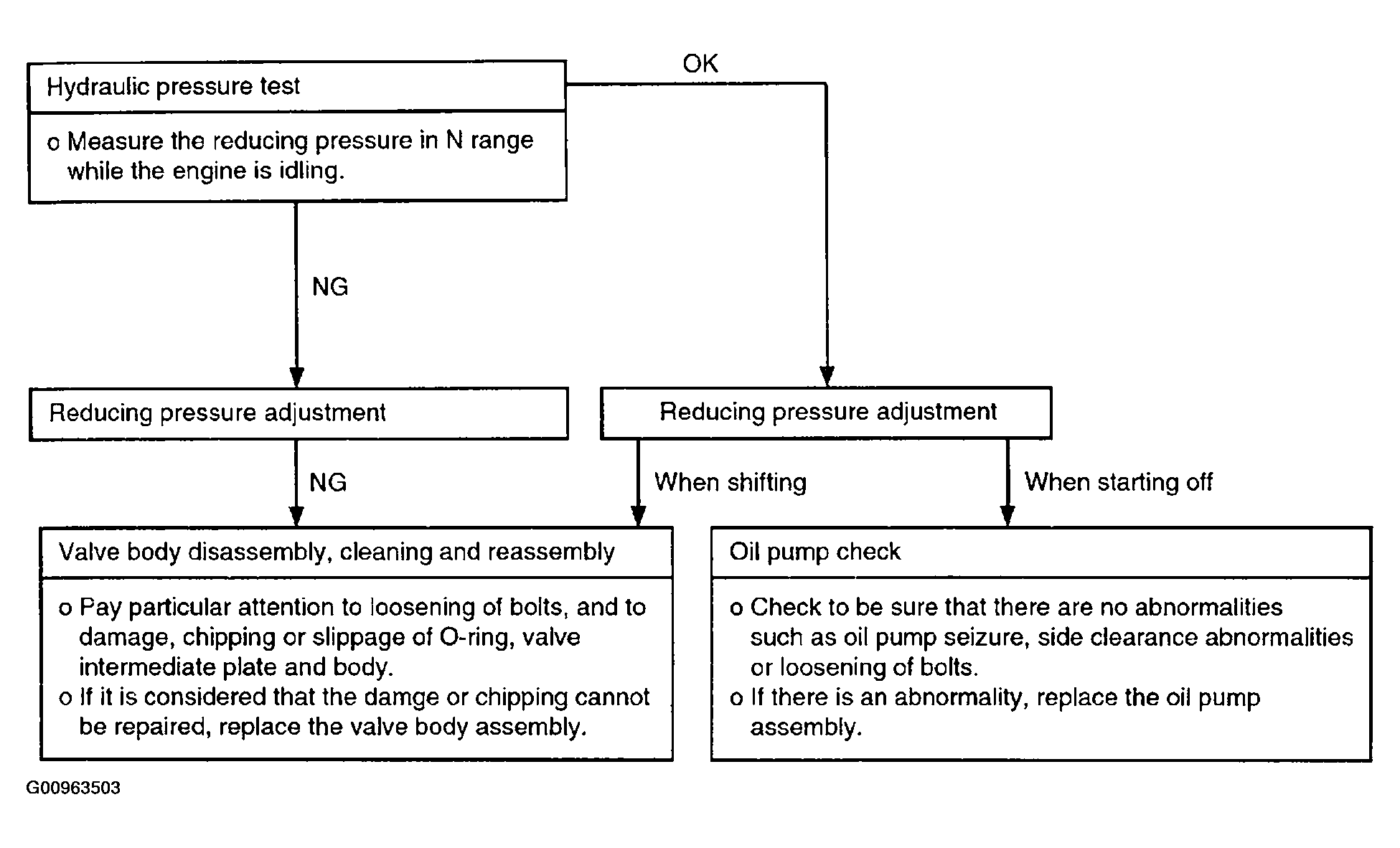

Fig 2: Shocks When Shifting From N To D, N To R & Long Lag Time Flow Chart
Courtesy of HYUNDAI MOTOR CO.
