Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 8
Inspection Procedure 8
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Shocks When Shifting From N To R & Long Lag Time Probable Cause Table
Courtesy of HYUNDAI MOTOR CO.

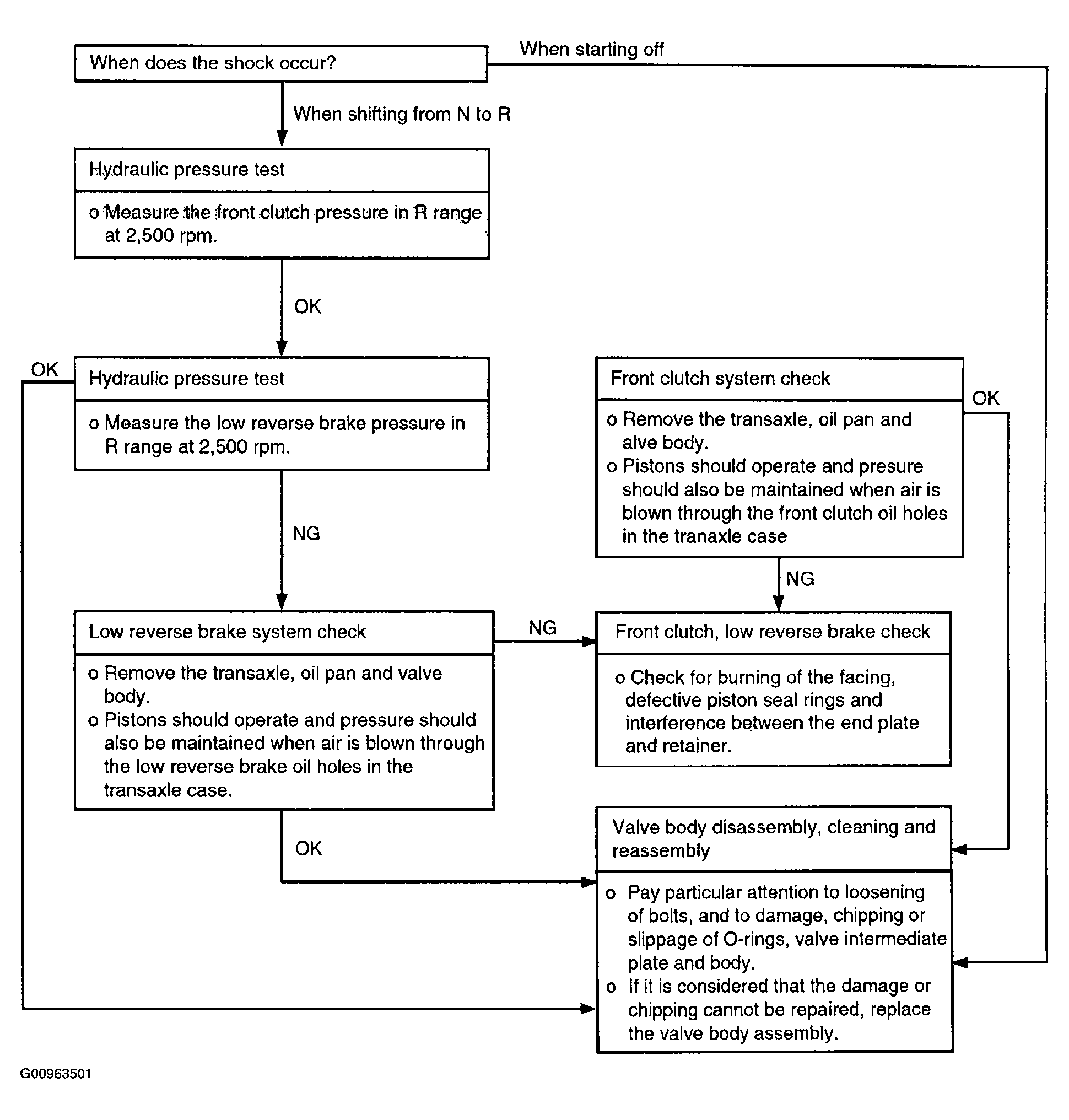

Fig 2: Shocks When Shifting From N To R & Long Lag Time Flow Chart
Courtesy of HYUNDAI MOTOR CO.
