Inspection Procedure 7

WARNING: This page is about a different variant/trim than selected.

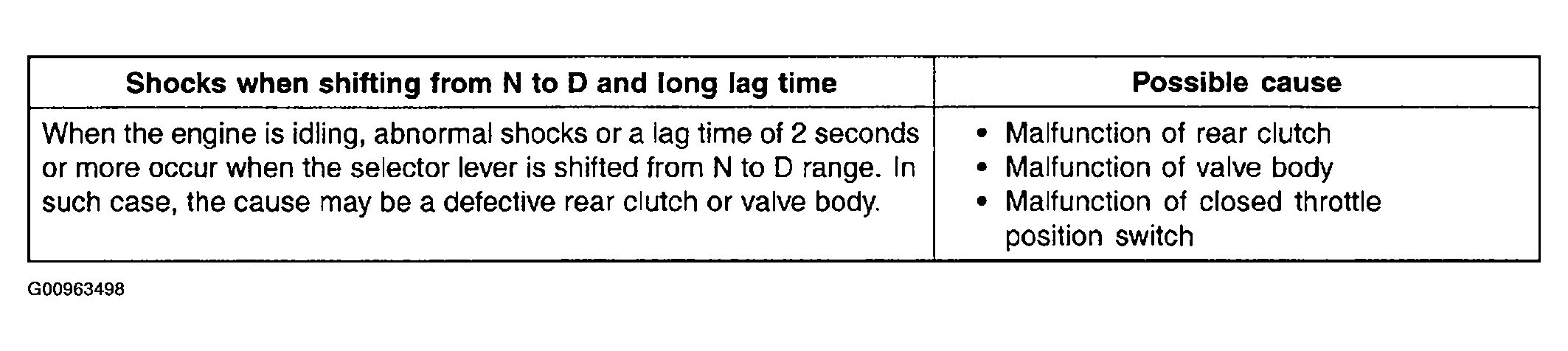

Fig 1: Shocks When Shifting From N To D & Long Lag Time Probable Cause Table
G00963498Courtesy of HYUNDAI MOTOR CO.

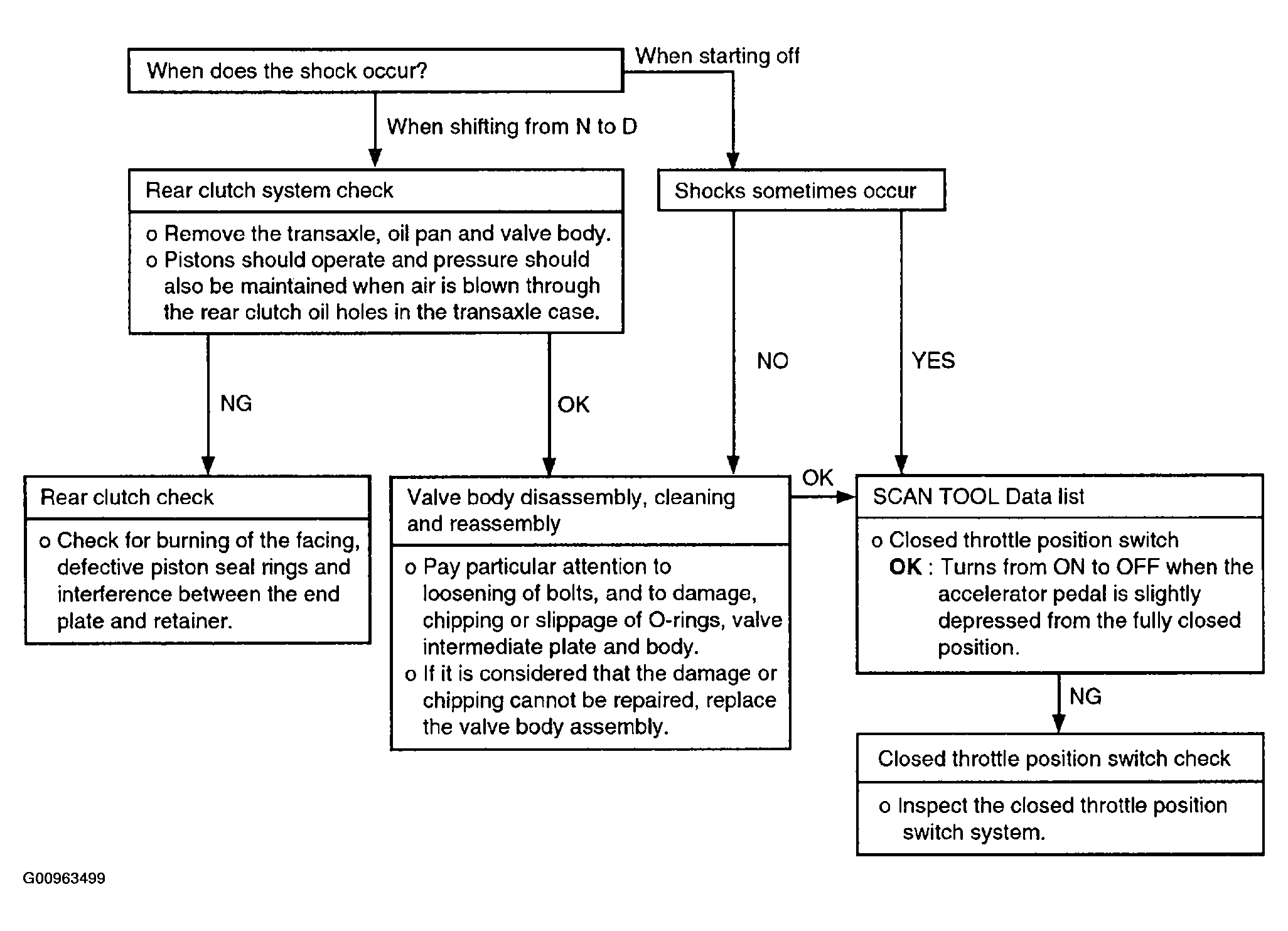

Fig 2: Shocks When Shifting From N To D & Long Lag Time Flow Chart
G00963499Courtesy of HYUNDAI MOTOR CO.
