Inspection Procedure 5

WARNING: This page is about a different variant/trim than selected.
Fig 1: Vehicle Does Not Move Forward Or Reverse Probable Cause Table
G00963494Courtesy of HYUNDAI MOTOR CO.

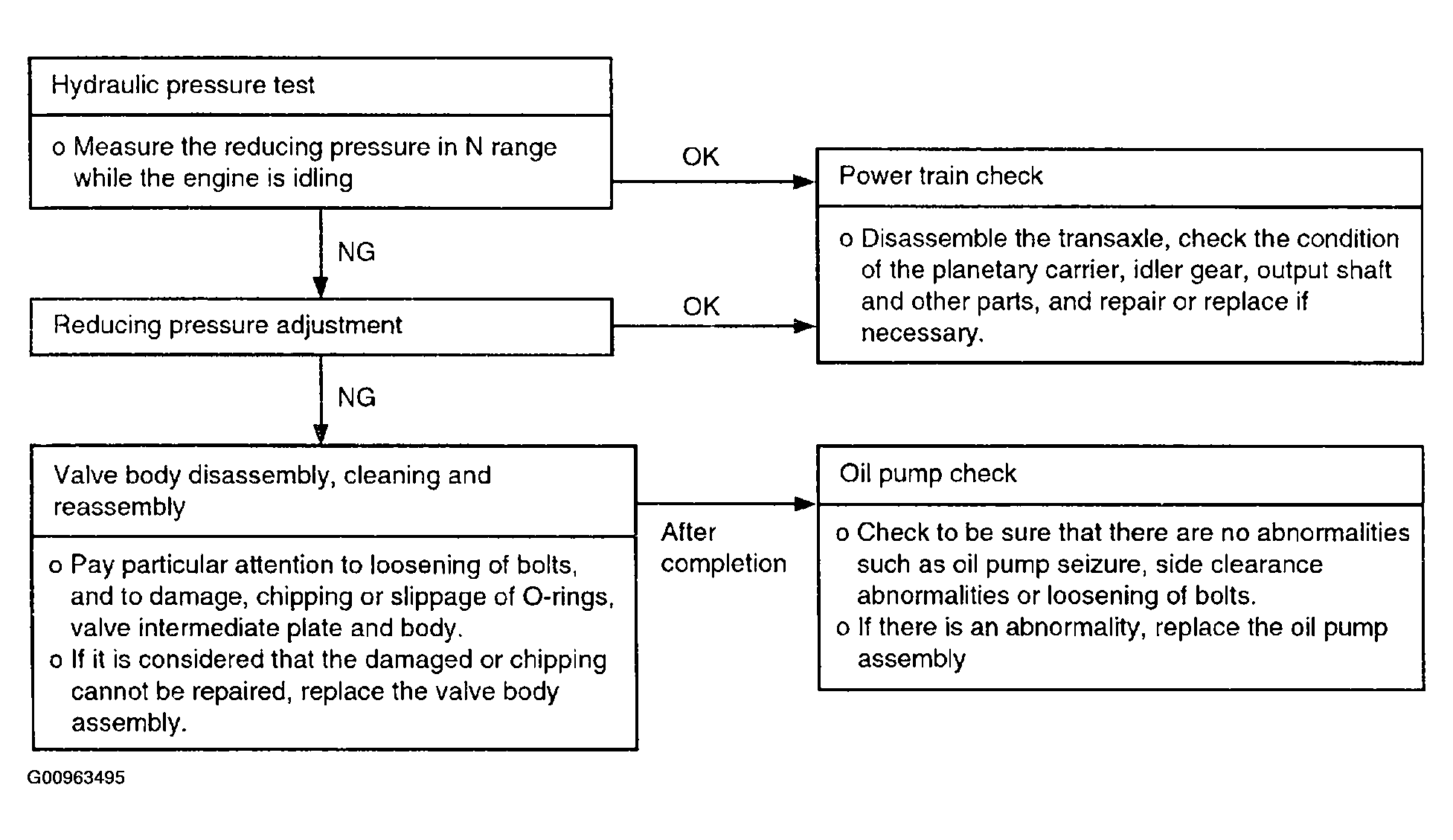

Fig 2: Vehicle Does Not Move Forward Or Reverse Flow Chart
G00963495Courtesy of HYUNDAI MOTOR CO.
