Inspection Procedure 4

WARNING: This page is about a different variant/trim than selected.
Fig 1: Vehicle Does Not Back-Up Probable Cause Table
G00963492Courtesy of HYUNDAI MOTOR CO.

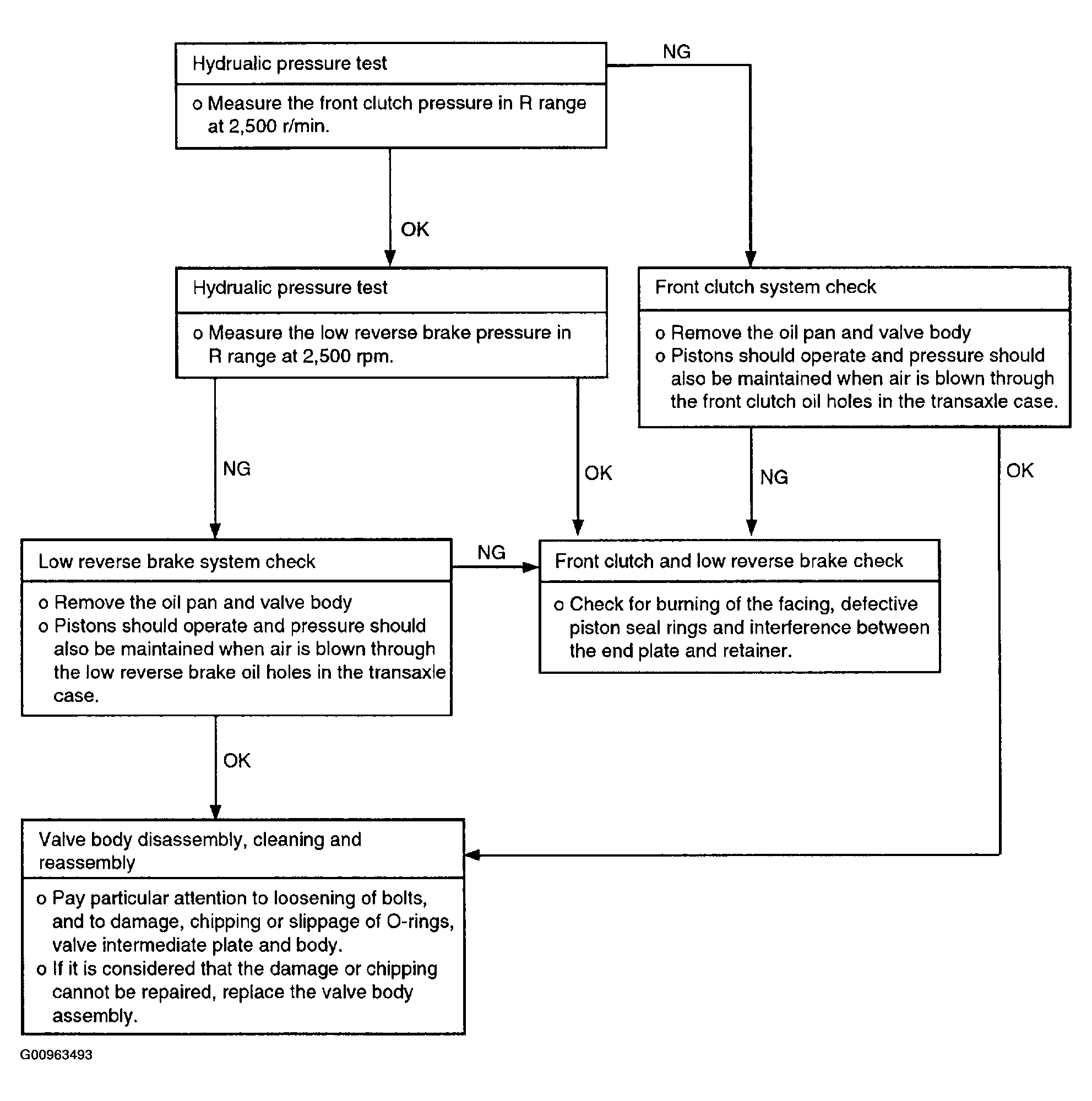

Fig 2: Vehicle Does Not Back-Up Flow Chart
G00963493Courtesy of HYUNDAI MOTOR CO.
