Inspection Procedure 15

WARNING: This page is about a different variant/trim than selected.
Fig 1: Vibration Probable Cause Table
G00963514Courtesy of HYUNDAI MOTOR CO.

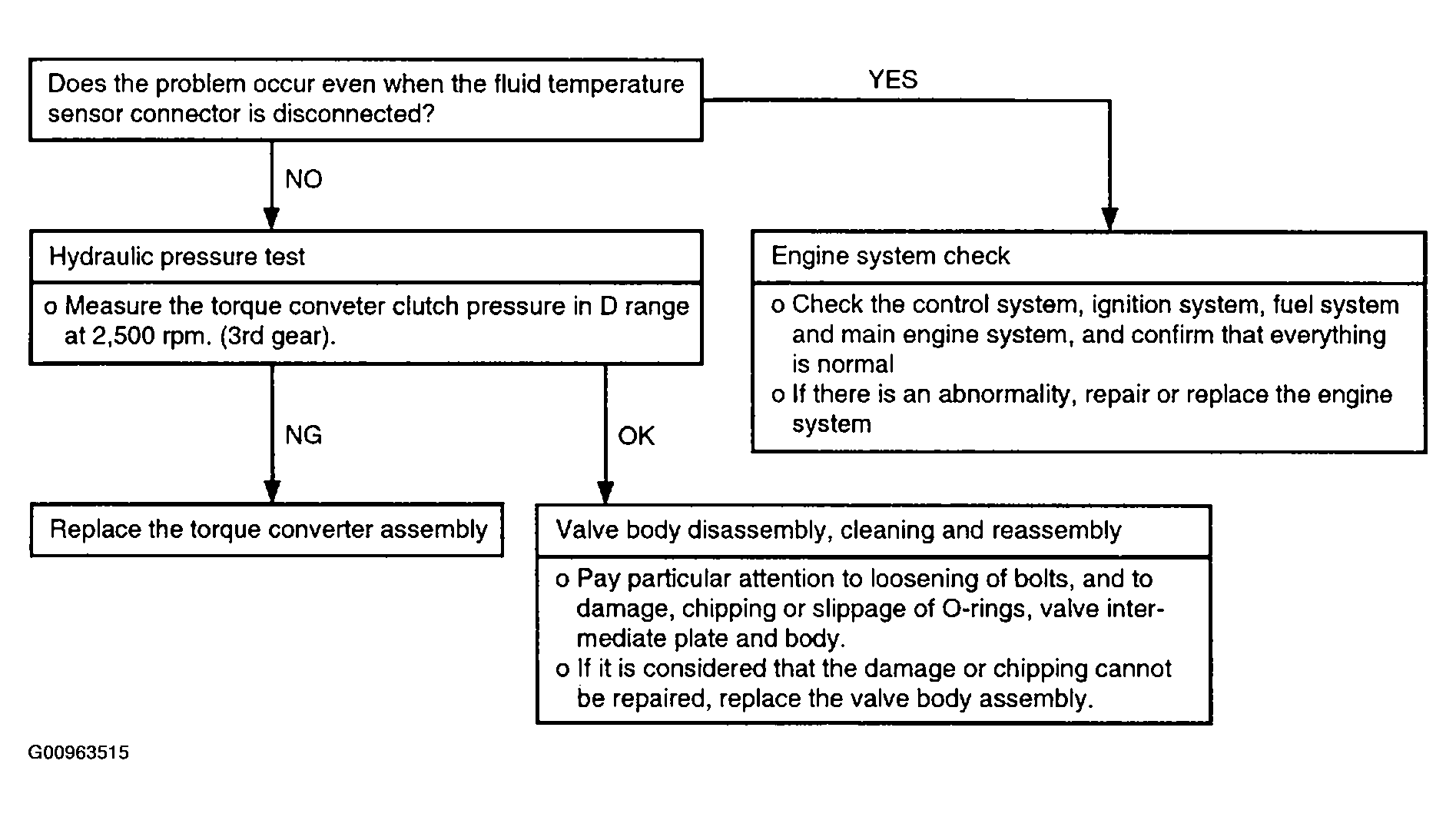

Fig 2: Vibration Flow Chart
G00963515Courtesy of HYUNDAI MOTOR CO.
