Inspection Procedure 12

WARNING: This page is about a different variant/trim than selected.
Fig 1: Some Points (Early, Late Shifting Points) Probable Cause Table
G00963508Courtesy of HYUNDAI MOTOR CO.

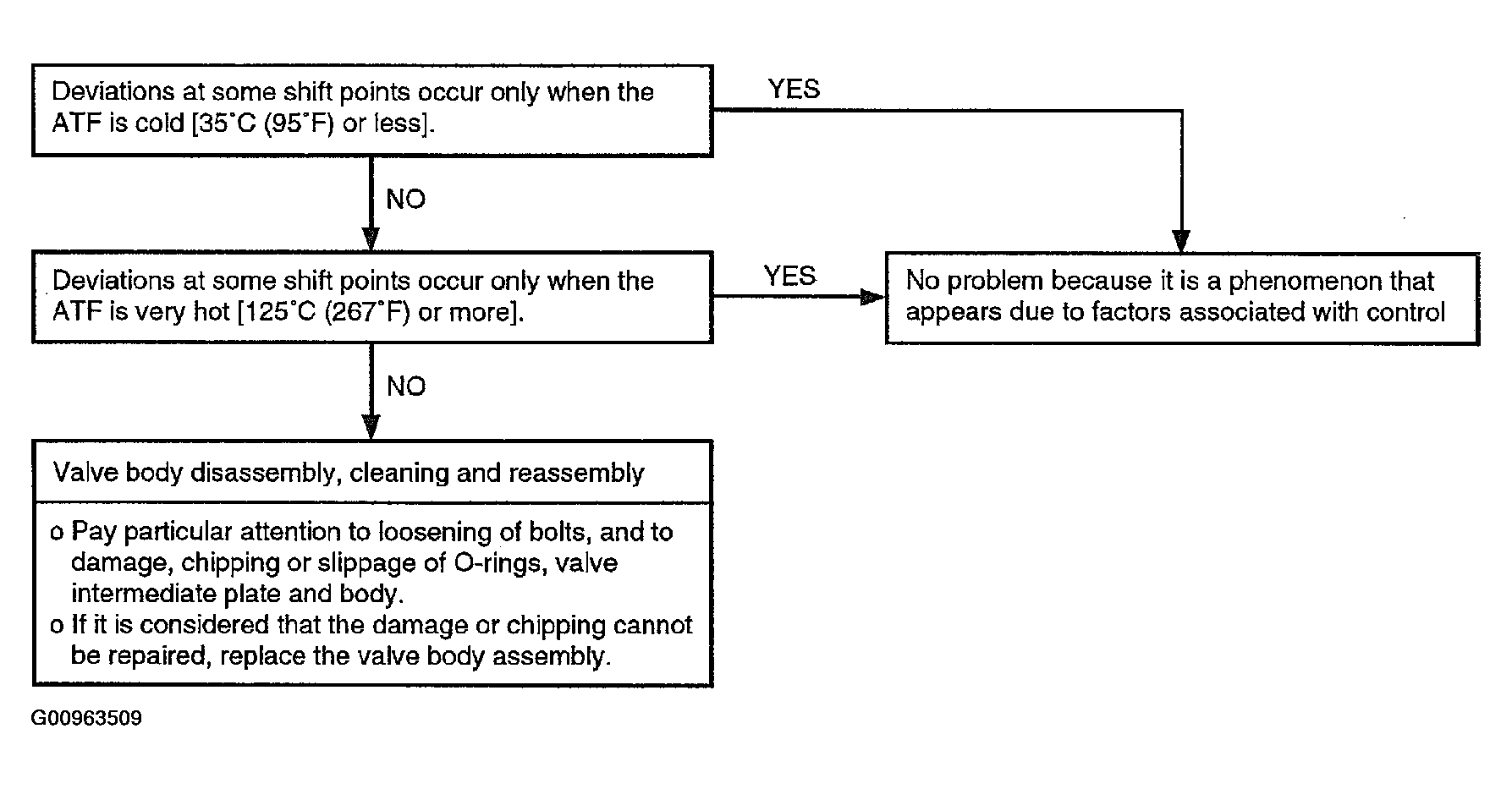

Fig 2: Some Points (Early, Late Shifting Points) Flow Chart
G00963509Courtesy of HYUNDAI MOTOR CO.
