Inspection Procedure 11

WARNING: This page is about a different variant/trim than selected.
Fig 1: All Points (Early, Late Shifting Points) Probable Cause Table
G00963506Courtesy of HYUNDAI MOTOR CO.

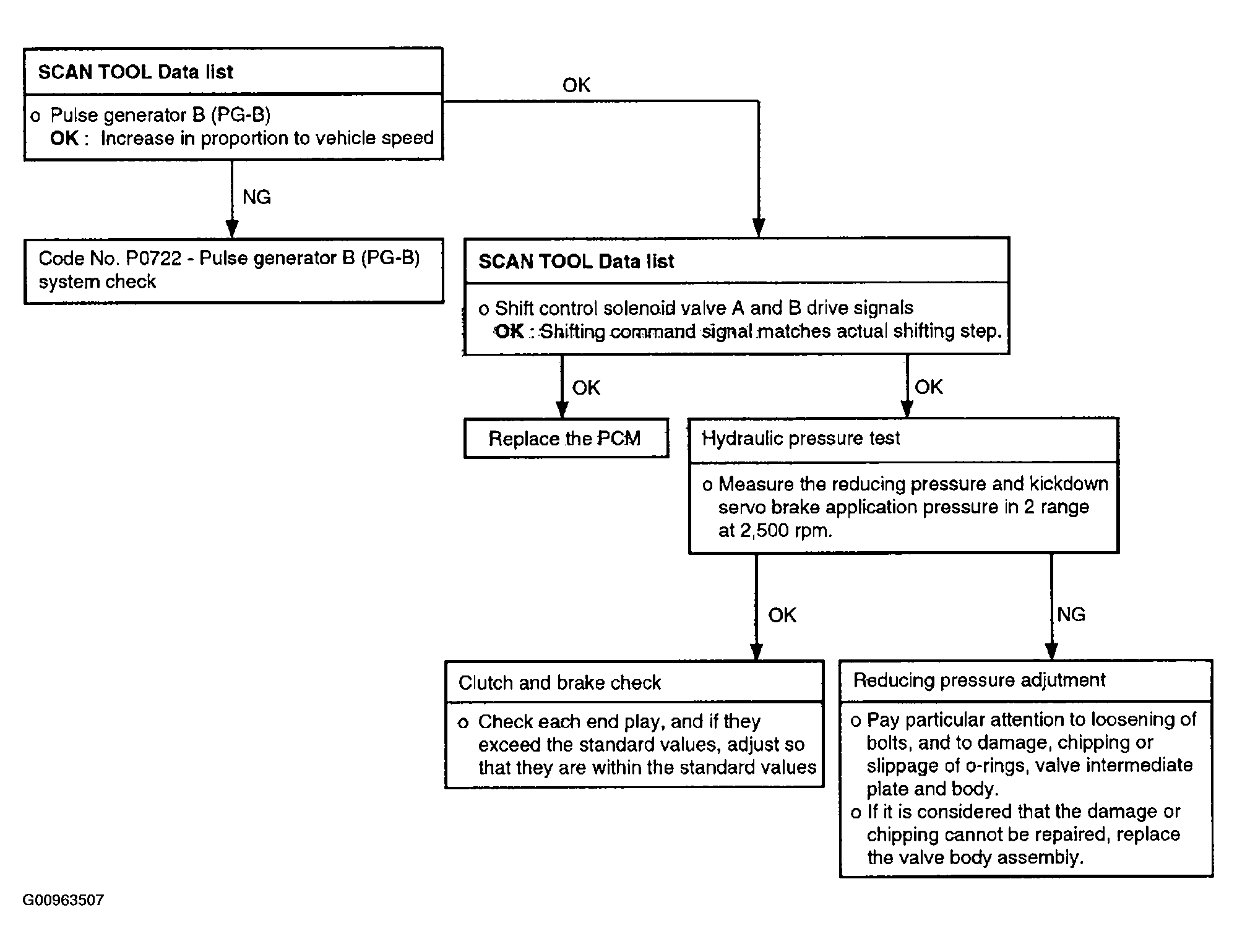

Fig 2: All Points (Early, Late Shifting Points) Flow Chart
G00963507Courtesy of HYUNDAI MOTOR CO.
