Manual Valve

WARNING: This page is about a different variant/trim than selected.

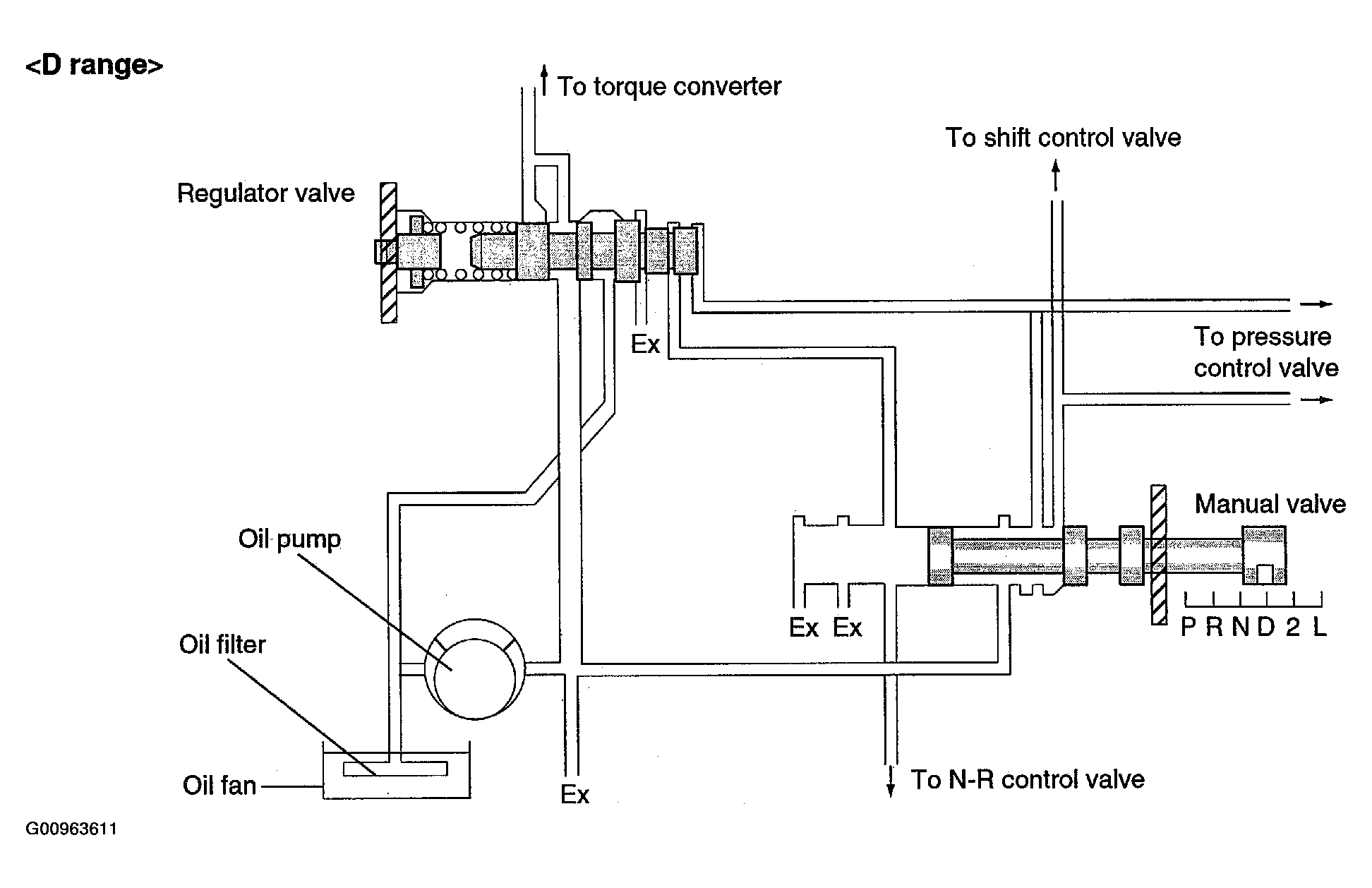

Fig 1: Manual Valve Hydraulic Control System In D-Range
G00963611Courtesy of HYUNDAI MOTOR CO.

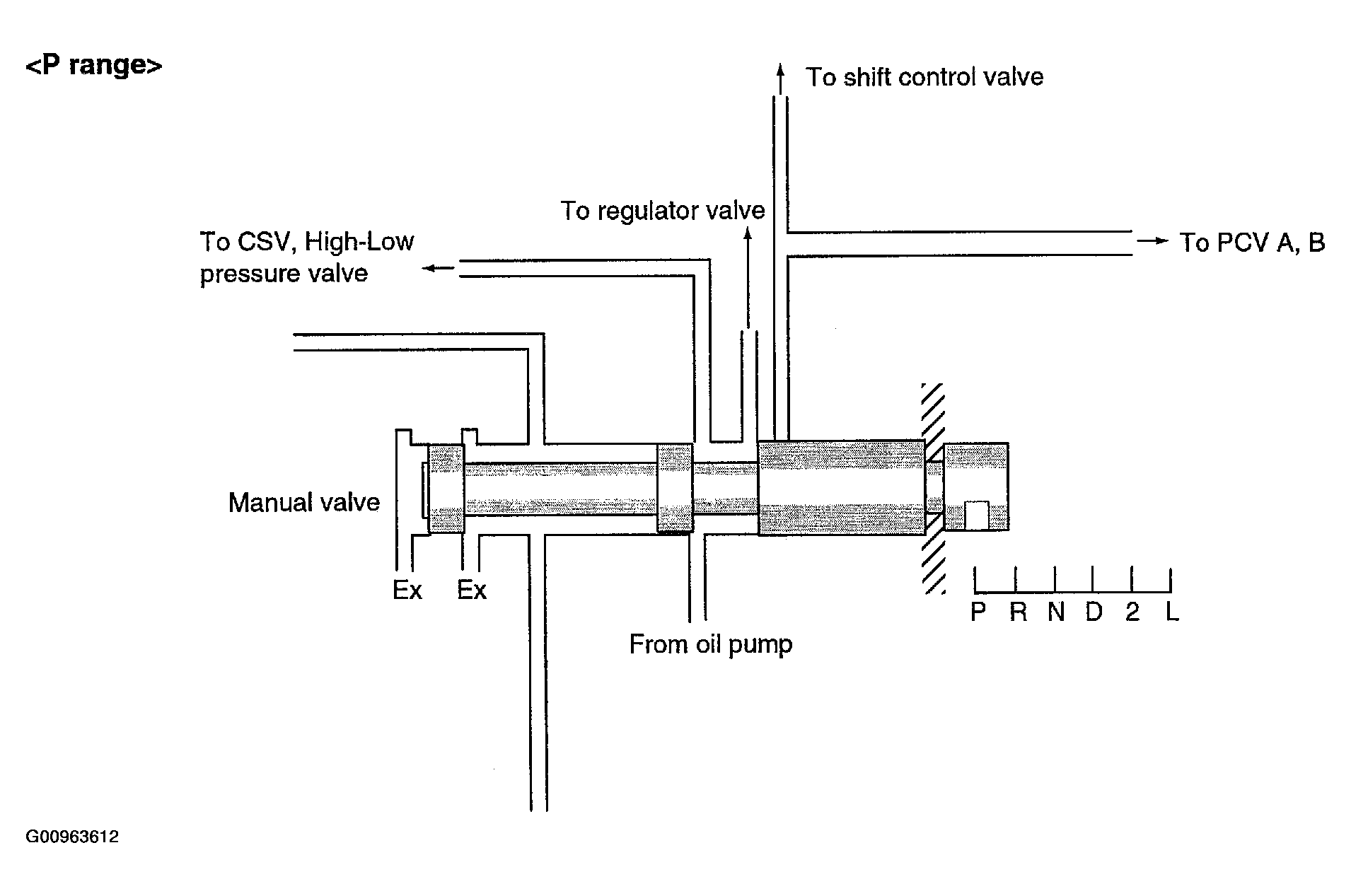

Fig 2: Manual Valve Hydraulic Control System In P-Range
G00963612Courtesy of HYUNDAI MOTOR CO.

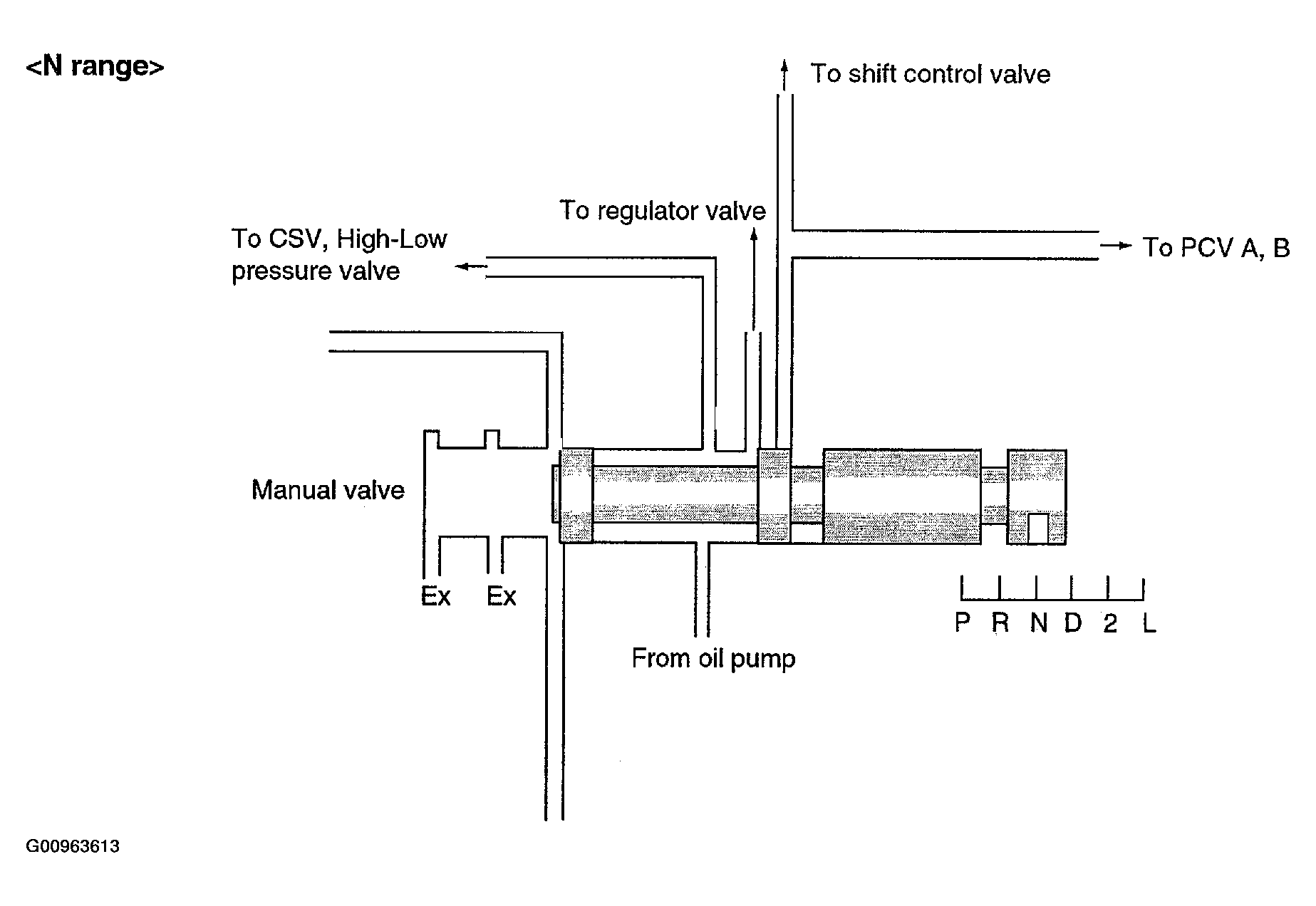

Fig 3: Manual Valve Hydraulic Control System In N-Range
G00963613Courtesy of HYUNDAI MOTOR CO.
