Troubleshooting Flow

WARNING: This page is about a different variant/trim than selected.

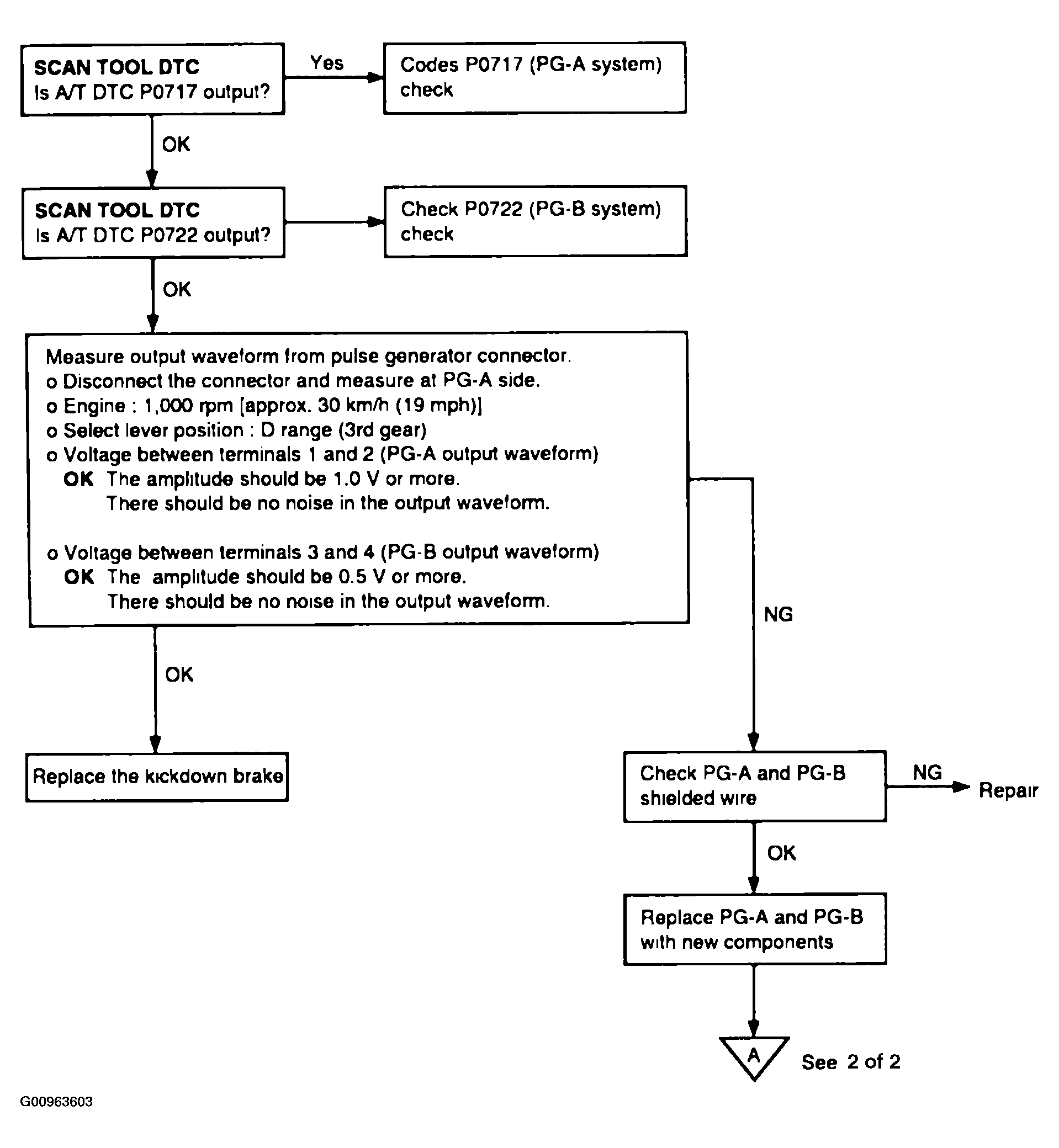

Fig 1: DTC P0734 Diagnostic Flow Chart (1 Of 2)
G00963603Courtesy of HYUNDAI MOTOR CO.

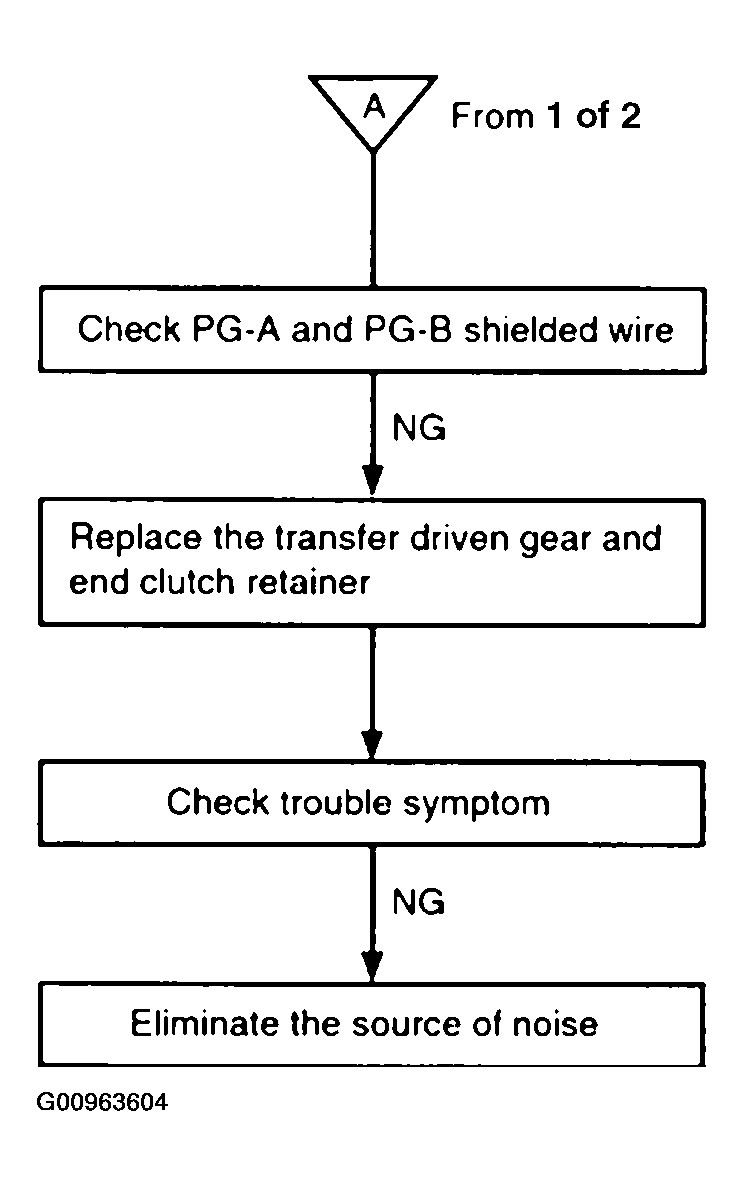

Fig 2: DTC P0734 Diagnostic Flow Chart (2 Of 2)
G00963604Courtesy of HYUNDAI MOTOR CO.
