Fuel Filler Cap: Operation

WARNING: This page is about a different car, the 2005 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

The fuel filler cap is equipped with a vacuum relief valve to prevent the escape of fuel vapor into the atmosphere.

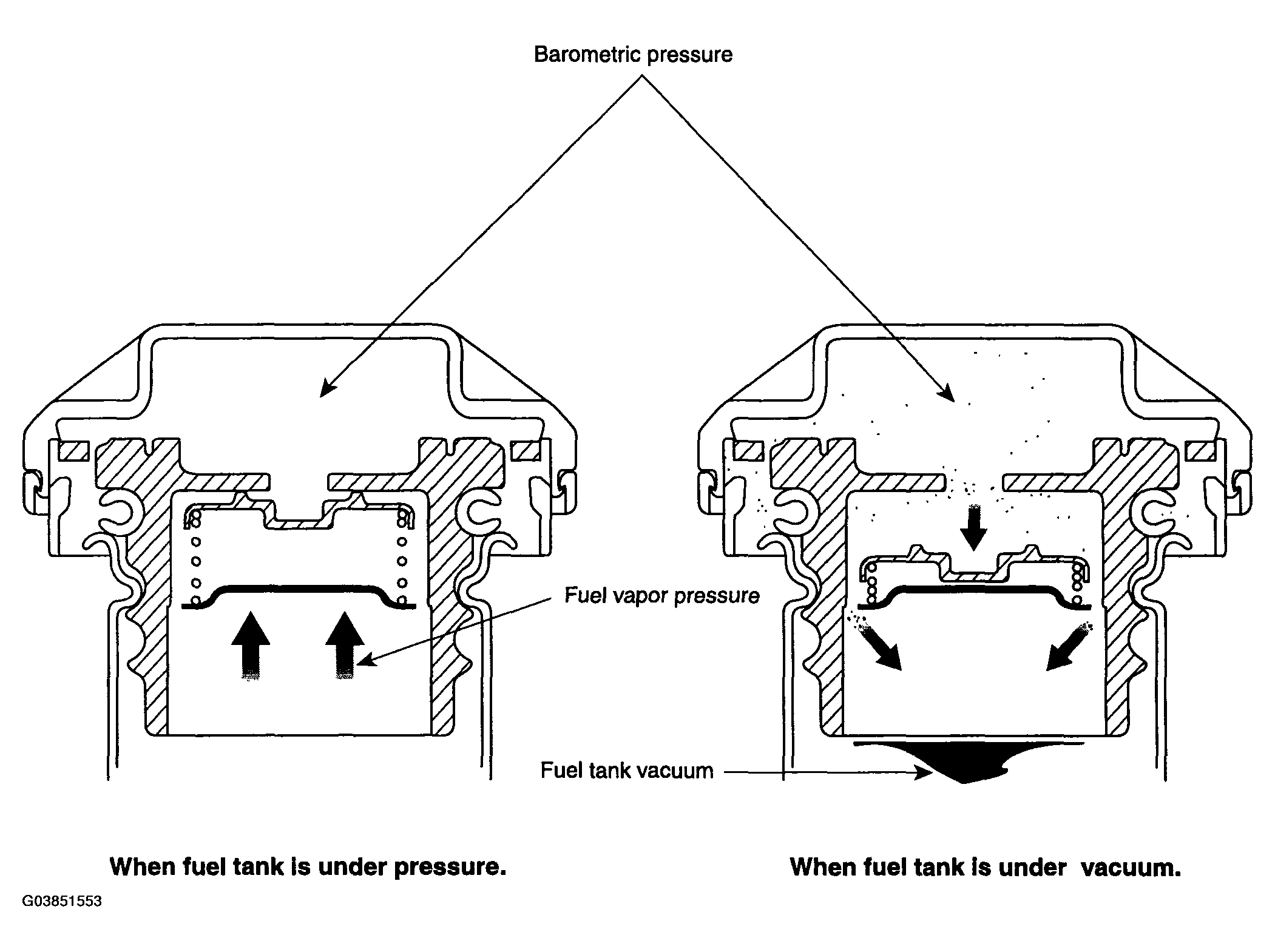

Fig 1: Identifying Fuel Filler Cap Operation
G03851553Courtesy of HYUNDAI MOTOR CO.
