Engine Coolant Pump: Components

WARNING: This page is about a different car, the 2004 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

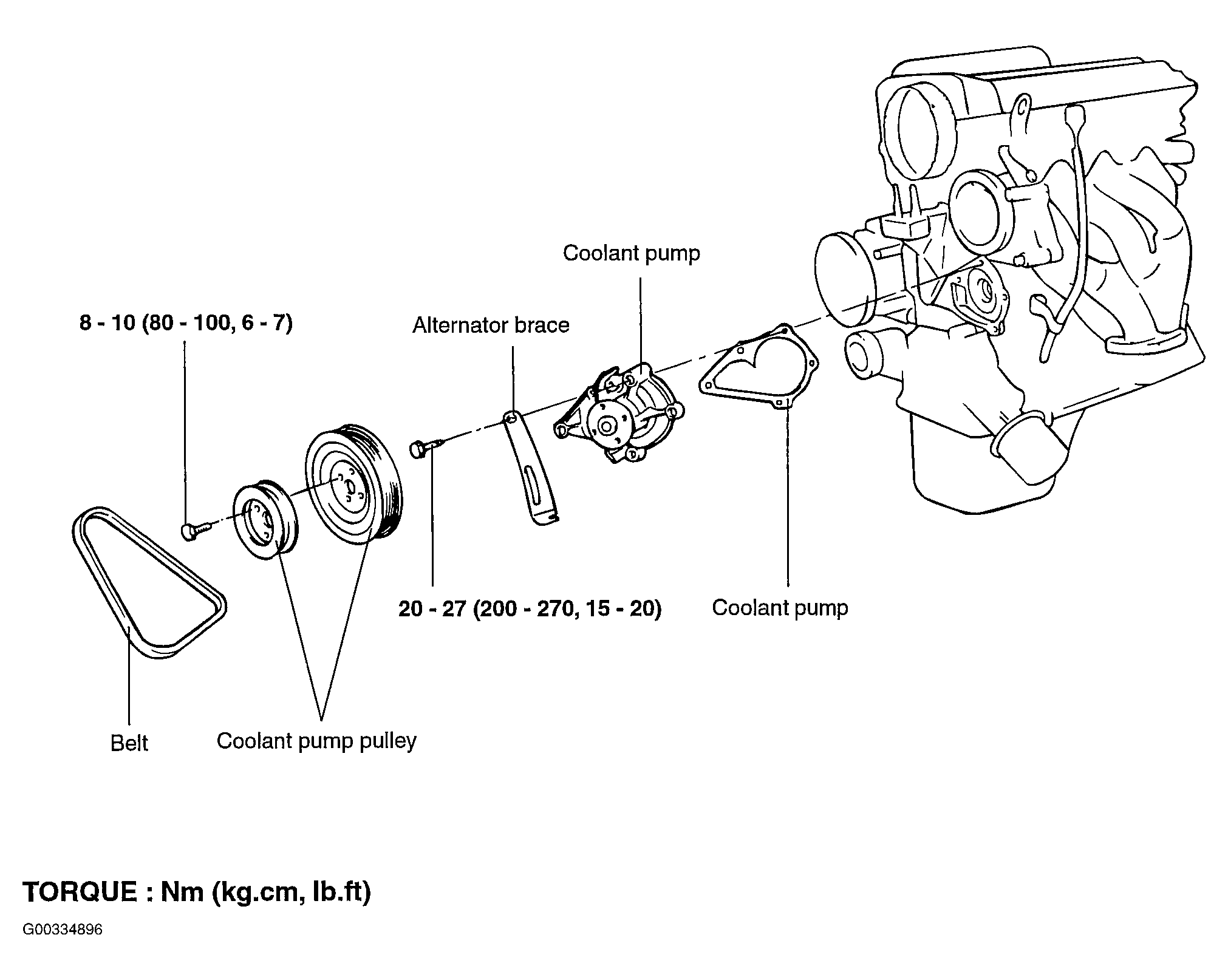

Fig 1: Identifying Engine Coolant Pump Components
G00334896Courtesy of HYUNDAI MOTOR CO.
