Test Procedures

NOTE: To identify circuits and circuit wire color, see appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.

NOTE: After any repair has been made. See AFTER-REPAIR PROCEDURE under SELF DIAGNOSTIC SYSTEM. For component removal and installation, see REMOVAL, OVERHAUL & INSTALLATION article.

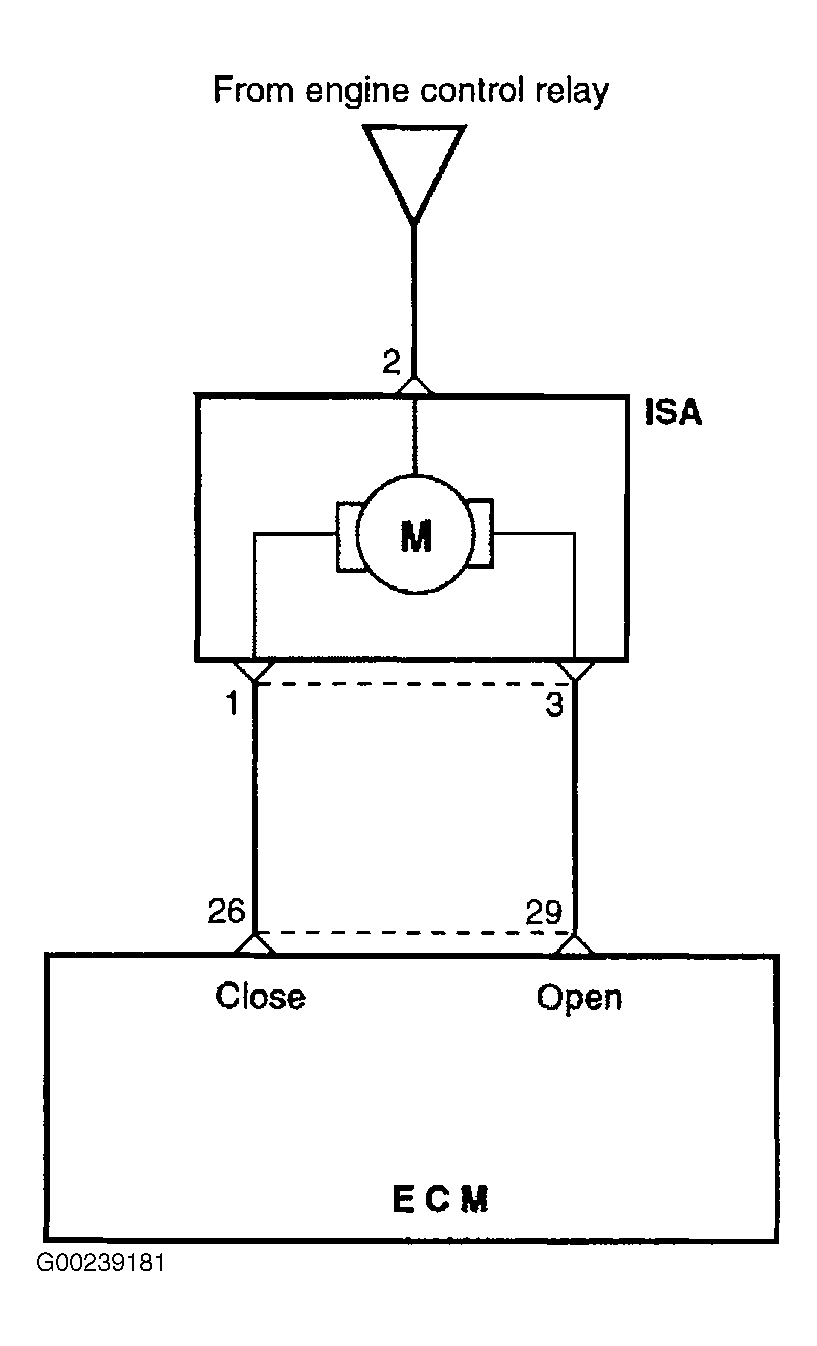

For circuit diagram, see Figure. For test procedure see Fig 1.

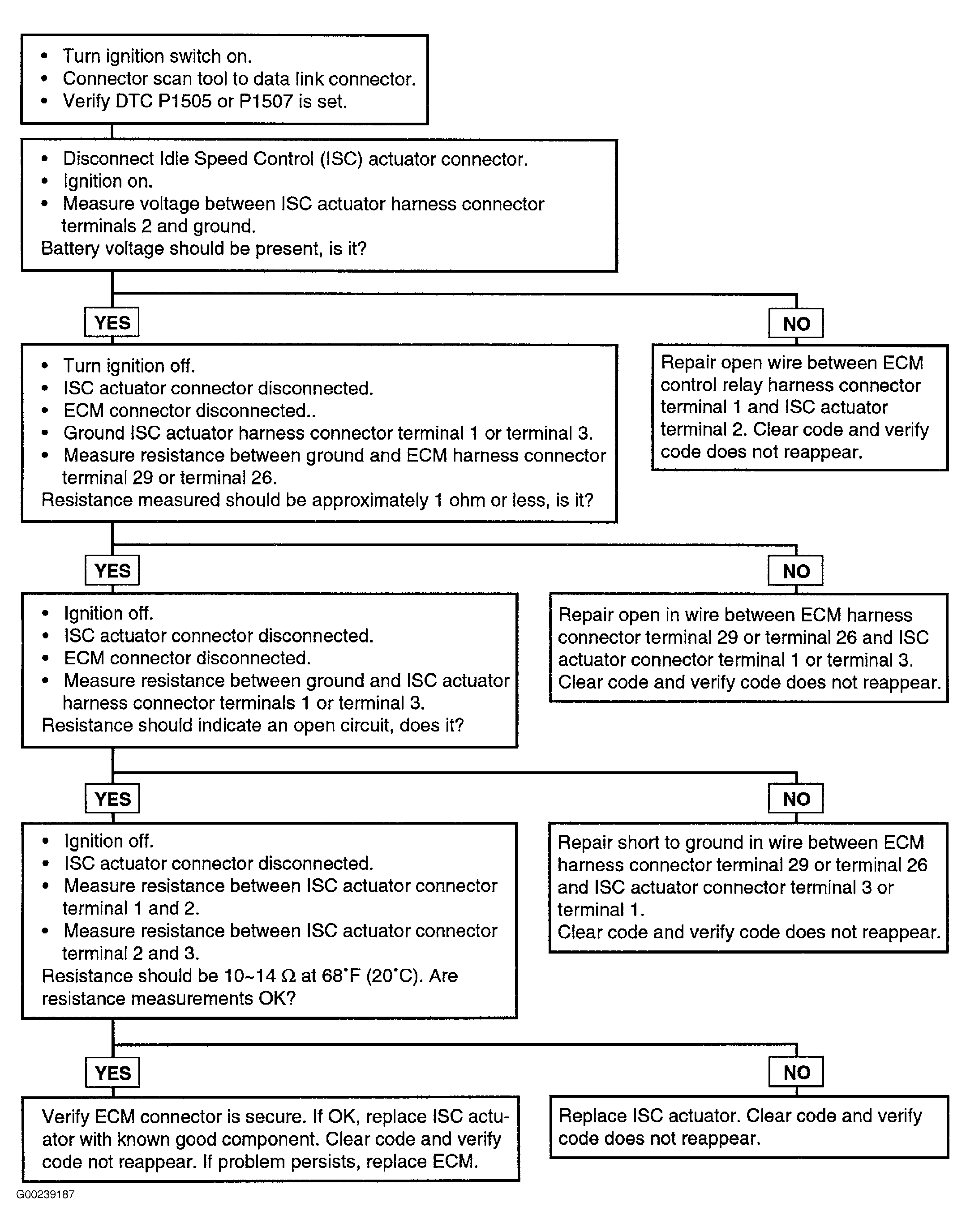

Fig 1: DTC P1505 & P1507 Test Procedure

Courtesy of HYUNDAI MOTOR CO.
