Test Procedure

NOTE: To identify circuits and circuit wire color, see appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.

NOTE: After any repair has been made. See AFTER-REPAIR PROCEDURE under SELF DIAGNOSTIC SYSTEM. For component removal and installation, see REMOVAL, OVERHAUL & INSTALLATION article.

For circuit diagram, see Figure. For test procedure see Fig 1 and Fig 2 .

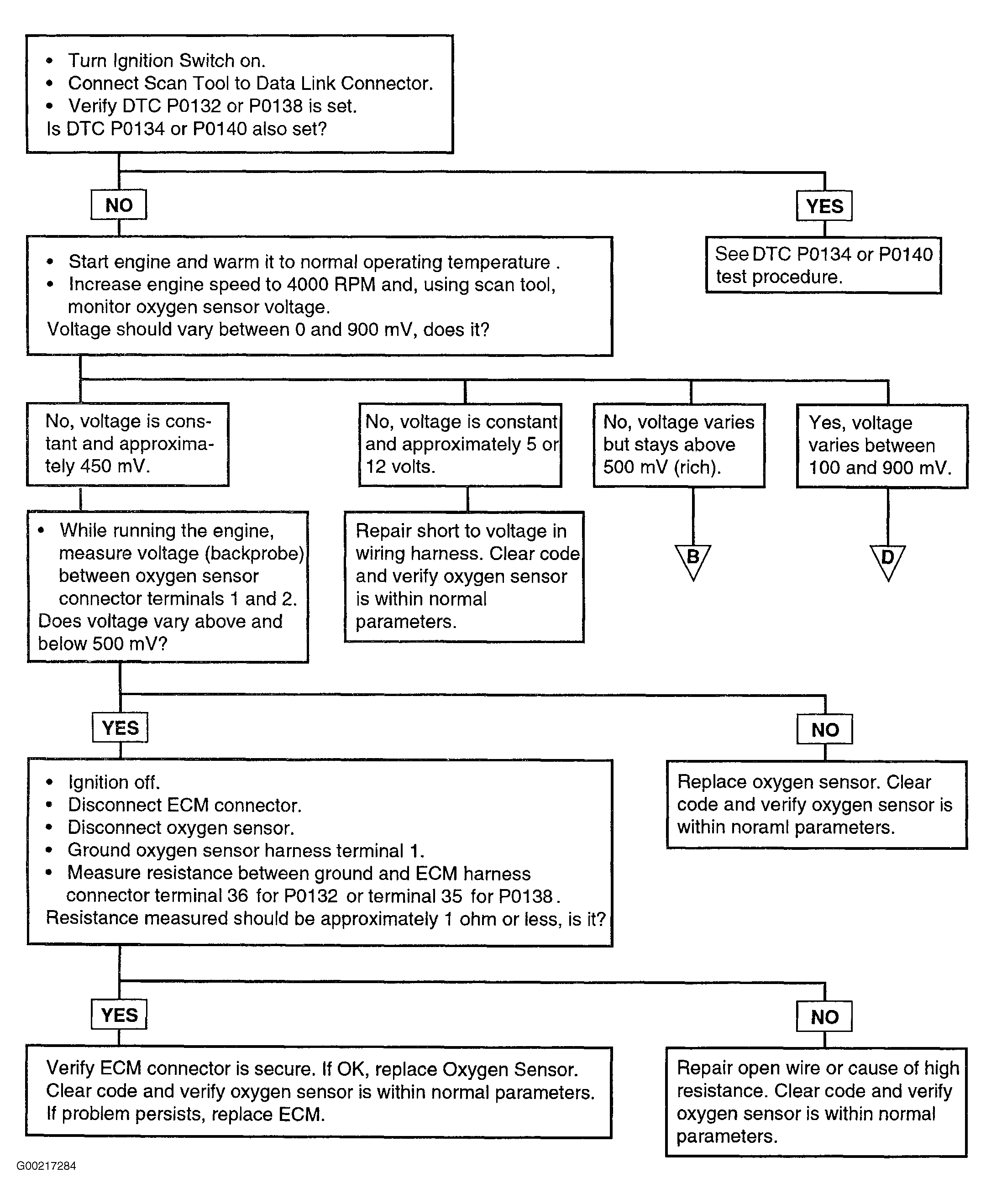

Fig 1: DTC P0132 & P0138 Test Procedure (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

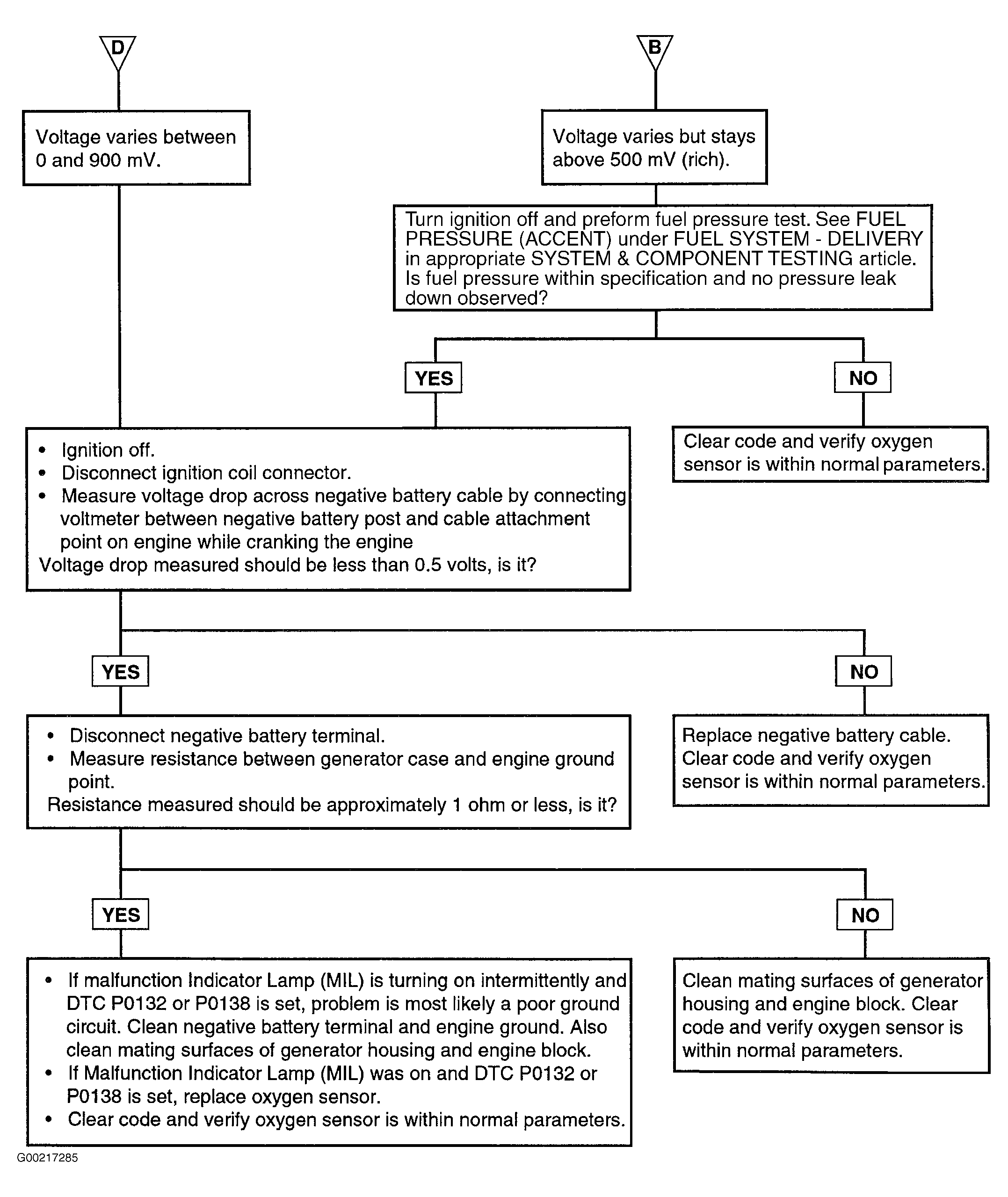

Fig 2: DTC P0132 & P0138 Test Procedure (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
