Spark Plug Wires

Removal and installation procedure for spark plug wires is not available from the manufacturer. When spark plug wires are replaced, ensure they are installed in correct configuration. See Fig 1, Fig 2 or Fig 3 .

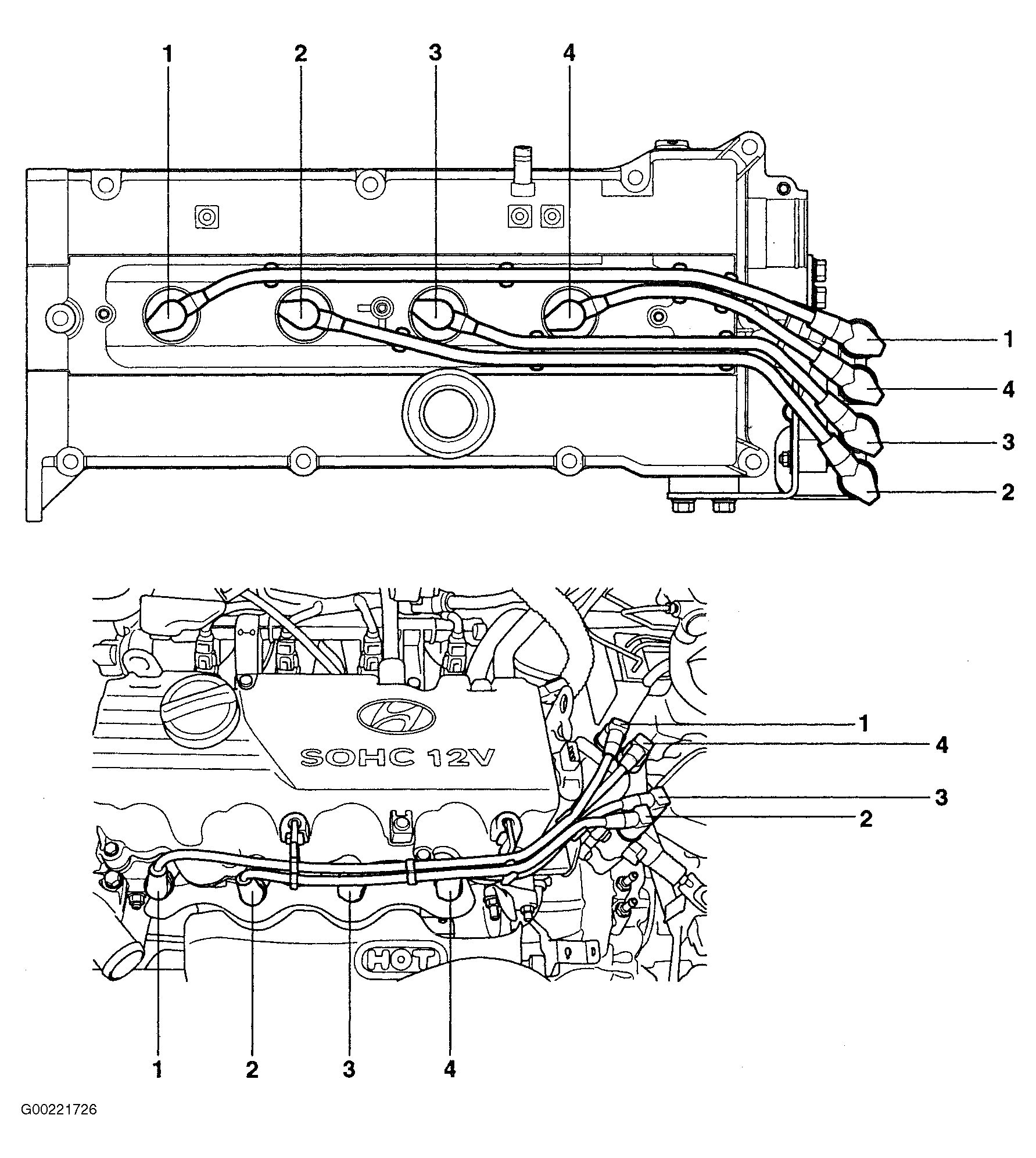

Fig 1: Routing Spark Plug Wires (4-Cylinder Engine)

Courtesy of HYUNDAI MOTOR CO.

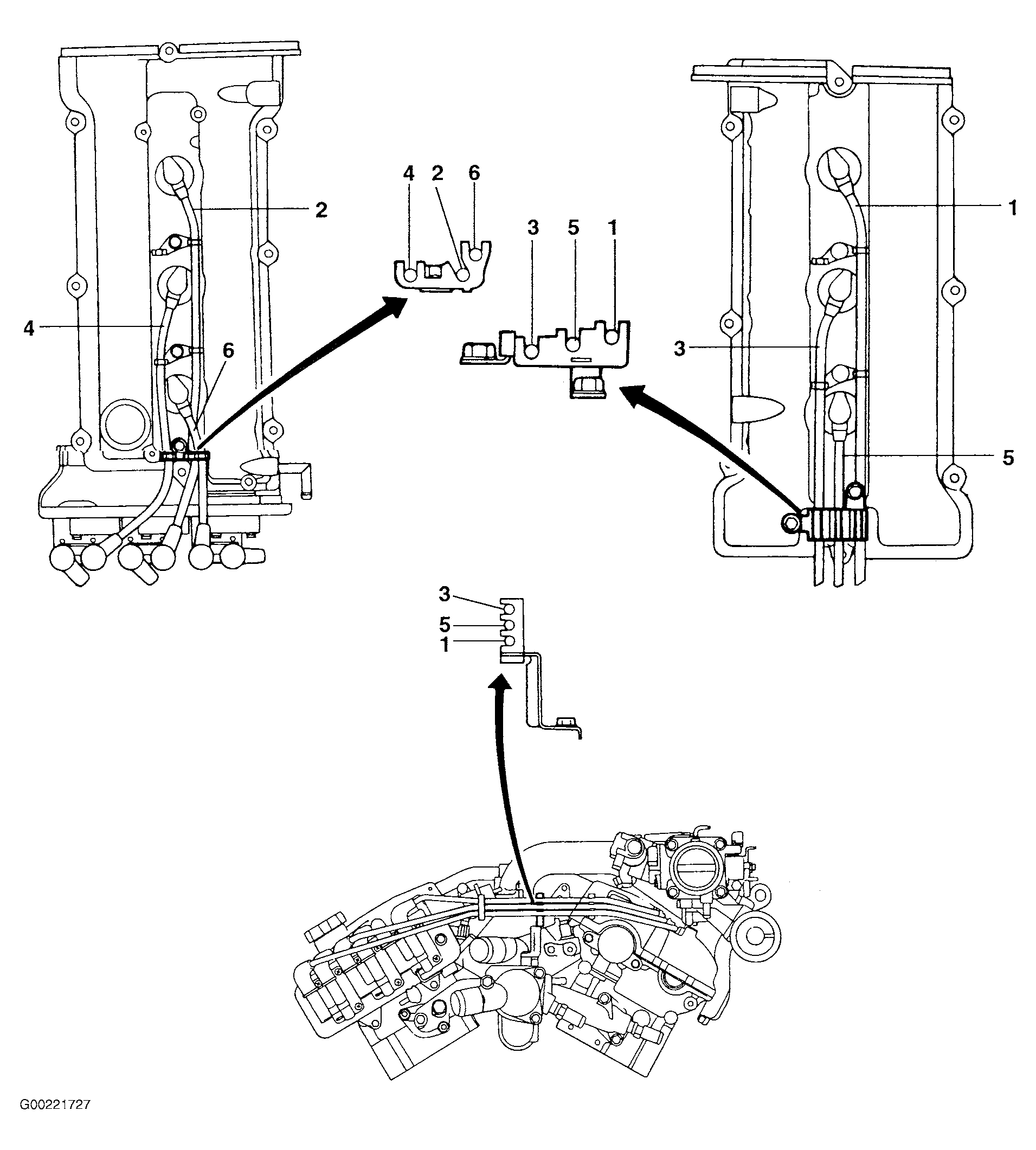

Fig 2: Routing Spark Plug Wires (2.7L - V6 Engine)

Courtesy of HYUNDAI MOTOR CO.

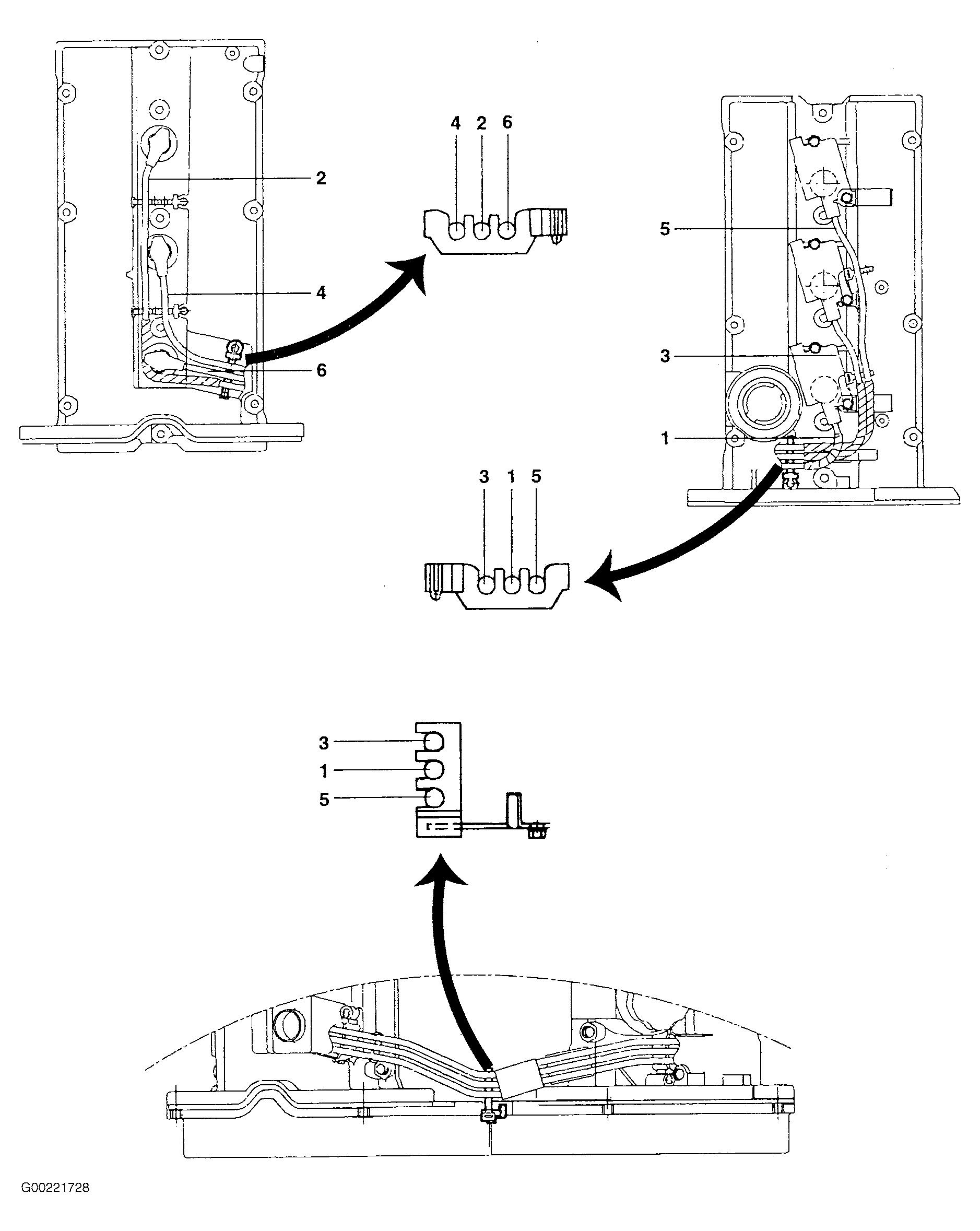

Fig 3: Routing Spark Plug Wires (3.5L - V6 Engine)

Courtesy of HYUNDAI MOTOR CO.
