Intake Manifold: Installation

  1. Replace the intake manifold gasket and install the intake manifold.
  2. Install the intake manifold stay.
  3. Install the delivery pipe with the fuel injectors.
    CAUTION: Be careful not to drop the injectors when removing the delivery pipe.

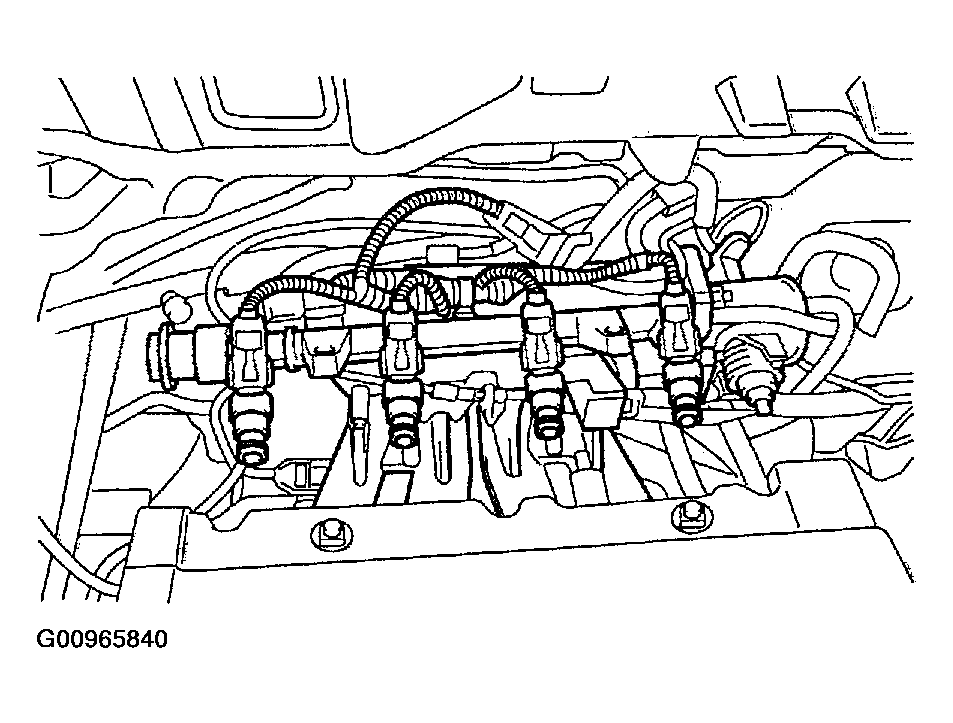

    Fig 1: View Of Fuel Delivery Pipe
    G00965840Courtesy of HYUNDAI MOTOR CO.
  4. Connect the fuel injector harness connector.
  5. Install the PCV hose and brake booster vacuum hose.
  6. Install the intake air hose to the throttle body.
  7. Install the accelerator cable.
  8. Connect the ISA and TPS wire harness connector.
