Fly Wheel: Components

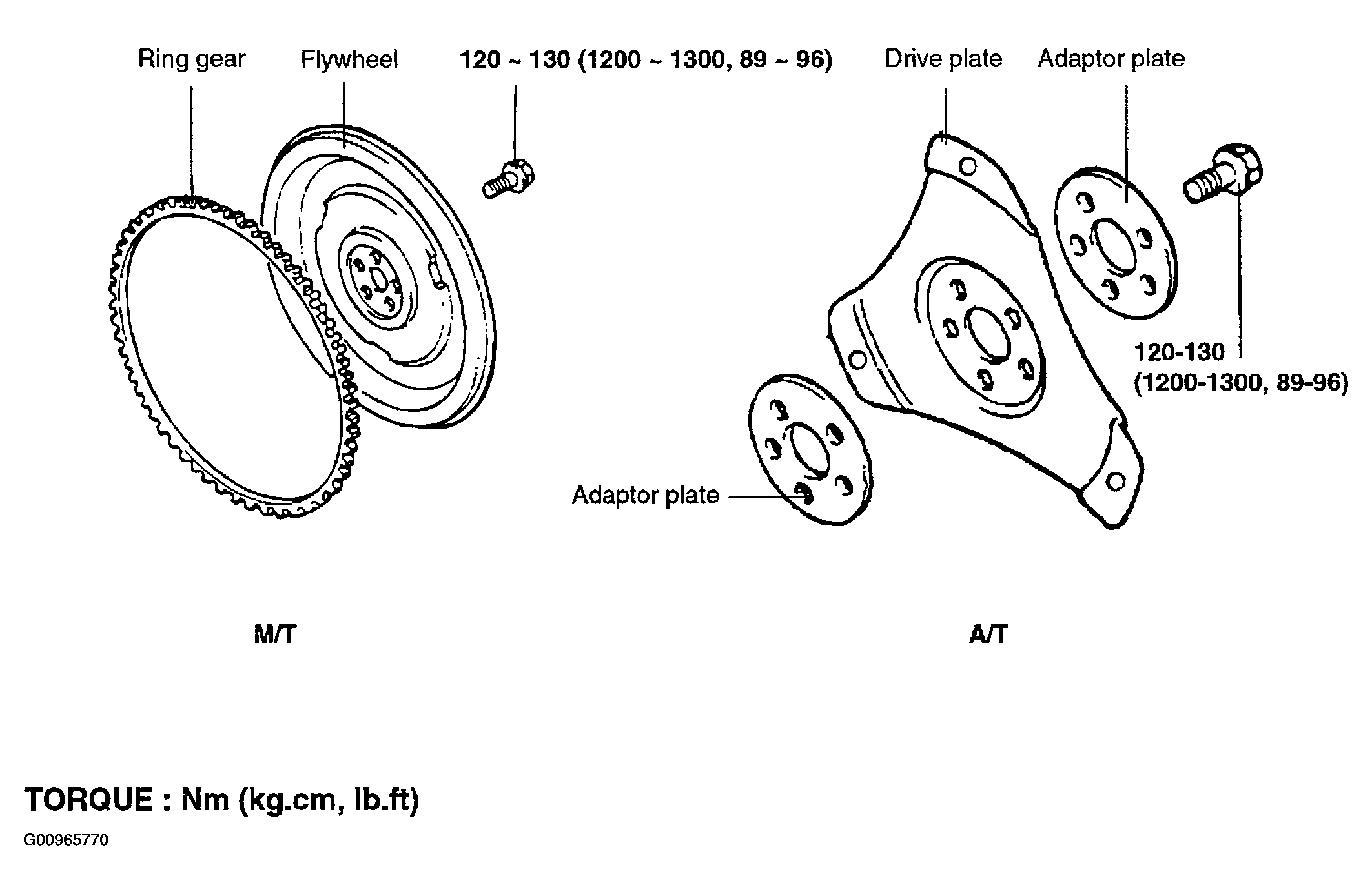

Fig 1: Fly Wheel & Drive Plate Components

G00965770

Courtesy of HYUNDAI MOTOR CO.

M/T: Manual Transmission Vehicles

A/T: Automatic Transmission Vehicles
