Special Tools

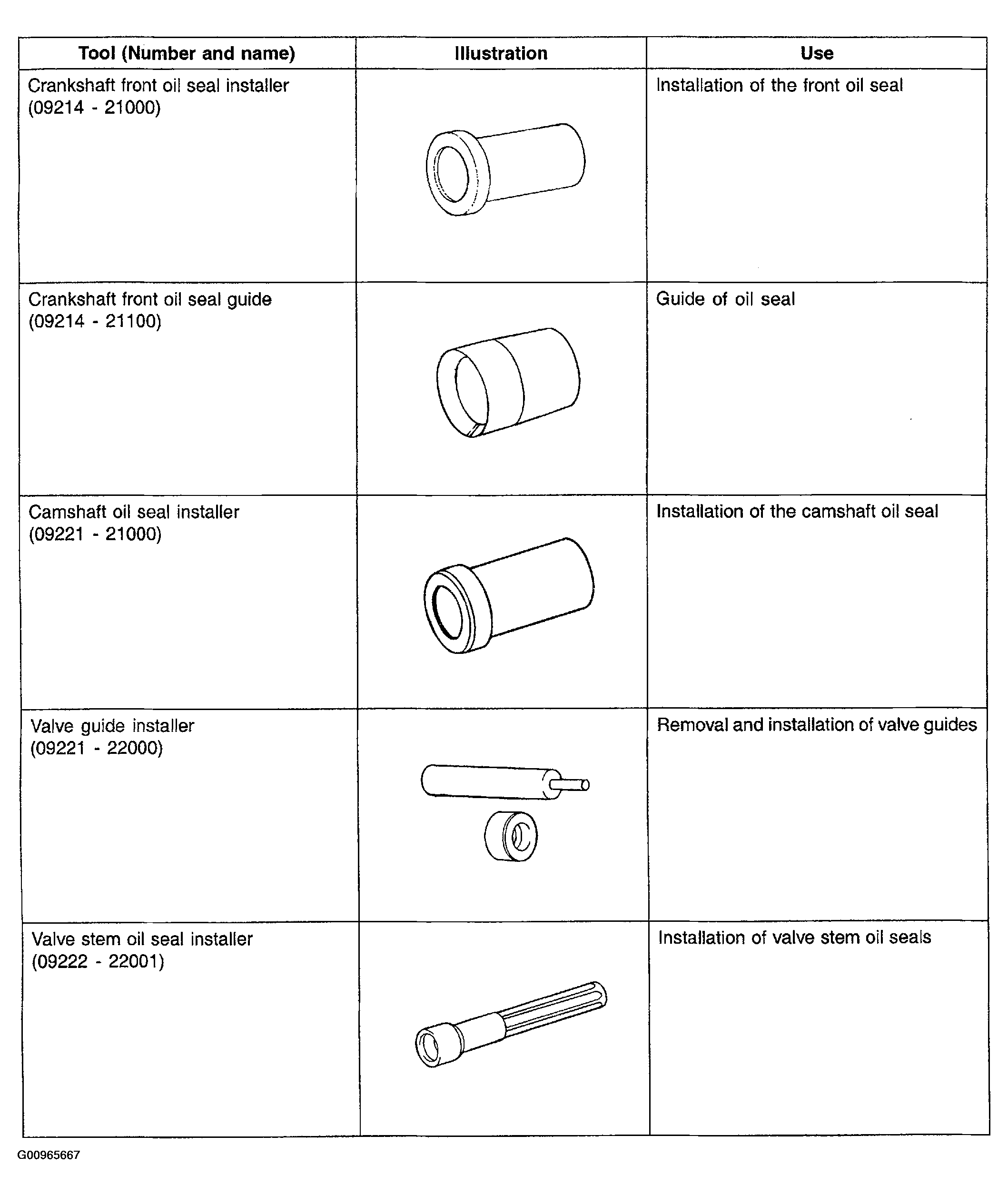

Fig 1: Identifying Special Tools (1 Of 2)

G00965667

Courtesy of HYUNDAI MOTOR CO.

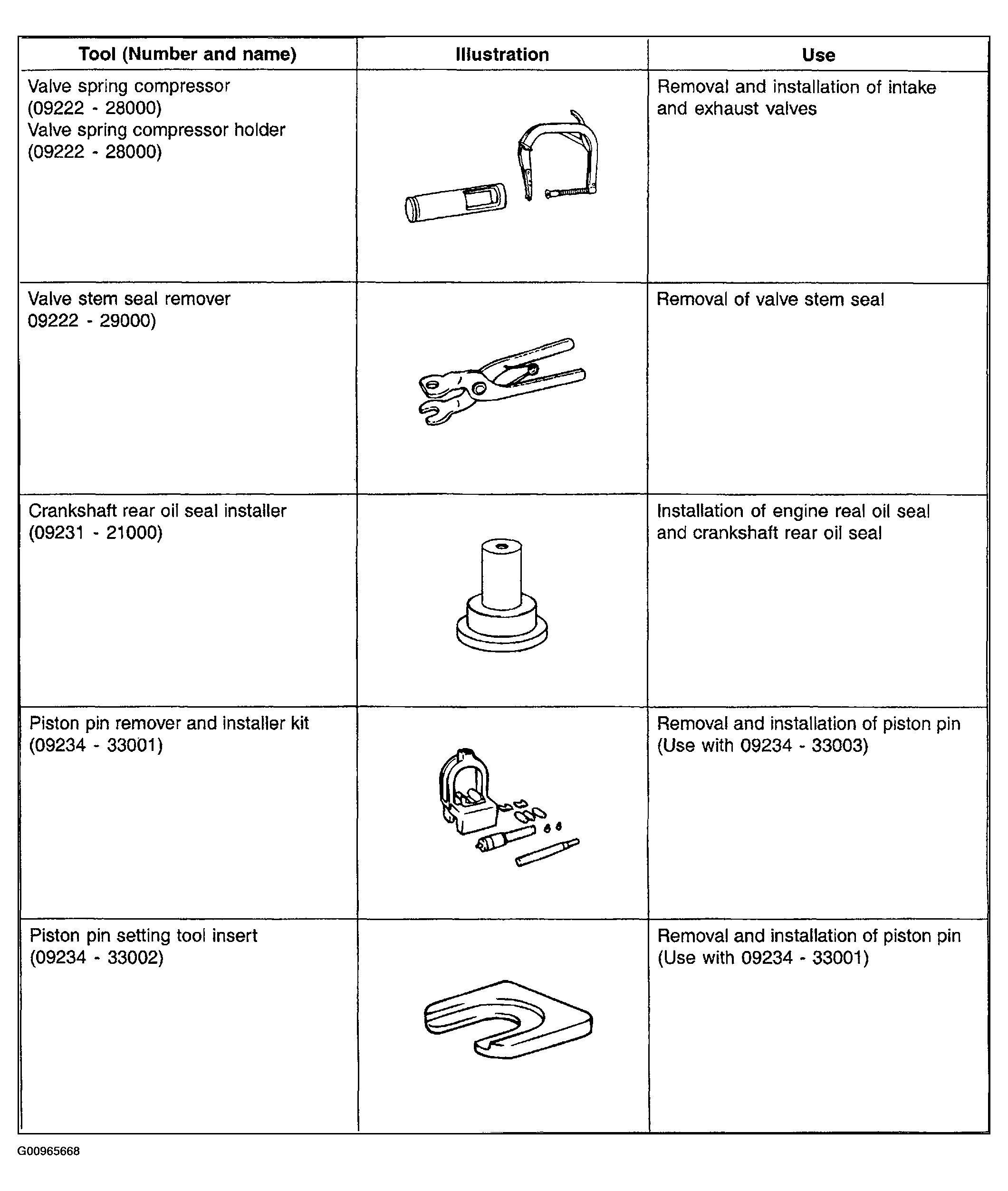

Fig 2: Identifying Special Tools (2 Of 2)

G00965668

Courtesy of HYUNDAI MOTOR CO.
