Cooling System: Radiator: Disassembly

  1. Disconnect the radiator fan motor connector.

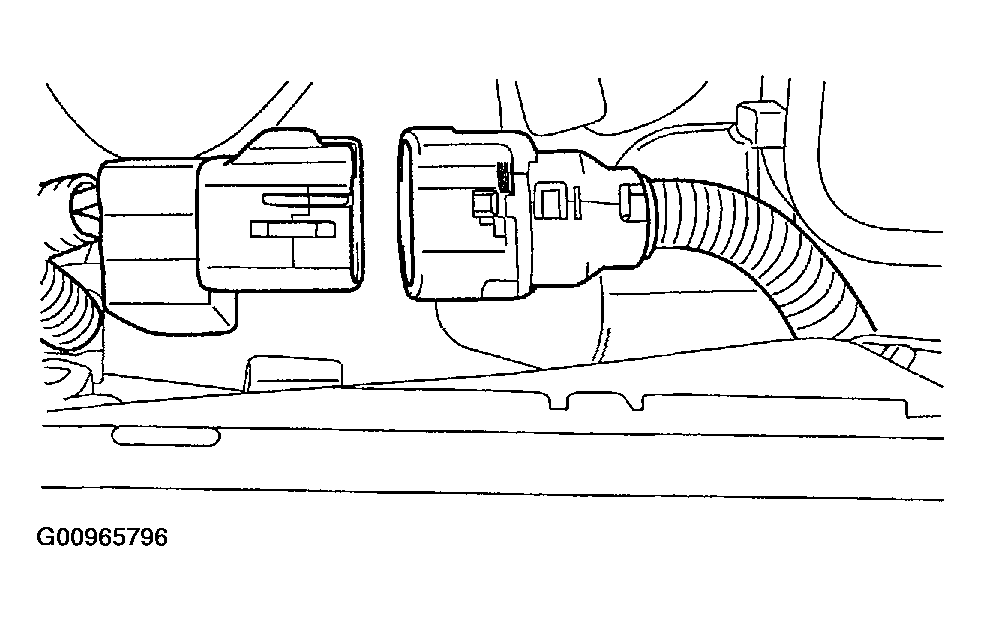

    Fig 1: Identifying Radiator Fan Motor Connector
    G00965796Courtesy of HYUNDAI MOTOR CO.
  2. Set the temperature of the heater control to the hot position.
  3. Loosen the radiator drain plug to drain coolant.

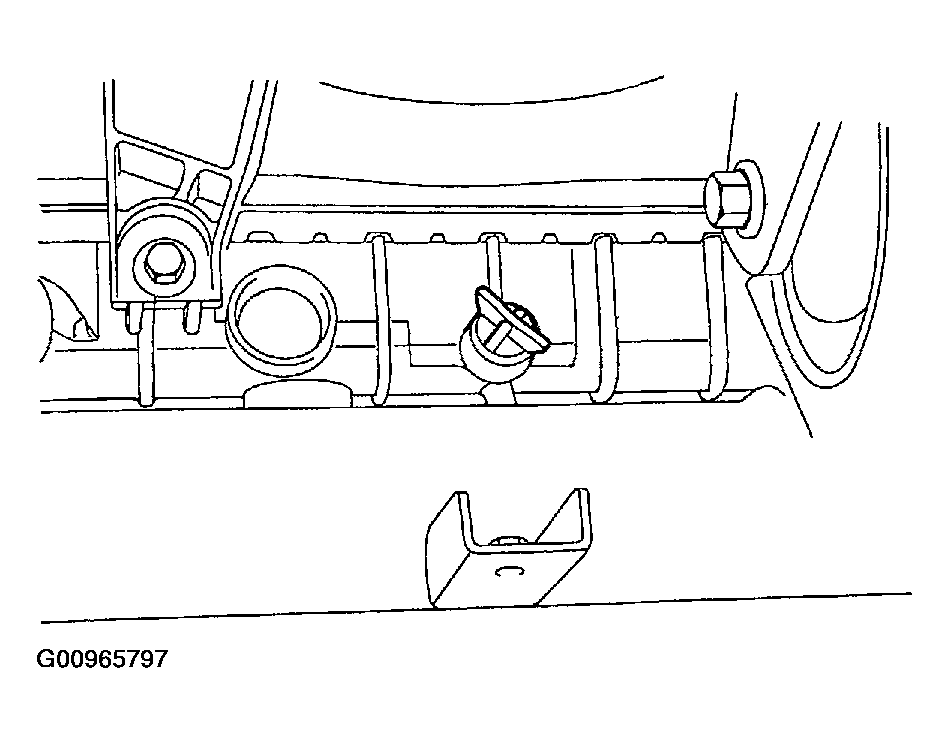

    Fig 2: Identifying Radiator Drain Plug
    G00965797Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the upper and lower hose and overflow tube.
  5. For vehicles with automatic transmission, disconnect the oil cooler hoses from the automatic transmission.

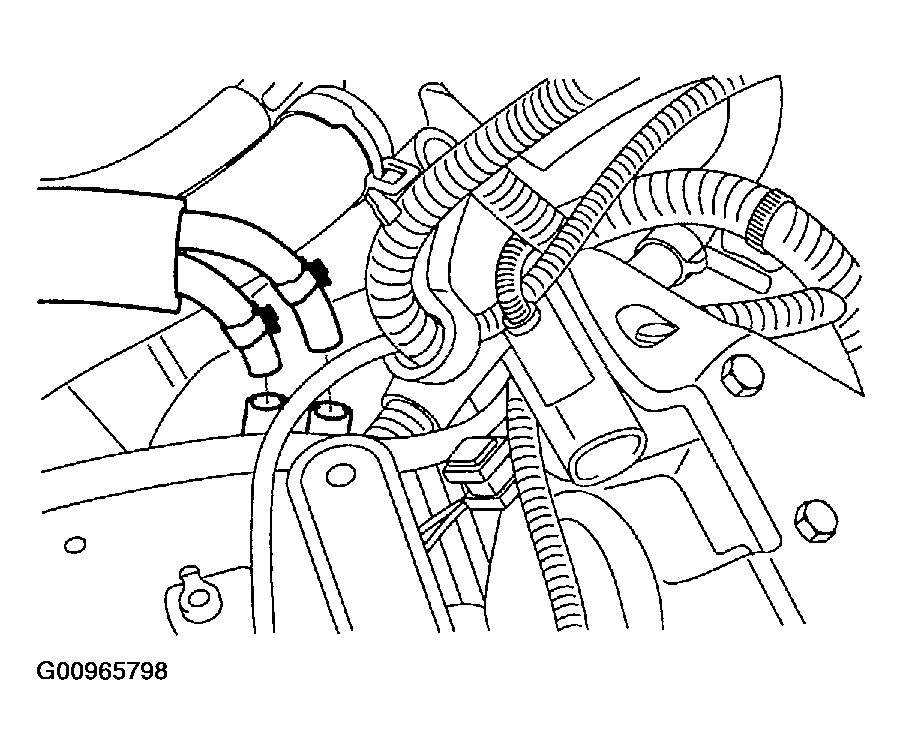

    Fig 3: Disconnecting Automatic Transaxle Oil Cooler Hoses
    G00965798Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Plug the ends of the oil cooler hoses and the automatic transmission fittings to prevent transmission fluid from spilling out and foreign material from entering
  6. Remove the radiator mounting bolts.

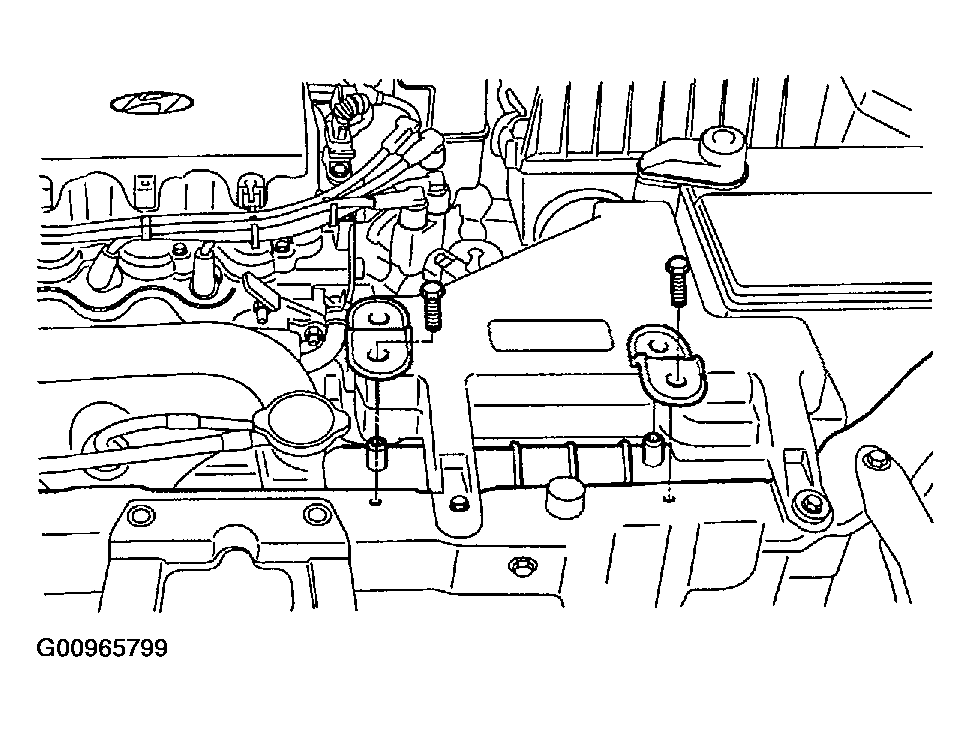

    Fig 4: Removing Radiator Mounting Bolts
    G00965799Courtesy of HYUNDAI MOTOR CO.
  7. Remove the radiator together with the fan motor.
  8. Remove the fan motor from the radiator.
