Dash Fuse Box

NOTE: Dash fuse box is located under driver's side of instrument panel. See Fig 1 .

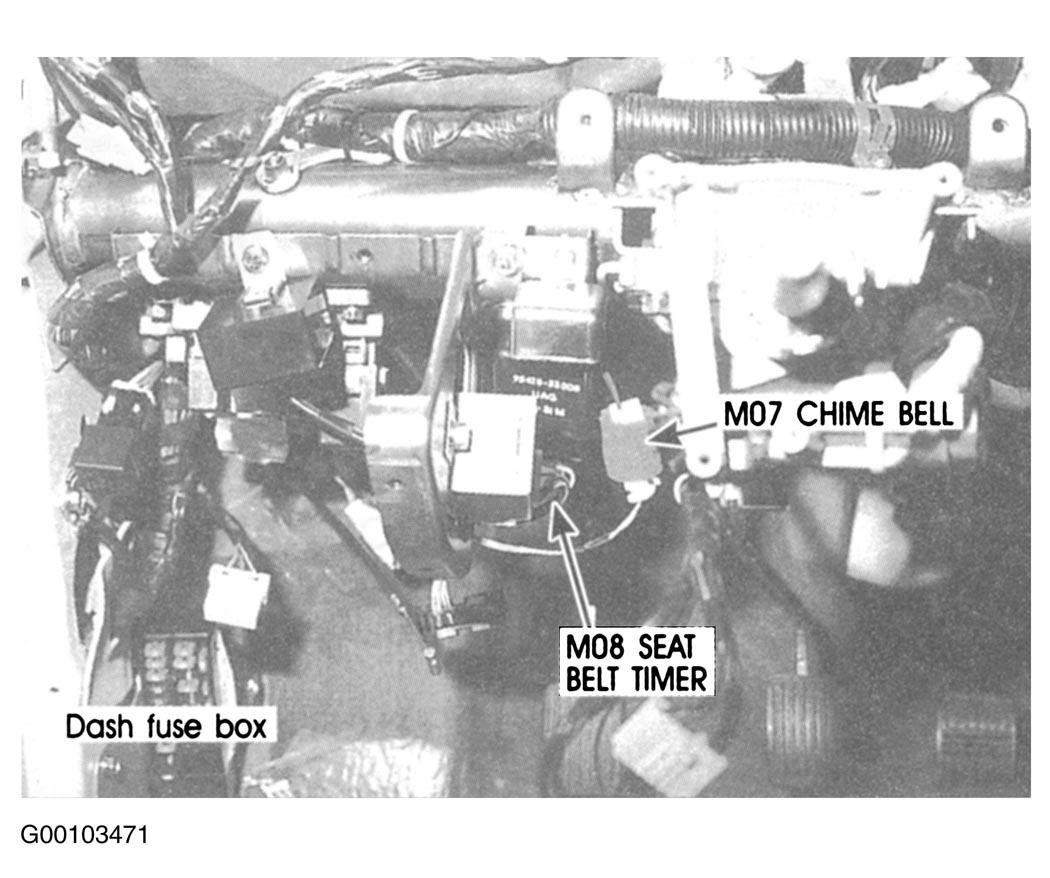

Fig 1: Locating Dash Fuse Box
G00103471Courtesy of HYUNDAI MOTOR CO.

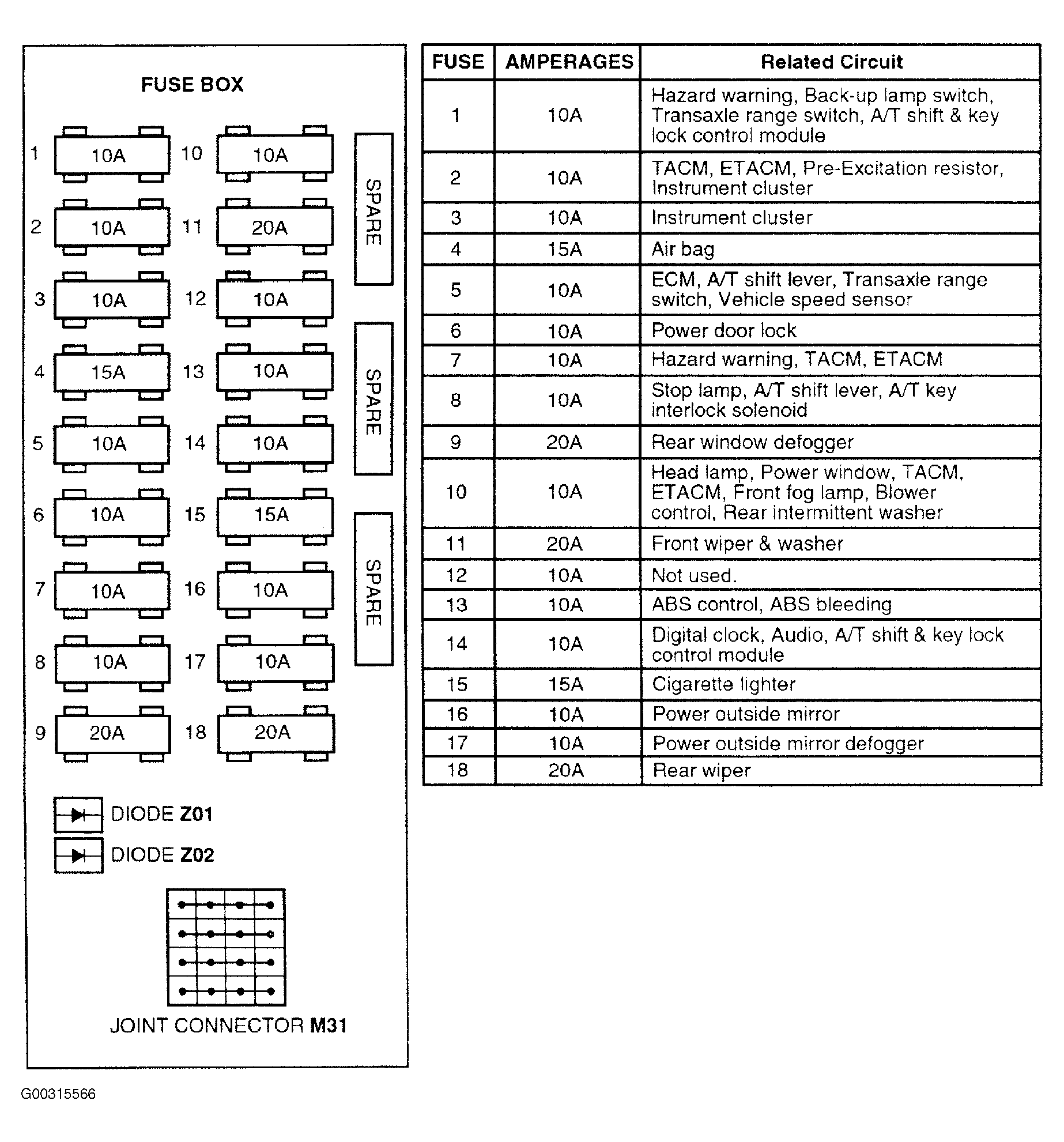

Fig 2: Identifying Dash Fuse Box Components
G00315566Courtesy of HYUNDAI MOTOR CO.
