Power Window

  1. No windows operate from the main switch on the driver's door.

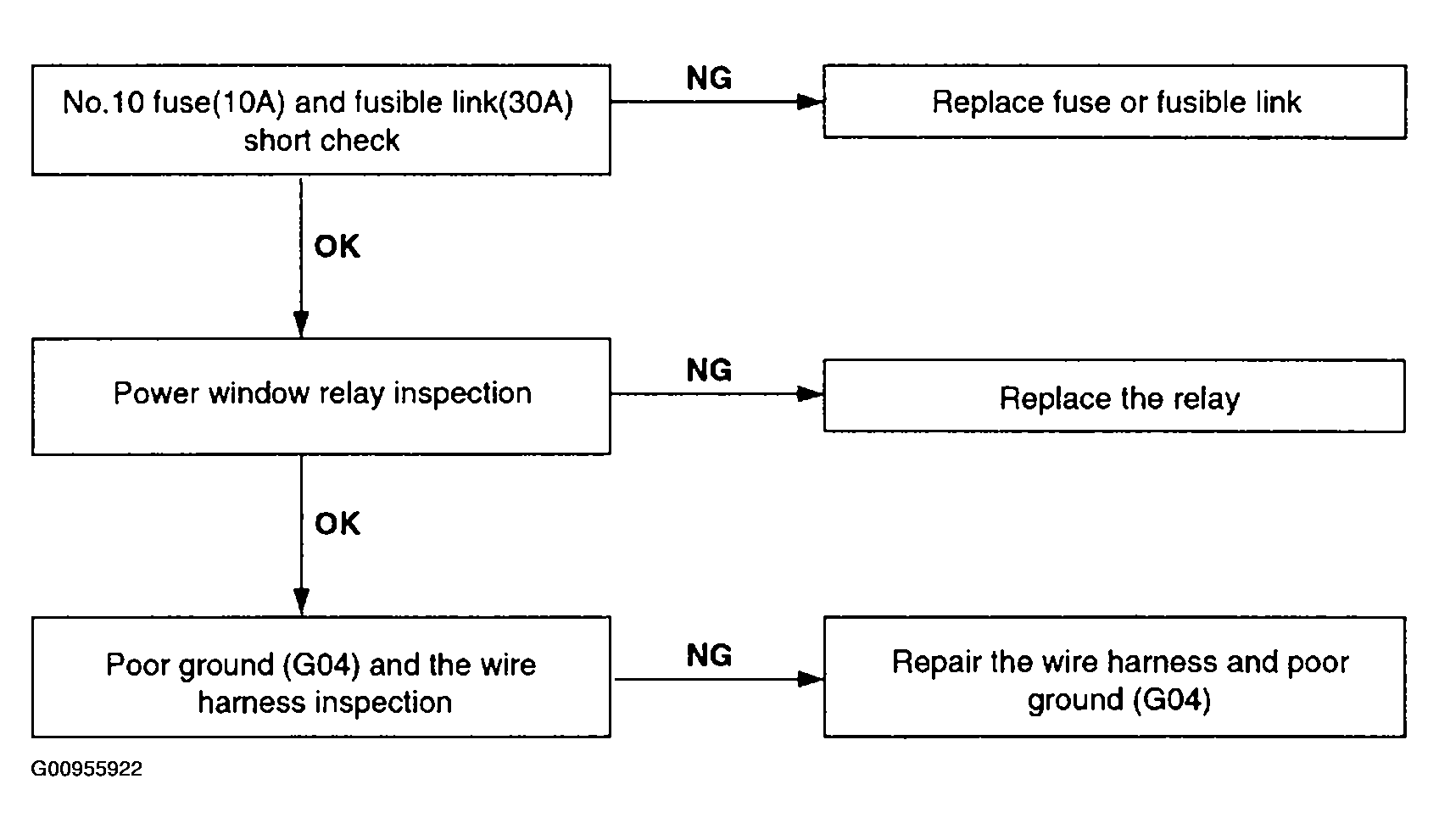

    Fig 1: No Windows Operate From The Main Switch On Driver's Door Flow Chart
    G00955922Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

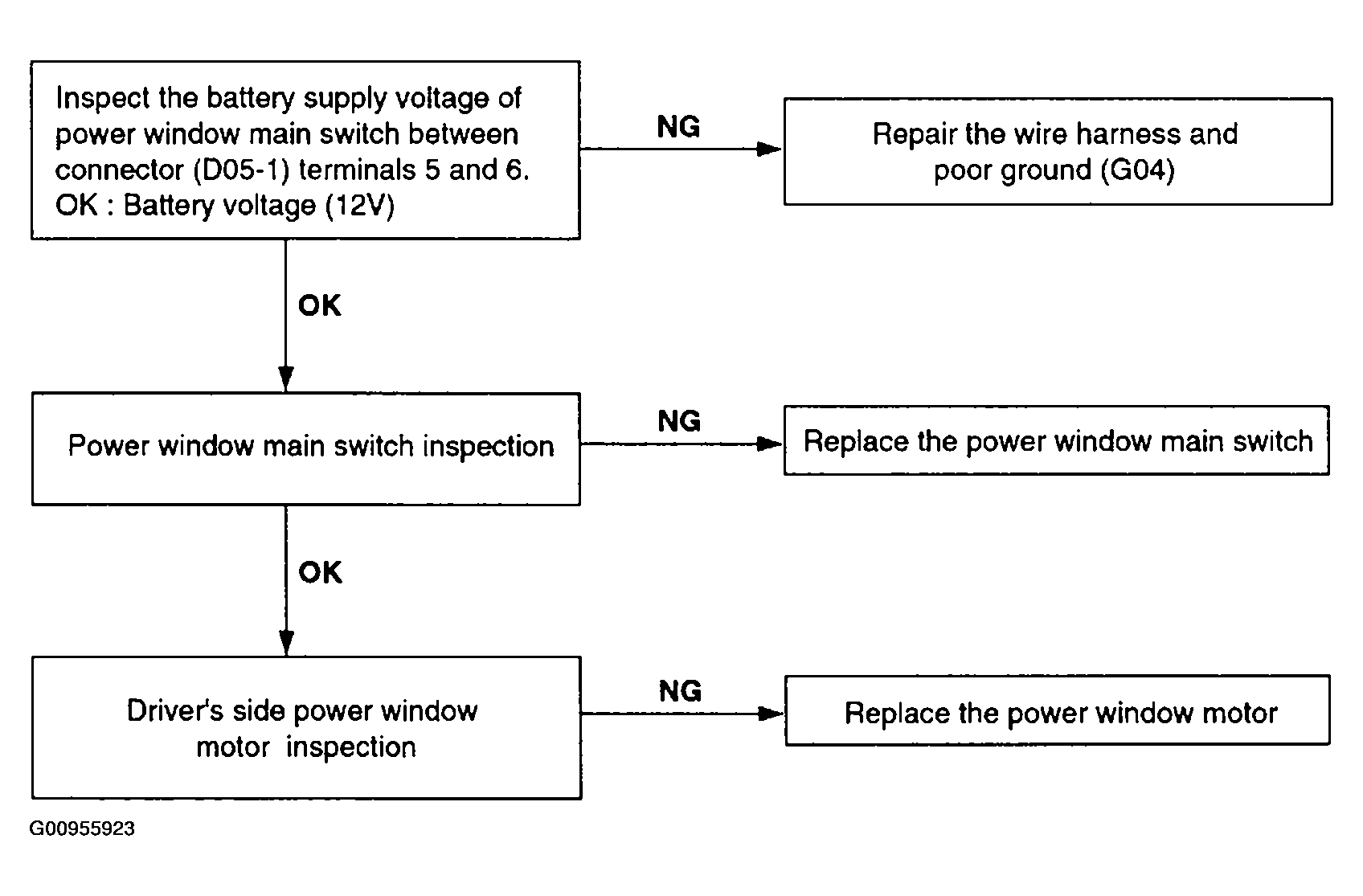

    Fig 2: Driver's Side Window Does Not Operate Flow Chart
    G00955923Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

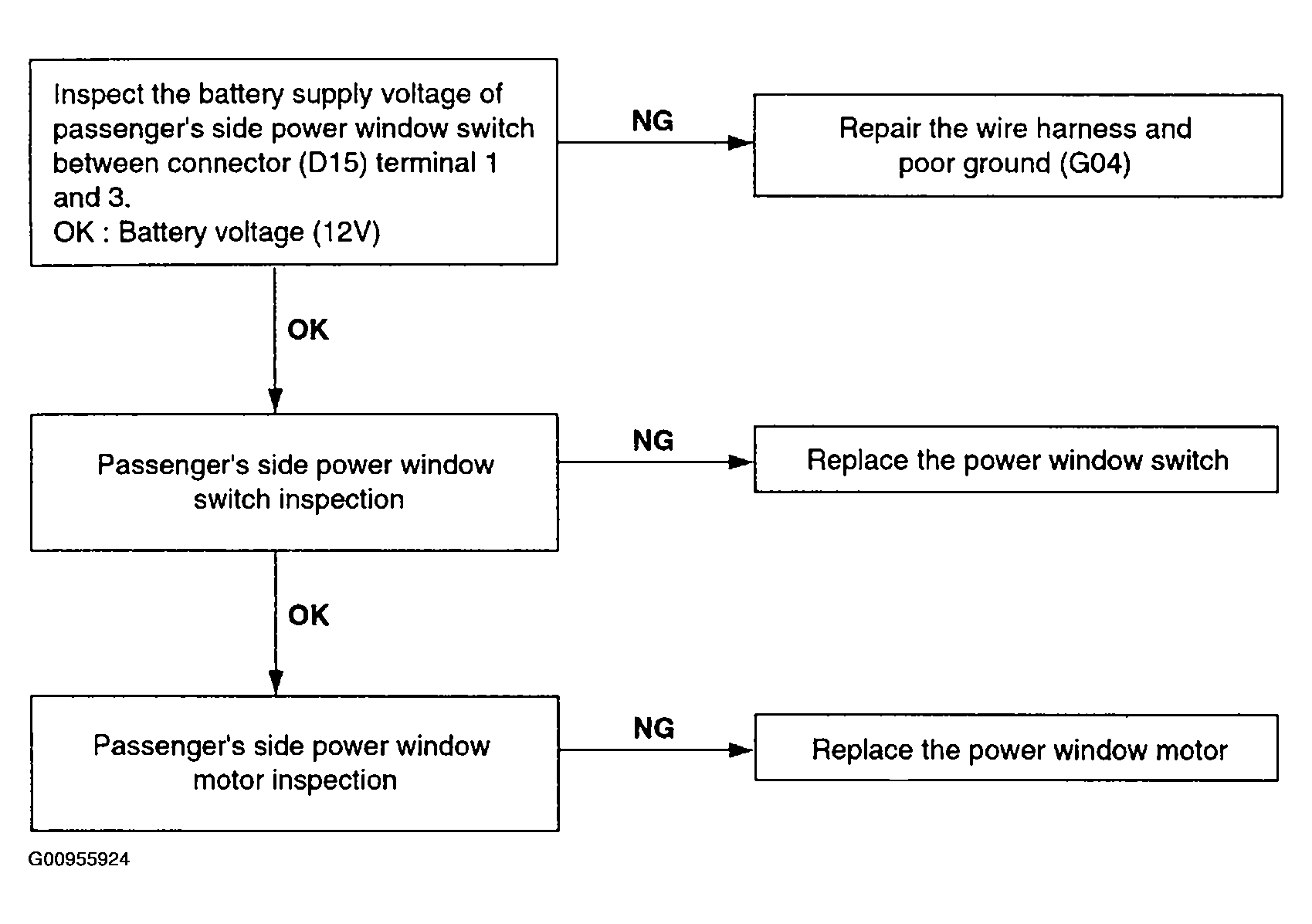

Fig 3: Passenger's Side Window Does Not Operate Flow Chart
G00955924Courtesy of HYUNDAI MOTOR CO.
