Removal And Installation

Remove the trunk lid hinge mounting bolts and remove trunk lid.

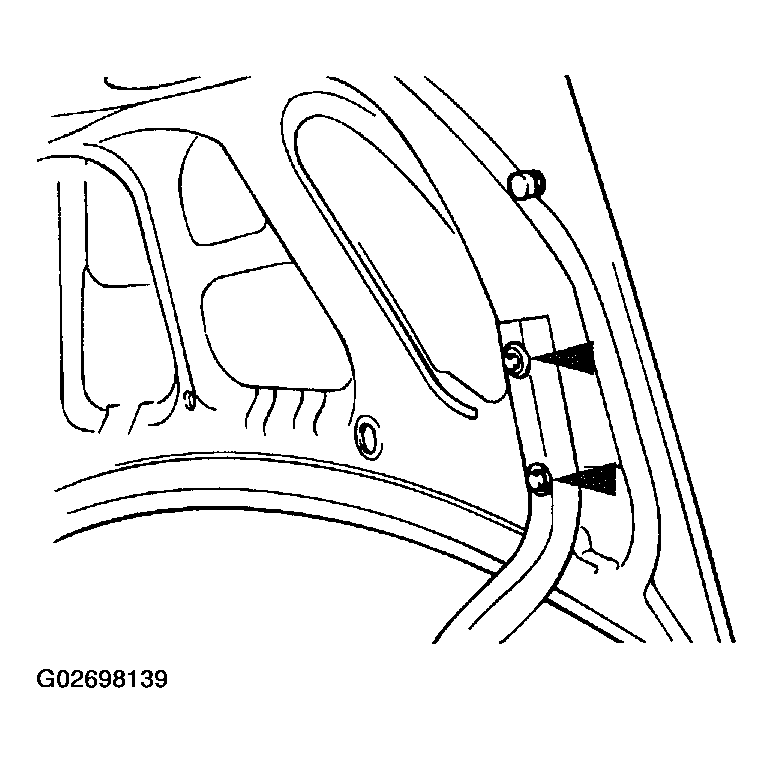

Fig 1: Removing Trunk Lid Hinge Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the torsion bar by using the torsion bar wrench (09861-22000) as shown in the illustration.

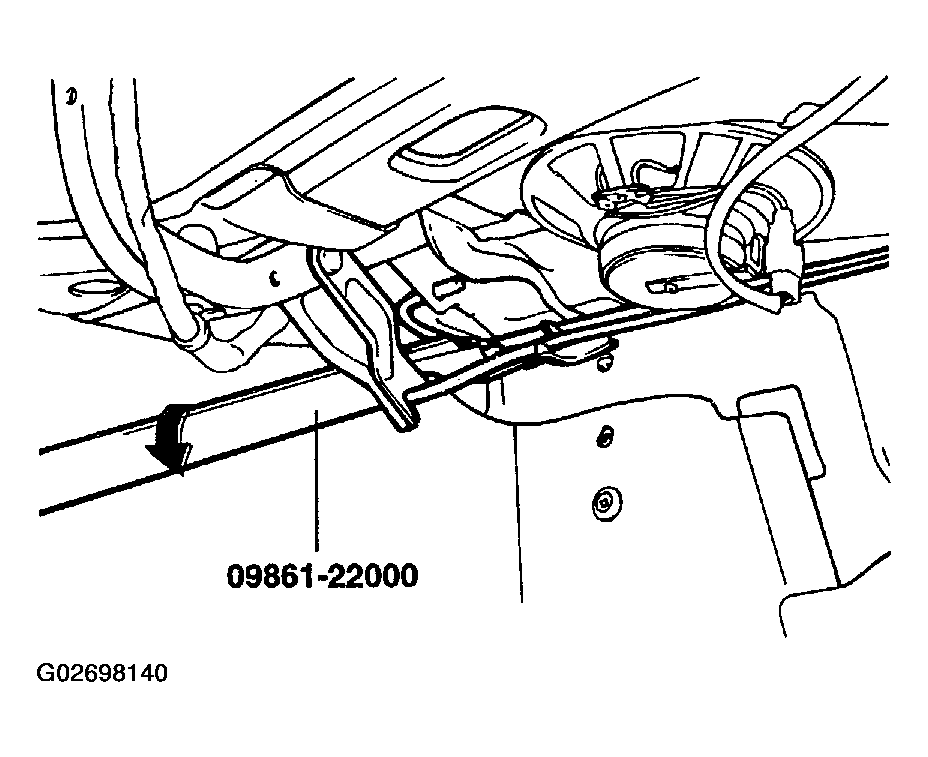

Fig 2: Removing Torsion Bars With Torsion Bar Wrench (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

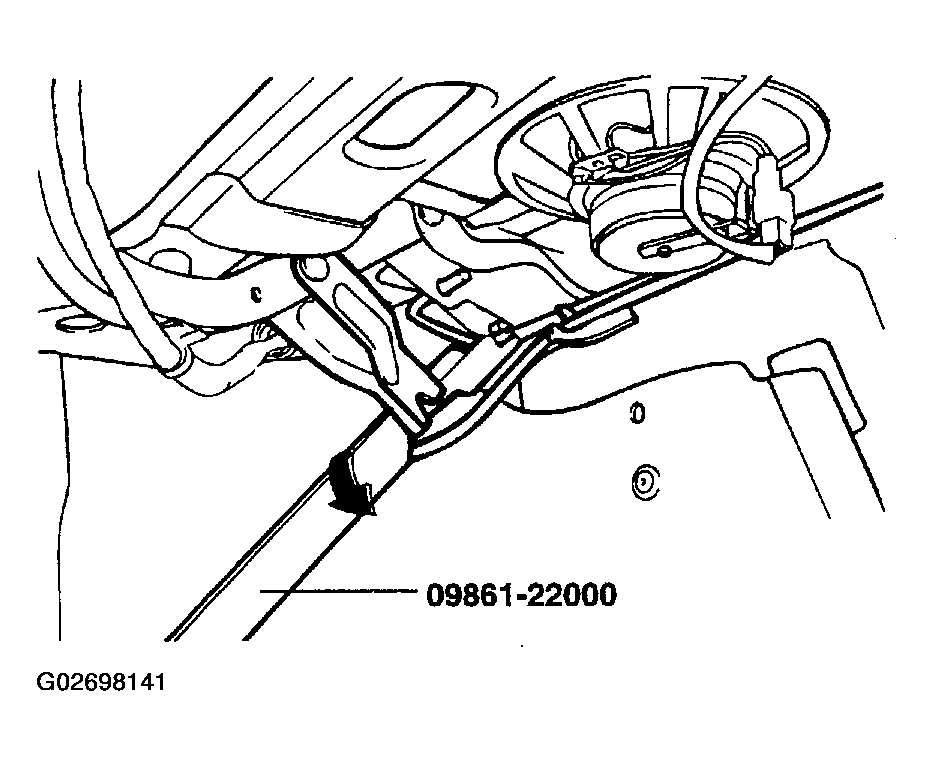

Fig 3: Removing Torsion Bars With Torsion Bar Wrench (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the trunk lid latch and trunk lid lock.

Fig 4: Removing Trunk Lid Latch & Trunk Lid Lock
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
