Trunk Lid: Adjustment

  1. Adjust the striker up, down, right or left until the trunk lid is flush with the rear edge of the body.
    Fig 1: Adjusting Trunk Lid Striker
    G02698143Courtesy of HYUNDAI MOTOR CO.
  2. Adjust the trunk hinges up, down, right or left until the gap is flush between the lid and body.

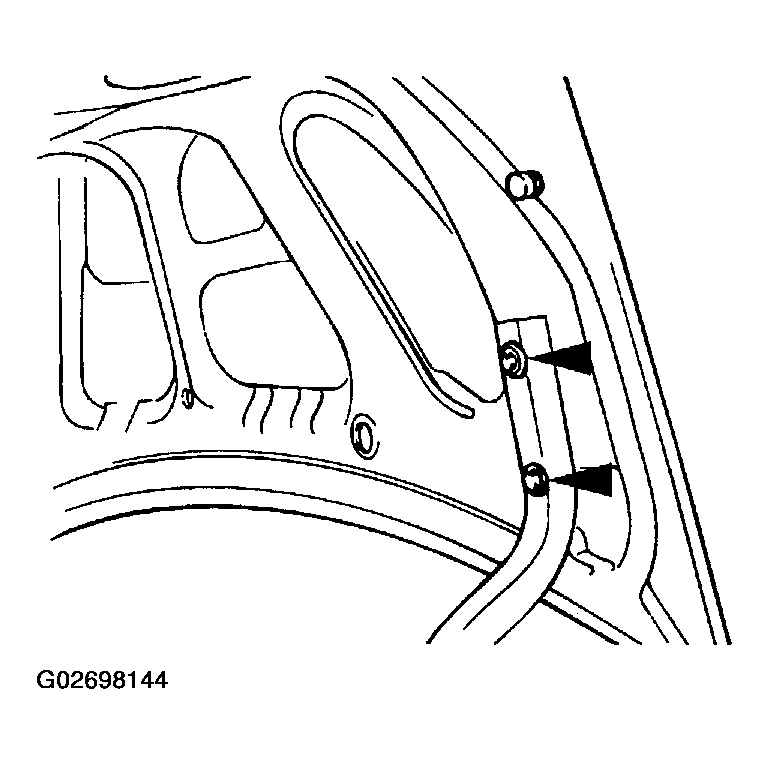

    Fig 2: Adjusting Trunk Lid Hinges
    G02698144Courtesy of HYUNDAI MOTOR CO.
  3. Turn the lid bumpers either clockwise or counterclockwise to adjust the height of the trunk lid.

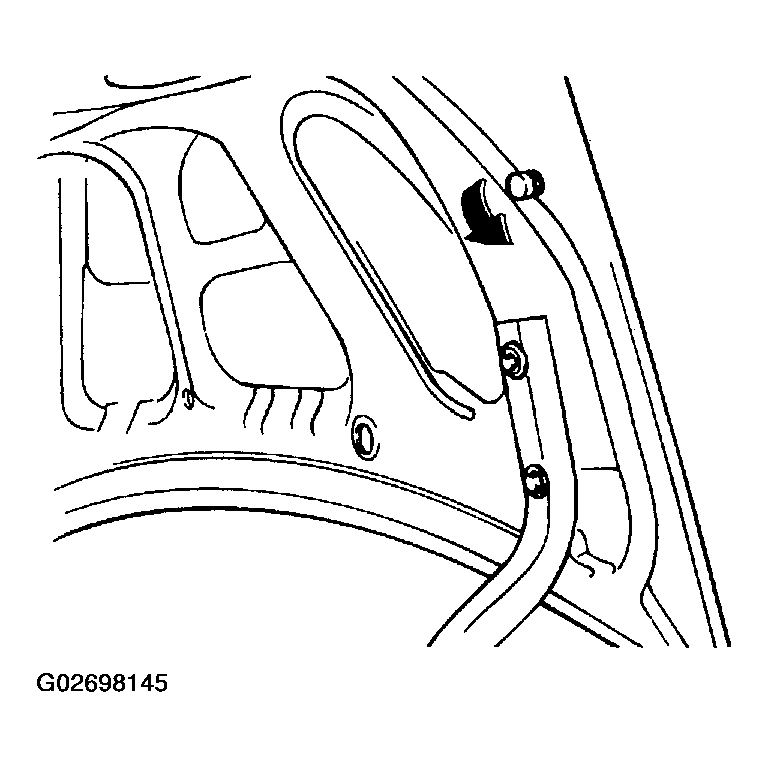

    Fig 3: Adjusting Height Of Trunk Lid
    G02698145Courtesy of HYUNDAI MOTOR CO.
